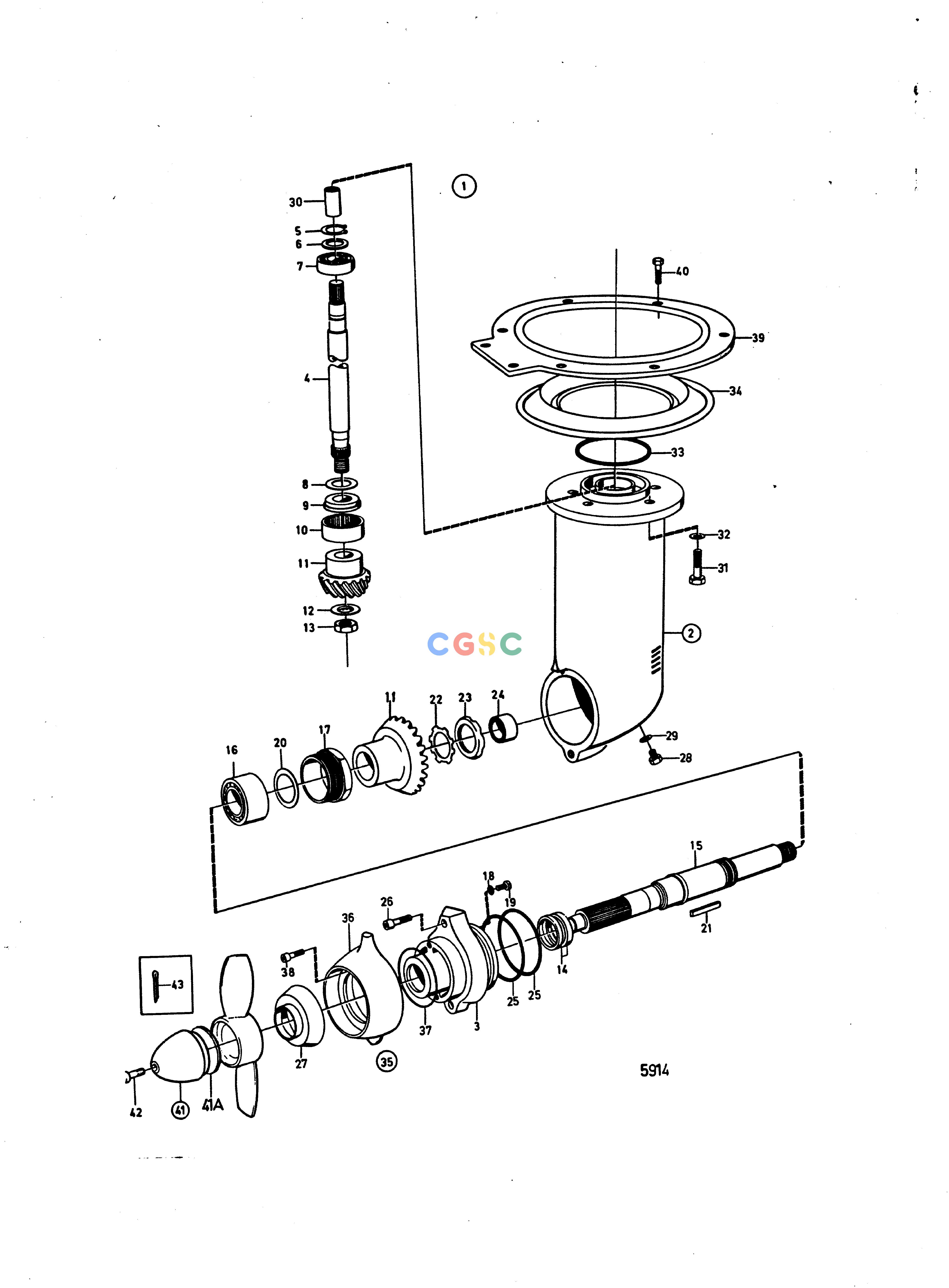

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsLower Gear Unit Sail Boat Drive Unit 110SEPC Volvo Penta Parts catalog

广数供应链运营团队, 15 02月, 2025，浏览： 525 次

Pos.	Part No	Qty	Parts name	Comments
1.	850067	[1]	Lower gear	Ratio 1:66:1
2.	850068	[1]	Gear housing
3.	850070	[1]	Bearing housing
4.	850071	[1]	Countershaft
5.	914459	[1]	Snap ring
6.	26413	[1]	Shim	TH=0.1mm
6.	26411	[1]	Shim	TH=1.0mm
7.	18559	[1]	Ball bearing
8.	804303	[1]	Adjusting washer	TH=0,05mm
8.	34615	[1]	Shim	TH=0,10mm
9.	806620	[1]	Roller bearing
10.	181288	[1]	Needle bearing
11.	850305	[1]	Gear
12.	382005	[1]	Disc spring
13.	946363	[1]	Lock nut
14.	897426	[2]	Sealing ring
15.	850072	[1]	Propeller shaft
16.	181286	[1]	Ball bearing
17.	804217	[1]	Nut
18.	955948	[1]	Toothed washer
19.	956092	[1]	Cross recessed screw
20.	34615	[1]	Shim	TH=0,10mm
20.	804303	[1]	Adjusting washer	TH=0,05mm
21.	909306	[1]	Flat key
22.	907024	[1]	Lock washer
23.	906634	[1]	Round nut
24.	181413	[1]	Needle bearing
25.	925257	[2]	O-ring
26.	963706	[2]	Hex. socket screw
27.	832965	[1]	Ring
28.	804262	[1]	Plug
29.	804261	[1]	Gasket
30.	850304	[1]	Splined sleeve
31.	963711	[6]	Hex. socket screw
32.	942551	[6]	Washer
33.	960238	[1]	O-ring
34.	21389074	[1]	Rubber bellows
35.	875812	[1]	Zinc ring kit
36.
37.	851287	[1]	O-ring
38.	963695	[4]	Hex. socket screw
39.	852734	[1]	Clamping ring	See group 4A
40.	946730	[6]	Hexagon screw	(955297)
41.	850396	[1]	Propeller cone kit	See group 4A
41A.	850888	[1]	Plastic washer	See group 4A
42.	851773	[1]	Screw	See group 4A
43.	949807	[1]	Split pin	Included in folding propeller., (948585)
