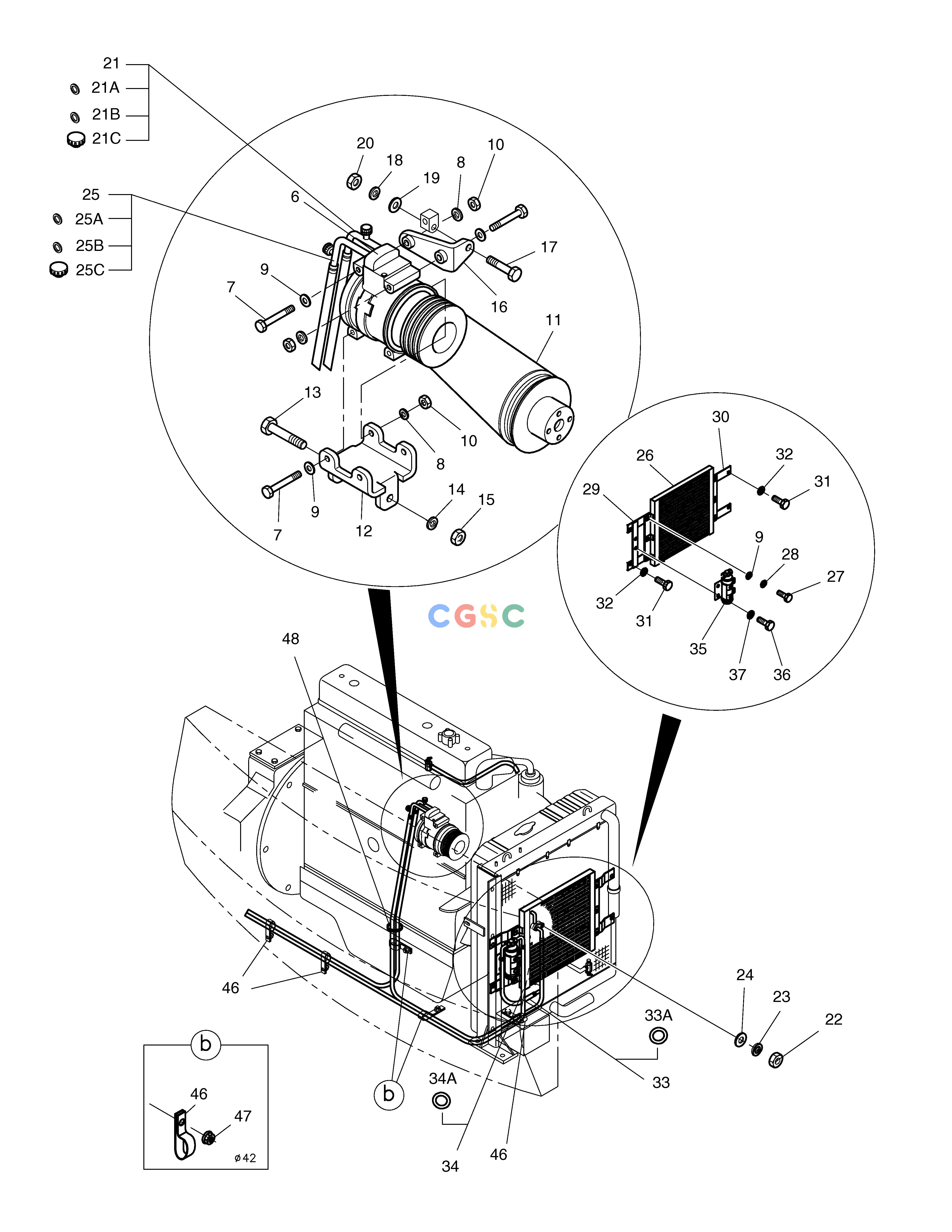

斗山零件查询AIRCONDITIONER(2) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
661 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2920-1086
|
[-] |
COOLER & HEATER ASS'Y
|
|
| 10. |
S4012533
|
[4] |
NUT
|
|
| 11. |
2106-1019D2
|
[1] |
V-BELT
|
|
| 12. |
2197-2078A
|
[1] |
BRACKET;COMPRESSOR(LO)
|
|
| 13. |
S0560353
|
[1] |
BOLT M10X1.5X125
|
S0560361
|
| 13. |
S0560361
|
[1] |
BOLT M10X1.5X150
|
|
| 14. |
S5102603
|
[1] |
. WASHER
|
|
| 15. |
S4012633
|
[1] |
NUT
|
|
| 16. |
2197-2079
|
[1] |
BRACKET;CONDENSER(UP)
|
|
| 17. |
S0560853
|
[1] |
BOLT M12X1.75X55
|
|
| 18. |
S5102703
|
[1] |
WASHER
|
|
| 19. |
2114-1058D54
|
[1] |
WASHER
|
|
| 20. |
S4012733
|
[1] |
NUT
|
|
| 21. |
2185-1708
|
[1] |
HOSE;DISCHARGE 2300L
|
|
| 21. |
2185-1708A
|
[1] |
HOSE;DISCHARGE 2300L
|
|
| 21A. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 21B. |
2180-6089
|
[1] |
O-RING(COND)
|
|
| 21C. |
1.161-00018
|
[1] |
CAP;CHECK PORT(H)
|
|
| 22. |
S4012333
|
[1] |
NUT
|
|
| 23. |
S5102303
|
[1] |
. WASHER
|
|
| 24. |
S5010313
|
[1] |
WASHER
|
|
| 25. |
2185-1709
|
[1] |
HOSE;SUCTION 4600L
|
|
| 25. |
2185-1709A
|
[1] |
HOSE;SUCTION 4550L
|
|
| 25A. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 25B. |
2180-6087
|
[1] |
O-RING(EVA)
|
|
| 25C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 26. |
2520-6007
|
[1] |
CONDENSER
|
2520-6007A
|
| 26. |
2520-6007A
|
[1] |
CONDENSER
|
2520-6007B
|
| 26. |
2520-6007B
|
[1] |
CONDENSER ASS'Y
|
2520-6007C
|
| 26. |
2520-6007C
|
[1] |
CONDENSER ASS'Y
|
|
| 27. |
S0504853
|
[6] |
BOLT M6X1.0X20
|
|
| 27. |
S0556053
|
[6] |
BOLT M8X1.25X35
|
|
| 28. |
S5102303
|
[6] |
. WASHER
|
|
| 28. |
S5102503
|
[6] |
. WASHER
|
|
| 29. |
2197-1983
|
[1] |
BRACKET;CONDENSER(LH)
|
|
| 29. |
2197-1983B
|
[1] |
BRACKET;CONDENSER(LH)
|
|
| 30. |
2197-2142
|
[1] |
BRACKET;CONDENSER(RH)
|
|
| 30. |
2197-2142B
|
[1] |
BRACKET;CONDENSER(RH)
|
|
| 31. |
S0509053
|
[4] |
. BOLT
|
|
| 32. |
S5102503
|
[4] |
. WASHER
|
|
| 33. |
2185-1736D1
|
[1] |
HOSE;LIQUID(1) 430L
|
|
| 33A. |
2180-6090
|
[2] |
O-RING
|
|
| 34. |
2185-1698D2
|
[1] |
HOSE;LIQUID(2) 5300L
|
|
| 34A. |
2180-6090
|
[2] |
O-RING
|
|
| 35. |
2204-6039
|
[1] |
RECEIVER DRIER
|
2204-6039A
|
| 35. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
|
| 36. |
S0508653
|
[2] |
BOLT
|
|
| 37. |
S5102503
|
[2] |
. WASHER
|
|
| 46. |
2124-1509D6
|
[5] |
CLIP D42/M8
|
|
| 47. |
2121-1305
|
[2] |
NUT
|
|
| 48. |
2124-1622D3
|
[5] |
CLIP;BAND 280L
|
|
| 6. |
2208-6013B
|
[1] |
COMPRESSOR
|
|
| 7. |
S0557453
|
[4] |
BOLT M8X1.25X105
|
|
| 8. |
S5102503
|
[4] |
. WASHER
|
|
| 9. |
S5010513
|
[4] |
WASHER
|
|
| 9. |
S5010513
|
[10] |
WASHER
|
|
