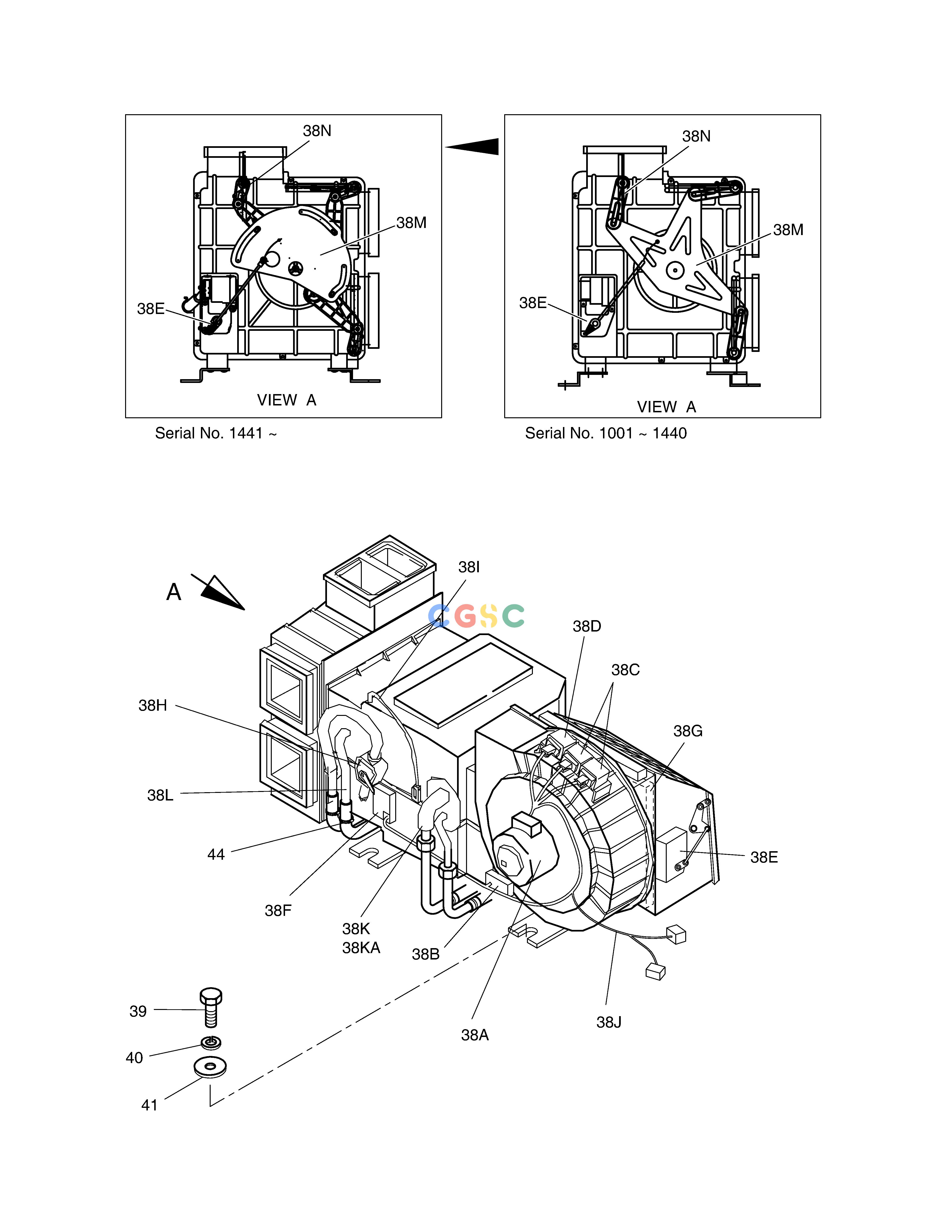

斗山零件查询AIRCONDITIONER(3)-AIRCON UNIT SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
450 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2920-1086
|
[-] |
COOLER & HEATER ASS'Y
|
|
| 38. |
2920-9044B
|
[1] |
AIRCON UNIT
|
2920-9044C
|
| 38. |
2920-9044C
|
[1] |
AIRCON UNIT
|
2920-9044E
|
| 38. |
2920-9044E
|
[1] |
AIRCON UNIT
|
2920-9044G
|
| 38. |
2920-9044G
|
[1] |
UNIT;AIRCON
|
|
| 38A. |
2538-6015
|
[1] |
MOTOR;BLOWER 24V
|
|
| 38B. |
2545-6018
|
[1] |
RESISTOR;BLOWER
|
|
| 38B. |
545-00003
|
[1] |
RESISTOR;BLOWER
|
|
| 38C. |
2544-6023
|
[2] |
RELAY 10A
|
|
| 38D. |
2544-6024
|
[1] |
RELAY 20A
|
|
| 38E. |
2538-6016
|
[2] |
MOTOR;INTAKE 24V
|
|
| 38F. |
2538-6017
|
[1] |
MOTOR;MIX 12V
|
|
| 38G. |
2471-6050
|
[1] |
FILTER;AIRCON GSB-30NA
|
|
| 38G. |
2471-6050A
|
[1] |
FILTER;AIRCON
|
|
| 38H. |
2426-6048
|
[1] |
VALVE;STEM
|
|
| 38I. |
2547-6033
|
[1] |
SENSOR;TEMPERATURE
|
|
| 38J. |
2530-6005
|
[1] |
HARNESS;AIRCON UNIT
|
2530-6005A
|
| 38J. |
2530-6005A
|
[1] |
HARNESS;AIRCON UNIT
|
|
| 38K. |
2920-6111
|
[1] |
EVAPORATOR
|
|
| 38KA. |
410116-00098
|
[1] |
VALVE
|
|
| 38L. |
2920-6112
|
[1] |
HEATER CORE
|
|
| 38M. |
2431-6002
|
[1] |
LEVER;MAIN
|
|
| 38M. |
133-00162
|
[1] |
LEVER;MAIN
|
|
| 38N. |
2431-6003
|
[3] |
LEVER;SUB
|
|
| 39. |
S0509053
|
[6] |
. BOLT
|
|
| 40. |
S5102503
|
[6] |
. WASHER
|
|
| 41. |
2114-1058D29
|
[6] |
WASHER
|
|
| 44. |
S8450016
|
[2] |
. CLAMP
|
|
