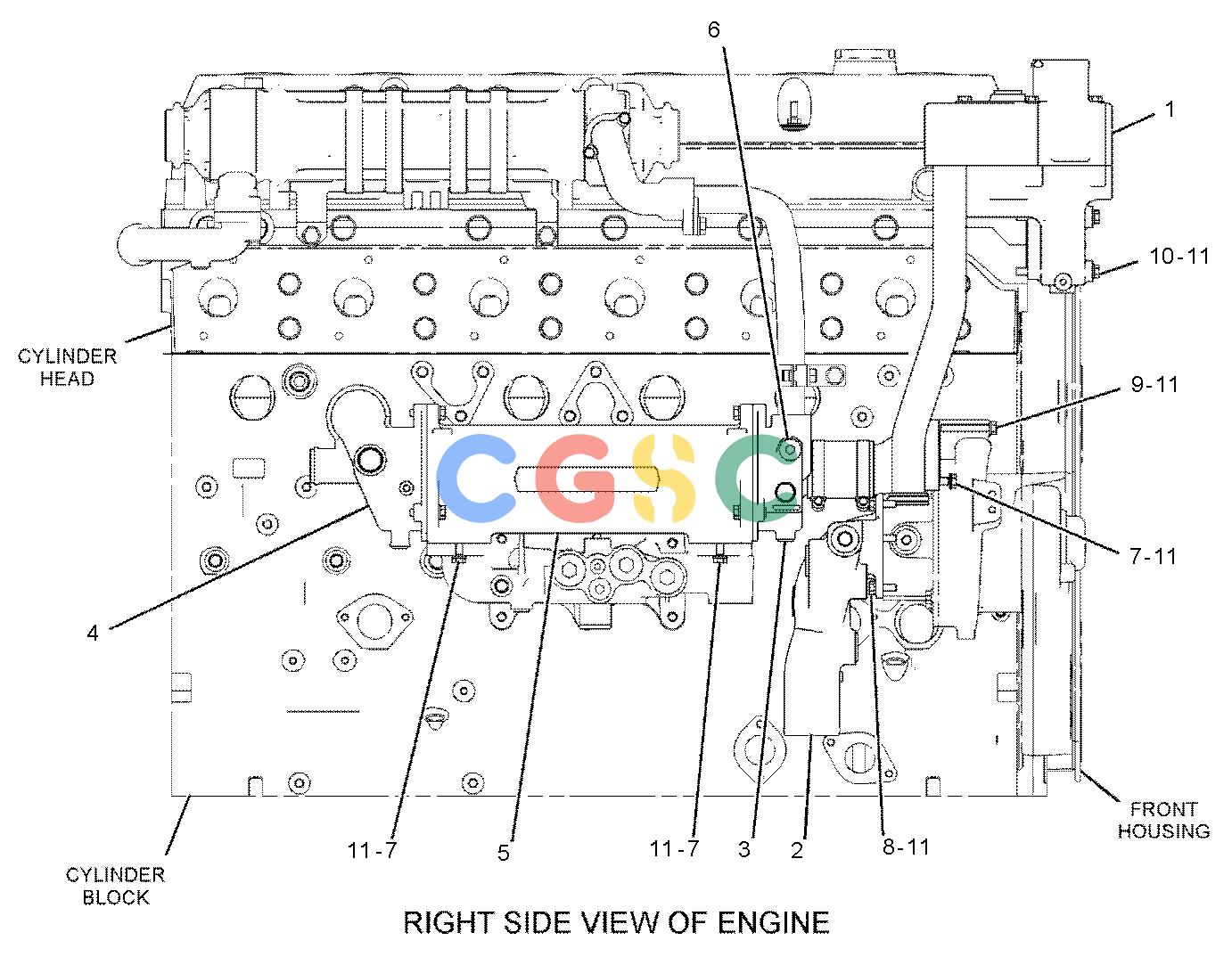

卡特零件查询（730） 379-2947: LINES GP-WATER
广数供应链运营团队, 15 02月, 2025，浏览：
656 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 343-7192Y | [1] | HOUSING & REGULATOR GP | |
| 2. | 347-0431Y | [1] | ELBOW GP-WATER | |
| 3. | 349-2641Y | [1] | PLUG GP-ENGINE OIL COOLER | |
| 4. | 379-2167Y | [1] | BONNET GP-OIL COOLER | |
| 5. | 384-9147Y | [1] | COOLER GP-ENGINE OIL | |
| 6. | 353-5125 | [1] | PLUG AS | |
| | 6V-3251 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 7. | 6V-2317M | [5] | BOLT(M8X1.25X30-MM) | |
| 8. | 6V-3940M | [3] | BOLT(M8X1.25X25-MM) | |
| 9. | 6V-5221M | [1] | BOLT(M8X1.25X80-MM) | |
| 10. | 8T-0292M | [4] | BOLT(M8X1.25X90-MM) | |
| 11. | 9M-1974 | [13] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
