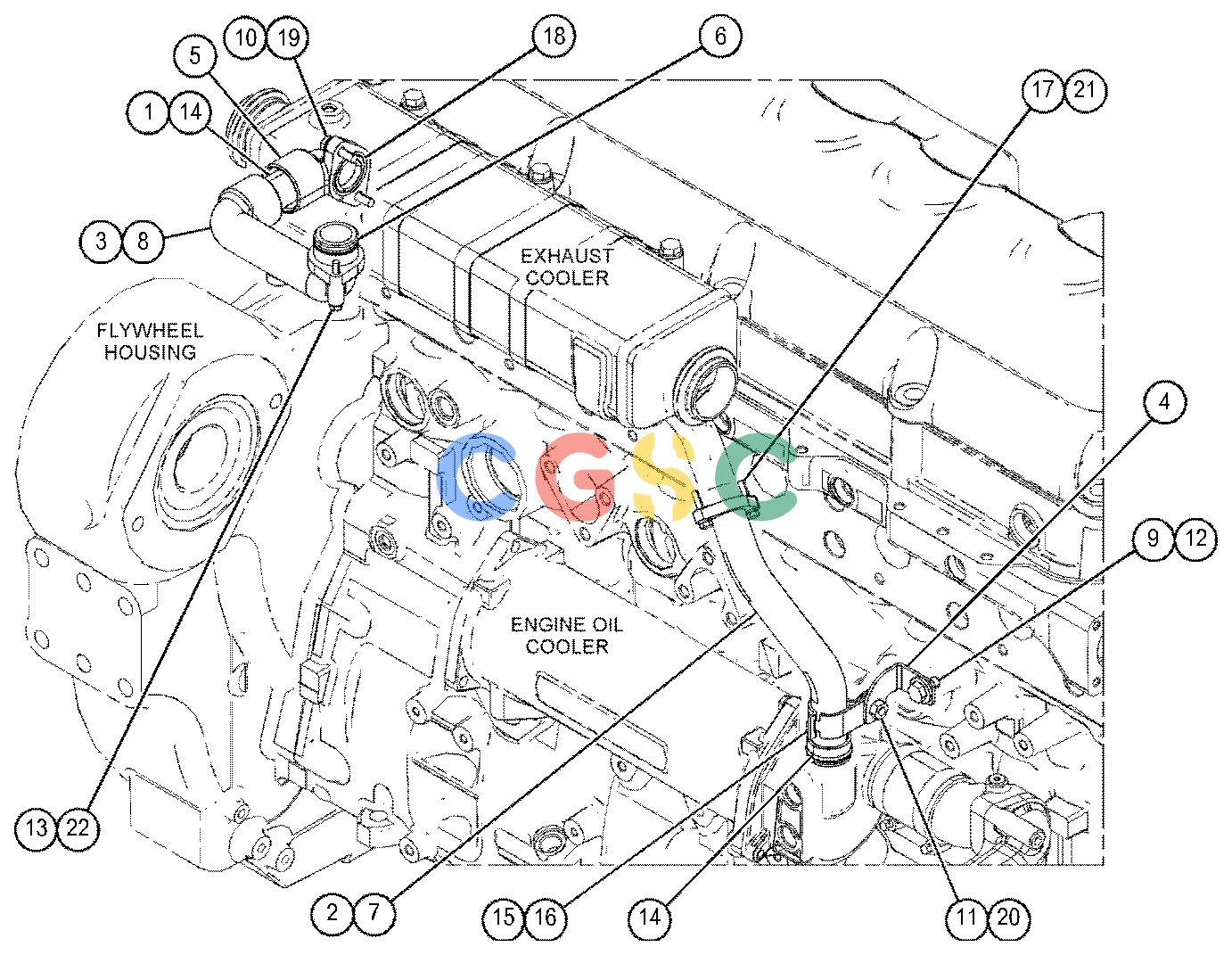

卡特零件查询（730） 485-7150: LINES GP-WATER
广数供应链运营团队, 15 02月, 2025，浏览：
892 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 262-7221 | [1] | TUBE | |
| 2. | 289-3107 | [1] | GASKET | |
| 3. | 304-8008 | [1] | PLUG AS | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 4. | 517-0061 | [1] | BRACKET AS | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 5. | 353-2898 | [1] | ELBOW | |
| 6. | 437-4425 | [1] | SEAL-O-RING | |
| 7. | 517-0055 | [1] | TUBE AS-WATER | |
| 8. | 487-5075 | [1] | ELBOW | |
| 9. | 3E-4353 | [1] | WASHER-HARD(11X25X3-MM THK) | |
| 10. | 6V-2317M | [2] | BOLT(M8X1.25X30-MM) | |
| 11. | 6V-5217M | [1] | BOLT(M8X1.25X20-MM) | |
| 12. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 13. | 6V-7728M | [2] | BOLT(M6X1X45-MM) | |
| 14. | 7L-6580 | [3] | SEAL-O-RING | |
| 15. | 8S-0023 | [1] | CLIP(SLOT) | |
| 16. | 8S-0024 | [1] | CLIP(TAB) | |
| 17. | 8T-4971M | [2] | BOLT(M6X1X30-MM) | |
| 18. | 8T-5917 | [1] | SEAL-O-RING | |
| 19. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 20. | 9N-0869 | [1] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 21. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 22. | 9X-8267 | [2] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
