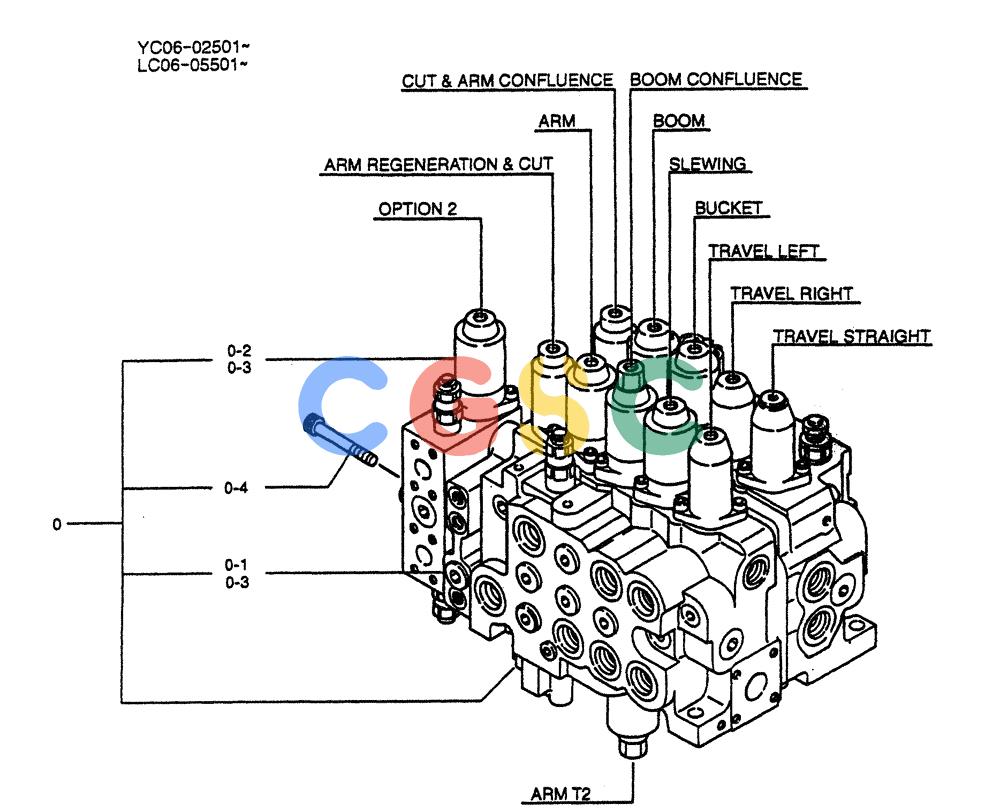

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (01-003) - VALVE INSTAL (BREAKER, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
828 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | LC30V00002F1 | [1] | VALVE | KOB Superseded by part number: LC30V00002F3 |
| 0-1. | YN22V00017F2 | [1] | VALVE | KOBASSY. NEGA-CON RELIEF |
| 0-2. | YN30V00038F1 | [1] | VALVE | KOBCONTROL (ADD-ON) |
| 0-3. | ZD12G03000 | [7] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 0-4. | ZS23C12120 | [4] | SCREW,Hex Socket Head, M12 x 120mm | KOBM12x1.75x120mm |
| . . | YN30V00047F2 | [1] | VALVE | KOBKIT CONSISTS OF REF 0-1,0-2,0-3 & 0-4 |
