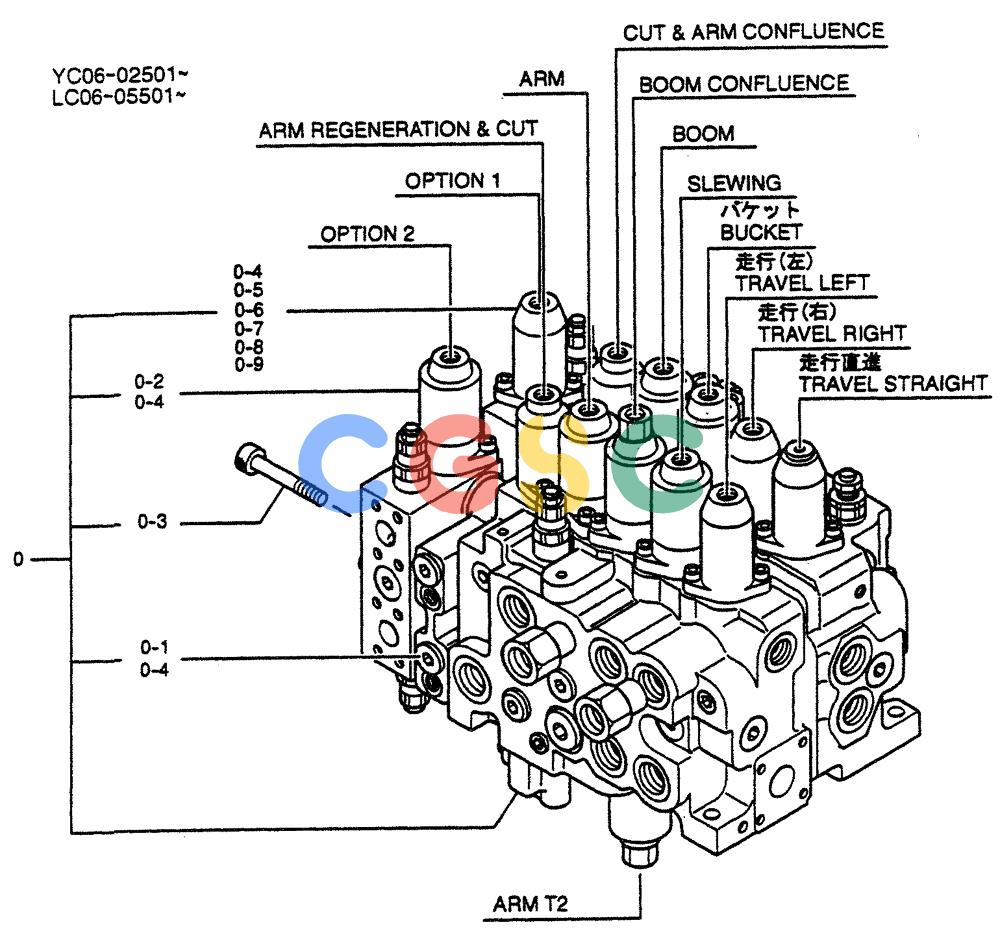

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (01-004) - VALVE INSTAL (EXTRA, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | LC30V00007F2 | [1] | VALVE | KOB |
| 0-1. | YN22V00017F2 | [1] | VALVE | KOBVALVE ASSY.NEGA-CON RELIEF |
| 0-2. | YN30V00038F1 | [1] | VALVE | KOBCONTROL (ADD-ON) |
| 0-3. | ZS23C12120 | [4] | SCREW,Hex Socket Head, M12 x 120mm | KOBM12x1.75x120mm |
| 0-4. | ZD12G03000 | [14] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 0-5. | YV30V00009F2 | [1] | CONTROL VALVE | KOBASSY. (ADD-ON) |
| 0-6. | YN22V00017F1 | [1] | VALVE PRESSURE RELIE | KOBASSY. NEGA-CON RELIEF |
| 0-7. | YW30V00001S157 | [1] | PLUG | KOB |
| 0-8. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 0-9. | ZS23C12110 | [4] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| . . | YN30V00047F2 | [1] | VALVE | KOBKIT (P2) CONSISTS OF REF 0-1,0-2,0-3,0-4 |
| . . | YN30V00057F2 | [1] | CONTROL VALVE | KOBKIT (P1) CONSISTS OF REF 0-4, 0-5, 0-6, 0-7, 0-8 & 0-9 |
