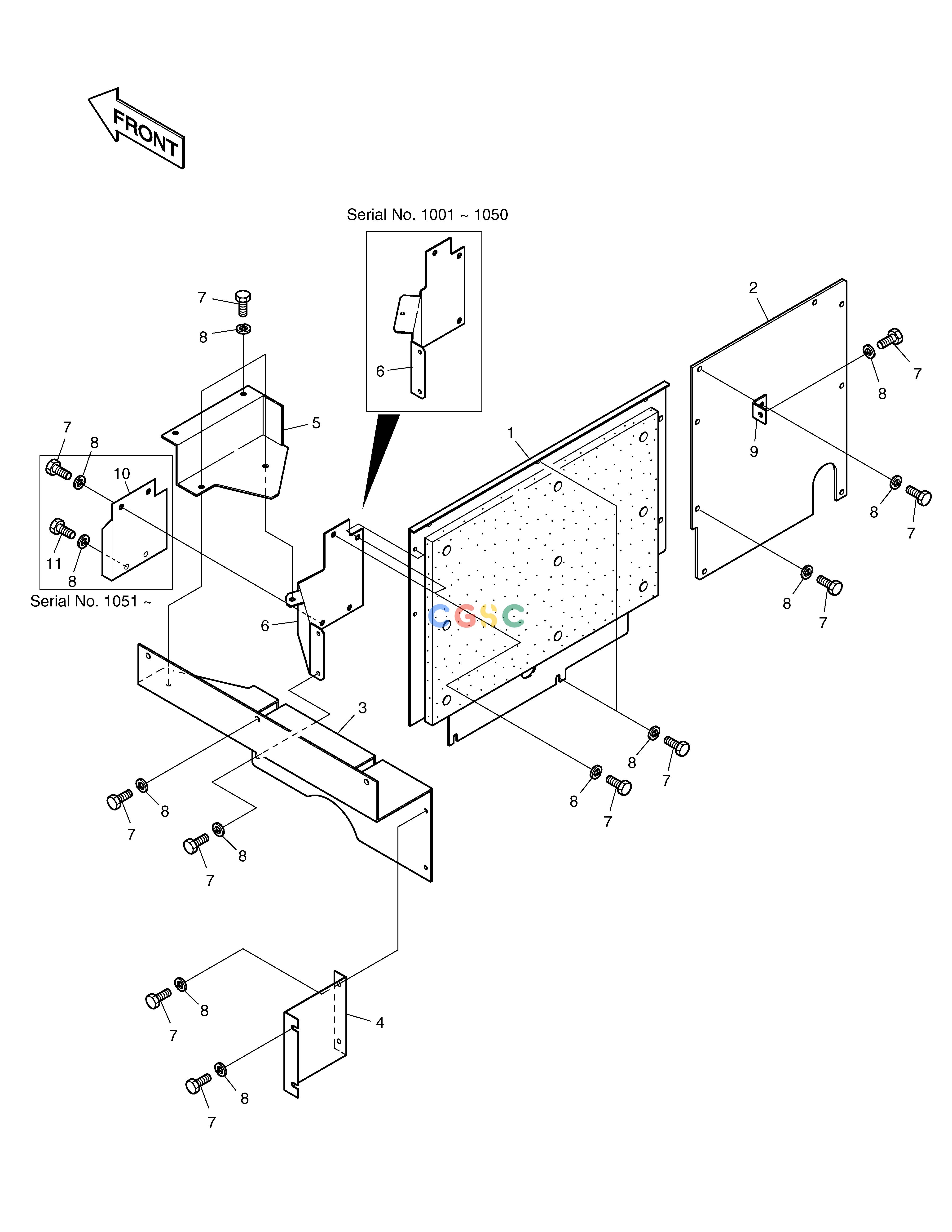

斗山零件查询BAFFLE ASS'Y SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2627-1087A
|
[-] |
BAFFLE ASS'Y
|
|
| 1. |
2627-1081B
|
[1] |
COVER
|
|
| 10. |
2627-1899
|
[1] |
COVER
|
|
| 11. |
S0511653
|
[2] |
BOLT
|
|
| 2. |
2627-1083B
|
[1] |
COVER
|
2627-1083C
|
| 2. |
2627-1083C
|
[1] |
COVER
|
2627-1083E
|
| 2. |
2627-1083E
|
[1] |
COVER
|
2627-1083G
|
| 2. |
2627-1083G
|
[1] |
COVER
|
|
| 3. |
2627-1082
|
[1] |
COVER
|
|
| 4. |
2627-1084
|
[1] |
COVER
|
|
| 5. |
2627-1086
|
[1] |
COVER
|
|
| 5. |
2627-1086A
|
[1] |
COVER
|
|
| 5. |
2627-1086B
|
[1] |
COVER
|
|
| 6. |
2627-1085A
|
[1] |
COVER
|
|
| 6. |
621-00083
|
[1] |
COVER
|
|
| 7. |
S0512053
|
[32] |
BOLT
|
|
| 7. |
S0512053
|
[34] |
BOLT
|
|
| 8. |
2114-1058D10
|
[32] |
WASHER
|
|
| 8. |
2114-1058D10
|
[36] |
WASHER
|
|
| 9. |
2627-1242
|
[1] |
PLATE
|
|
