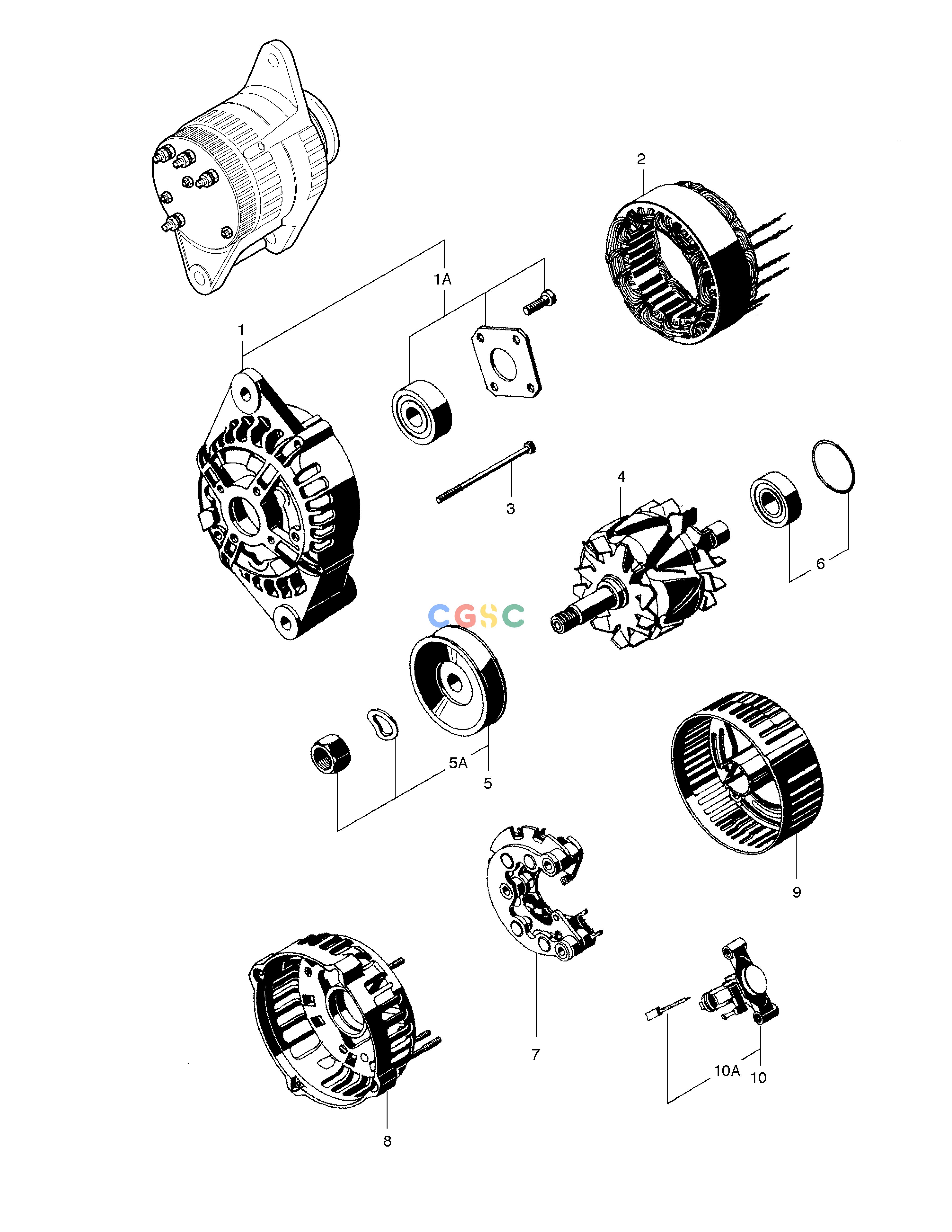

斗山零件查询ALTERNATOR SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
335 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2502-6011
|
[1] |
ALTERNATOR
|
|
| 1. |
16.908.020
|
[1] |
DRIVE END BRACKET
|
|
| 10. |
16.908.024
|
[1] |
REGULATOR
|
|
| 10A. |
16.770.206
|
[1] |
SET OF BRUSHERS
|
|
| 1A. |
16.908.021
|
[1] |
BEARING WITH COVER
|
|
| 2. |
16.350.118
|
[1] |
STATOR
|
|
| 3. |
15.300.696
|
[4] |
THROUGH BOLT
|
|
| 4. |
16.361.279
|
[1] |
ROTOR
|
|
| 5. |
16.908.026
|
[1] |
PULLEY
|
|
| 5A. |
NA00455
|
[1] |
|
|
| 6. |
16.906.347
|
[1] |
BEARING;BALL
|
|
| 7. |
16.904.530
|
[1] |
RECTIFIER
|
|
| 8. |
16.908.023
|
[1] |
SLIP RING END BEARING
|
|
| 9. |
16.420.449
|
[1] |
COVER
|
|
