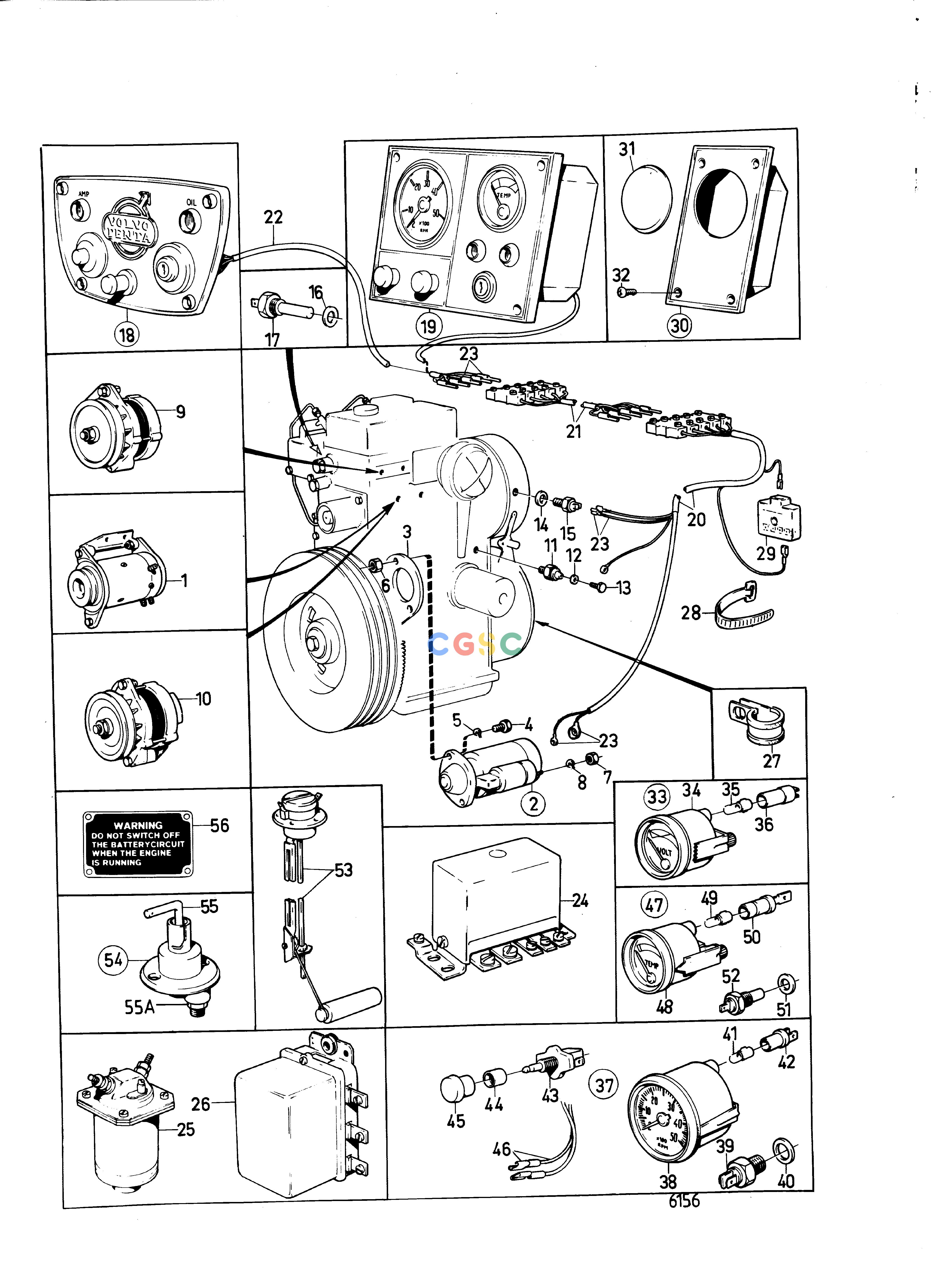

沃尔沃零件查询MD6; MD6A; MD6B; MD7; MD7A; MD7BElectrical SystemElectrical System and Instruments: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7742080_030
|
|
dynamo and installation comps
|
|
| 1. |
|
|
|
|
| 9. |
840249
|
[1] |
Alternator kit
|
|
| 11. |
807078
|
[1] |
Pressure monitor
|
|
| 12. |
955945
|
[1] |
Toothed washer
|
|
| 13. |
190663
|
[1] |
Screw
|
|
| 14. |
957181
|
[1] |
Gasket
|
|
| 15. |
1502028
|
[1] |
Tachometer sensor
|
Spec 867663
|
| 16. |
957181
|
[1] |
Gasket
|
Spec 867663
|
| 17. |
840074
|
[1] |
Temperature sensor
|
|
| 18. |
819678
|
[1] |
Instrument plate
|
Early type
|
| 19. |
|
|
|
Repl by 833909
|
| 19. |
833909
|
[1] |
Instrument panel
|
|
| 20. |
833610
|
[1] |
Cable block
|
|
| 21. |
833618
|
[1] |
Extension cable
|
L=2000mm
|
| 21. |
833619
|
[1] |
Extension cable
|
L=5000mm
|
| 22. |
|
|
|
|
| 23. |
7742080_036
|
|
cables and terminals
|
|
| 24. |
|
|
|
Replaced by 834693 + 834694.
|
| 24. |
834693
|
[1] |
Charge regulator
|
|
| 24. |
834694
|
[1] |
Starter relay
|
|
| 25. |
870730
|
[1] |
Actuator solenoid
|
Starter cut-out relay for unlimited battery capacity
|
| 26. |
239964
|
[1] |
Governor
|
Starter cut-out relay for unlimited battery capacity
|
| 27. |
952628
|
[1] |
Clamp
|
|
| 28. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 29. |
824823
|
[1] |
Fuse box
|
|
| 30. |
840013
|
[1] |
Instrument panel, extra
|
|
| 30. |
|
|
|
|
| 31. |
839128
|
[1] |
Plastic plug
|
|
| 32. |
944540
|
[4] |
Screw
|
|
| 33. |
834397
|
[1] |
Voltmeter
|
|
| 34. |
834374
|
[1] |
Voltmeter
|
|
| 35. |
19923
|
[1] |
Bulb
|
|
| 36. |
808175
|
[1] |
Bulb socket
|
|
| 37. |
840082
|
[1] |
Tachometer kit
|
Replaced by 840527., MO-32549
|
| 38. |
833494
|
[1] |
Tachometer
|
MO-32549
|
| 39. |
1502028
|
[1] |
Tachometer sensor
|
|
| 40. |
957181
|
[1] |
Gasket
|
|
| 41. |
19923
|
[1] |
Bulb
|
|
| 42. |
808175
|
[1] |
Bulb socket
|
|
| 43. |
875819
|
[1] |
Switch
|
|
| 44. |
843002
|
[1] |
Nut
|
|
| 45. |
837726
|
[1] |
Knob
|
|
| 46. |
|
|
|
|
| 46. |
7742080_036
|
|
cables and terminals
|
|
| 47. |
840228
|
[1] |
Temperature gauge ki
|
|
| 48. |
841233
|
[1] |
Thermometer
|
(831475)
|
| 49. |
19923
|
[1] |
Bulb
|
|
| 50. |
808174
|
[1] |
Bulb socket
|
|
| 51. |
957181
|
[1] |
Gasket
|
|
| 52. |
840074
|
[1] |
Temperature sensor
|
|
| 53. |
834400
|
[1] |
Tank gauge, drinking water
|
See group 9
|
| 53. |
|
|
|
|
| 54. |
870980
|
[1] |
Main switch
|
|
| 55. |
243700
|
[1] |
Handle
|
|
| 55A. |
955783
|
[2] |
Hexagon nut
|
|
