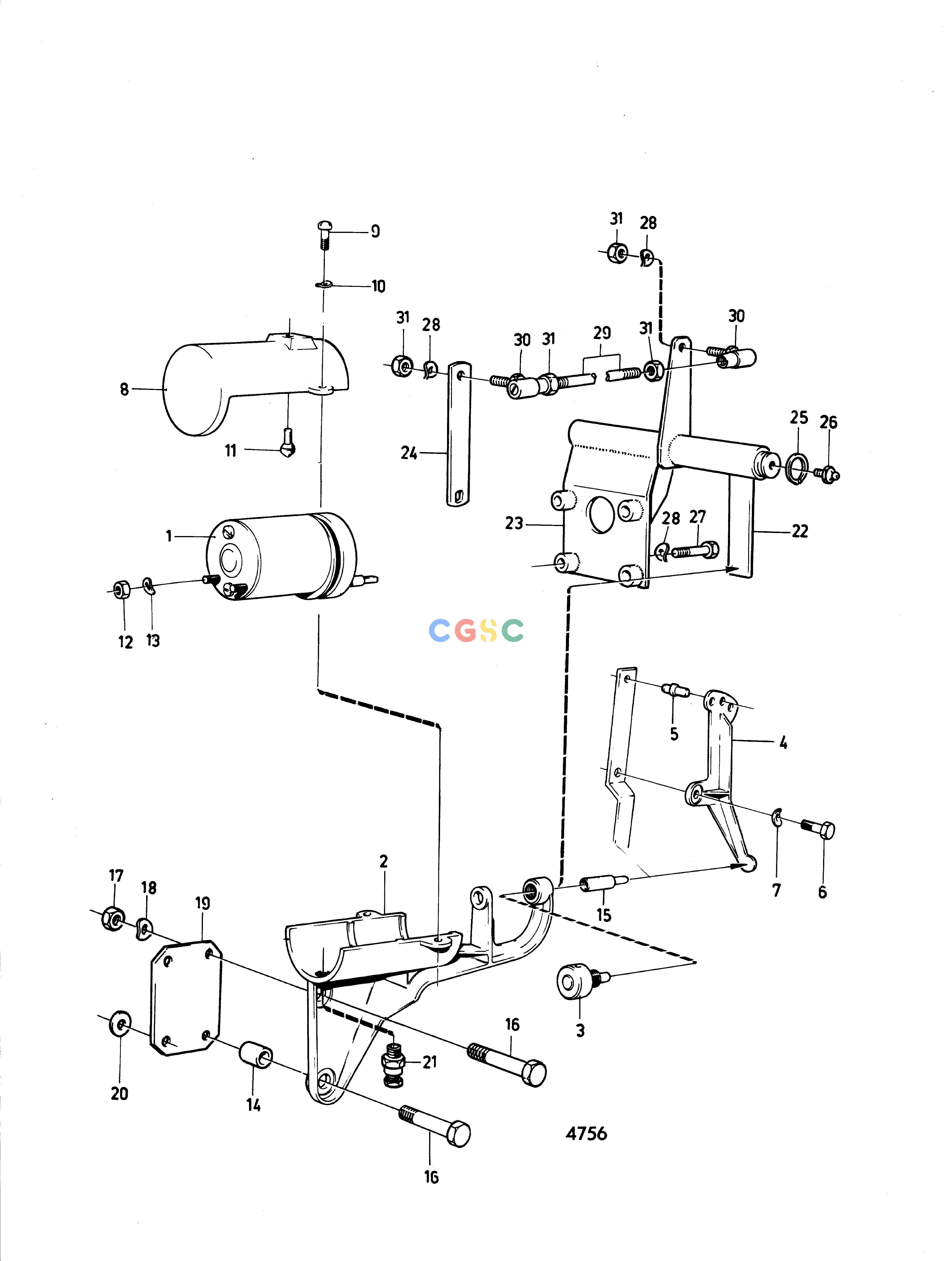

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BControlsControl Motor with Installation Components Earlier ProdEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837941
|
[1] |
Motor
|
|
| 1. |
|
|
|
|
| 2. |
842078
|
[1] |
Bracket
|
|
| 3. |
837427
|
[1] |
Slip clutch
|
|
| 4. |
|
|
|
Replaced by 1pc 822733, 1pc 843382, 1pc 843381, 1pc 914446, 1pc 951739, 4PCS 949096, 6PCS 941906, 1p
|
| 5. |
|
|
|
Replaced by 1pc 822733, 1pc 843382, 1pc 843381, 1pc 914446, 1pc 951739, 4PCS 949096, 6PCS 941906, 1p
|
| 6. |
955272
|
[1] |
Hexagon screw
|
MO-XXXX/23958.
|
| 7. |
941906
|
[1] |
Spring washer
|
MO-XXXX/23958.
|
| 8. |
842079
|
[1] |
Cover
|
|
| 9. |
956094
|
[2] |
Cross recessed screw
|
|
| 10. |
941906
|
[2] |
Spring washer
|
|
| 11. |
655545
|
[1] |
Rubber button
|
|
| 12. |
955779
|
[2] |
Hexagon nut
|
|
| 13. |
941904
|
[2] |
Spring washer
|
|
| 14. |
842405
|
[1] |
Spacer sleeve
|
L=14mm
|
| 14. |
842406
|
[1] |
Sleeve
|
L=24mm
|
| 15. |
|
|
|
Replaced by 1pc 822733, 1pc 843382, 1pc 843381, 1pc 914446, 1pc 951739, 4PCS 949096, 6PCS 941906, 1p
|
| 16. |
955571
|
[1] |
Hexagon screw
|
MO-XXXX/23958., L=95mm
|
| 16. |
955569
|
[2] |
Hexagon screw
|
MOXXXX/23959-., L=83mm
|
| 16. |
955562
|
[2] |
Hexagon screw
|
MOXXXX/23959-., L=38mm
|
| 16. |
955572
|
[1] |
Hexagon screw
|
MO-XXXX/23958., L=102mm
|
| 17. |
940176
|
[2] |
Hexagon nut
|
MOXXXX/23959-.
|
| 18. |
940280
|
[4] |
Spring washer
|
MOXXXX/23959-.
|
| 19. |
842404
|
[1] |
Spacer plate
|
MOXXXX/23959-
|
| 20. |
960145
|
[1] |
Washer
|
|
| 21. |
822327
|
[1] |
Grommet
|
|
| 22. |
822733
|
[1] |
Lever
|
MOXXXX/23959-
|
| 23. |
843382
|
[1] |
Bracket
|
MOXXXX/23959-
|
| 24. |
843381
|
[1] |
Lever
|
MOXXXX/23959-
|
| 25. |
914446
|
[1] |
Snap ring
|
MOXXXX/23959-.
|
| 26. |
951739
|
[1] |
Lubricating nipple
|
MOXXXX/23959-.
|
| 27. |
949096
|
[4] |
Screw
|
MOXXXX/23959-
|
| 28. |
941906
|
[6] |
Spring washer
|
MOXXXX/23959-.
|
| 29. |
953932
|
[1] |
Control rod
|
MOXXXX/23959-
|
| 30. |
959573
|
[2] |
Angle ball joint
|
MOXXXX/23959-.
|
| 31. |
955856
|
[4] |
Nut
|
MOXXXX/23959-
|
