神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (01-008) - HYD LINES, UPP (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
290 次

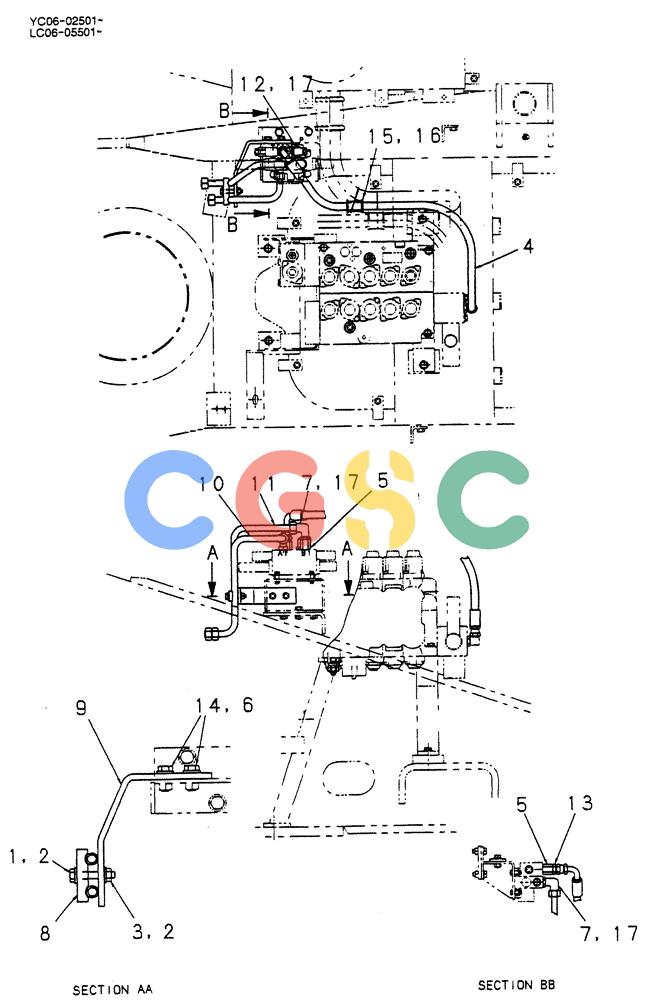

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC03H00013F1 | [1] | HYD LINES.UPP | |
| 1. | ZS18C10060 | [1] | SCREW,Hex, M10 x 60mm | KOBM10x1.50x60mm |
| 2. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 3. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 4. | ZX32M08105 | [1] | HOSE | KOBHOSE |
| 5. | 2444Z3713 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 6. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 7. | ZA33F18008 | [2] | ELBOW | KOB |
| 8. | 2432T4375 | [1] | CLAMP | |
| 9. | YN03H01442P1 | [1] | SUPPORT | KOB |
| 10. | YN03H01533P1 | [1] | TUBE | |
| 11. | YN03H01534P1 | [1] | TUBE | |
| 12. | ZA33F15008 | [1] | ELBOW | KOB |
| 13. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 14. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 15. | YN03H01075P1 | [1] | BUSHING,21mm ID x 39mm OD x 50mm L | KOBSplit -- ID 21 x OD 31 x 50mm Long |
| 16. | PY01P01043D6 | [1] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
| 17. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
