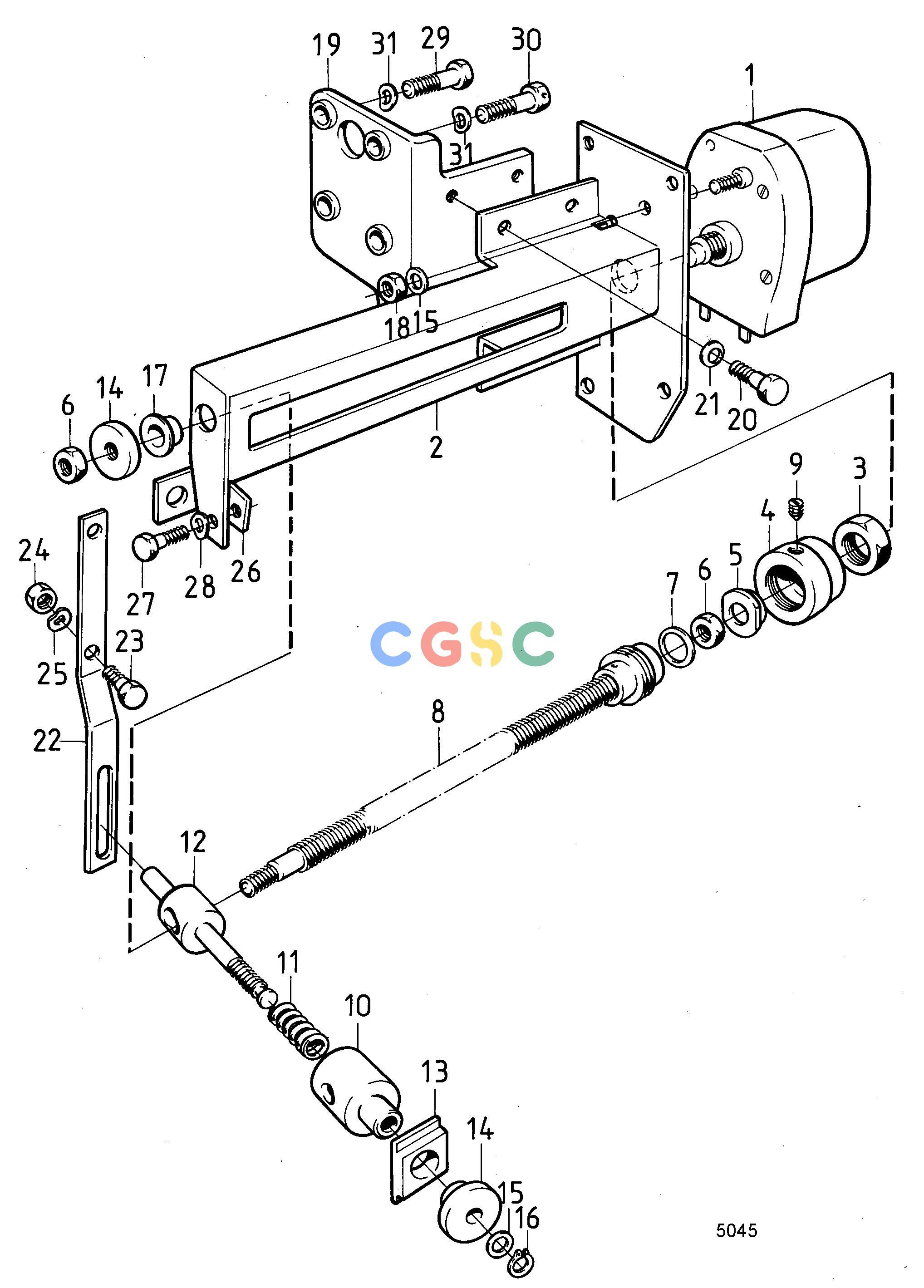

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BControlsControl Motor with Installation Components Later ProdEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843794
|
[1] |
Engine
|
|
| 1. |
|
|
|
|
| 2. |
843795
|
[1] |
Retainer
|
|
| 3. |
843796
|
[1] |
Nut
|
|
| 4. |
843797
|
[1] |
Nut
|
|
| 5. |
843798
|
[1] |
Dog
|
|
| 6. |
955781
|
[2] |
Hexagon nut
|
|
| 7. |
941909
|
[1] |
Spring washer
|
|
| 8. |
843799
|
[1] |
Adjusting screw
|
|
| 9. |
116226
|
[1] |
Set screw
|
|
| 10. |
843802
|
[1] |
Sleeve
|
|
| 11. |
813945
|
[1] |
Spring
|
|
| 12. |
843803
|
[1] |
Piston
|
|
| 13. |
843804
|
[1] |
Bushing
|
|
| 14. |
843805
|
[2] |
Control button
|
|
| 15. |
940090
|
[2] |
Washer
|
|
| 16. |
951667
|
[1] |
E-circlip
|
|
| 17. |
843806
|
[1] |
Bushing
|
|
| 18. |
955780
|
[1] |
Hexagon nut
|
|
| 19. |
843807
|
[1] |
Bracket
|
|
| 20. |
955269
|
[4] |
Hexagon screw
|
|
| 21. |
941906
|
[4] |
Spring washer
|
|
| 22. |
843808
|
[1] |
Intermediate lever
|
|
| 23. |
955273
|
[2] |
Hexagon screw
|
|
| 24. |
955781
|
[1] |
Hexagon nut
|
|
| 25. |
941906
|
[2] |
Spring washer
|
|
| 26. |
843810
|
[1] |
Attaching plate
|
|
| 27. |
955269
|
[1] |
Hexagon screw
|
|
| 28. |
941906
|
[1] |
Spring washer
|
|
| 29. |
955274
|
[3] |
Hexagon screw
|
|
| 30. |
844540
|
[1] |
Screw
|
|
| 31. |
941906
|
[4] |
Spring washer
|
|
