神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (01-010[02]) - HYD LINES, UPP (BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
795 次

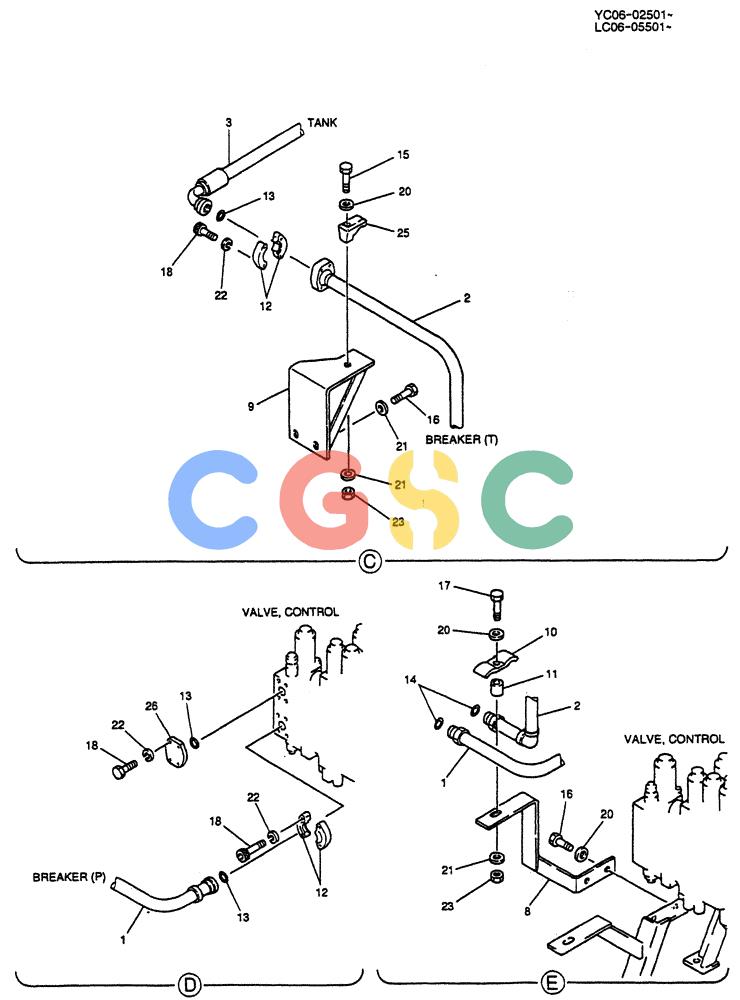

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC03H00009F1 | [1] | HYD LINES, UPP | |
| 1. | LC03H01063P1 | [1] | RIGID TUBE | KOB |
| 2. | LC03H01071P1 | [1] | RIGID TUBE | KOBTUBE |
| 3. | LC03H01025D1 | [1] | HOSE | KOB |
| 4. | 2444Z3203 | [1] | ELBOW | KOB Superseded by part number: HH35X16016G1 |
| 4-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 5. | HH25R16016G2 | [1] | HYD CONNECTOR | KOB1" PF x 81mm Long (Incls. O-Ring ZD12P02900) |
| 5-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 6. | YN32H01066P1 | [1] | CLAMP | KOB94x38x31mm |
| 7. | YN03H01431P1 | [1] | BUSHING,28mm ID x 56mm OD x 70mm L | KOBSplit -- ID 28 x OD 38 x 70mm Long |
| 8. | LC03H01064P1 | [1] | BRACKET | KOB Superseded by part number: LC03H01238P1, 87336029 |
| 9. | LC03H01072P1 | [1] | BRACKET | |
| 10. | LC03H01046P1 | [1] | CLAMP | KOB |
| 11. | LC03H01022D2 | [1] | SPACER | KOB |
| 12. | ZE13X16000 | [4] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 13. | ZD12P03400 | [3] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 14. | ZD12A02100 | [2] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 15. | ZS18C12075 | [1] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm |
| 16. | ZS18C12035 | [6] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 17. | ZS18C12070 | [1] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 18. | ZS28C12040 | [12] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 19. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 20. | ZW16H12000 | [7] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 21. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 22. | ZW26K12000 | [12] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 23. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 24. | LC03H01070P1 | [1] | SUPPORT | KOB |
| 25. | YN42H01078P1 | [1] | CLAMP | KOB |
| 26. | ZE13Q16000 | [1] | PLUG | KOBClamp, Half -- (Incls. O-Ring(ZD12P03400), Capscrew & Lockwasher) |
