神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (01-012) - HYD LINES, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
717 次

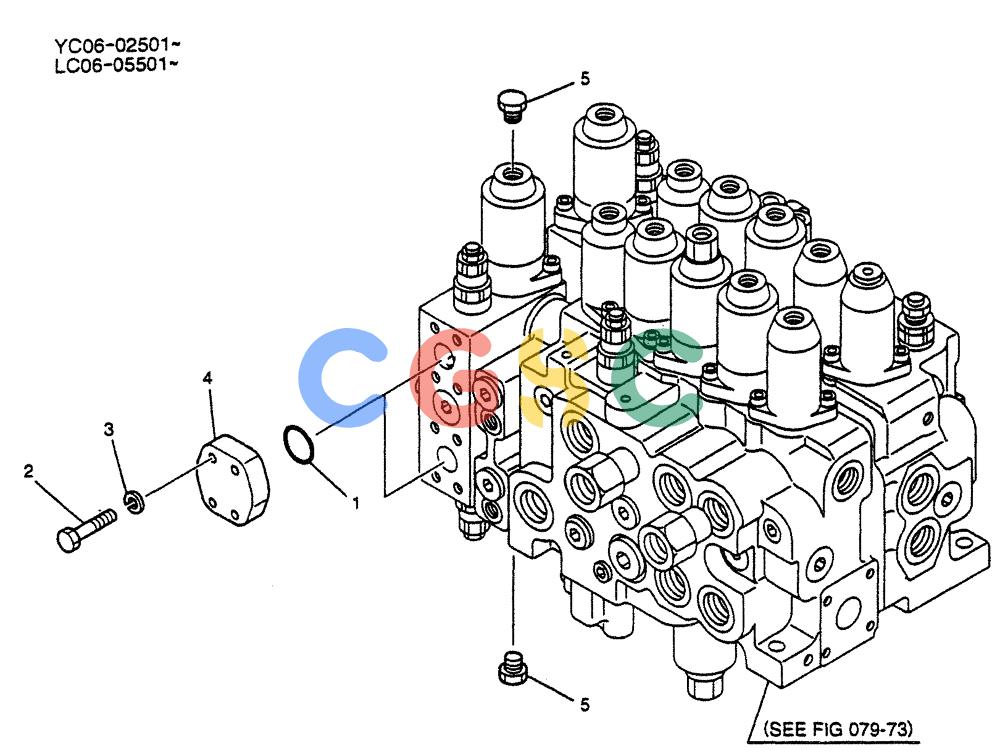

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN03H00062F1 | [1] | HYD LINES, UPP | |
| 1. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 2. | ZS28C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 3. | ZW26K12000 | [8] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 4. | ZE13Q16000 | [2] | PLUG | KOBClamp, Half -- (Incls. O-Ring(ZD12P03400), Capscrew & Lockwasher) |
| 5. | ZE72X06000 | [2] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
