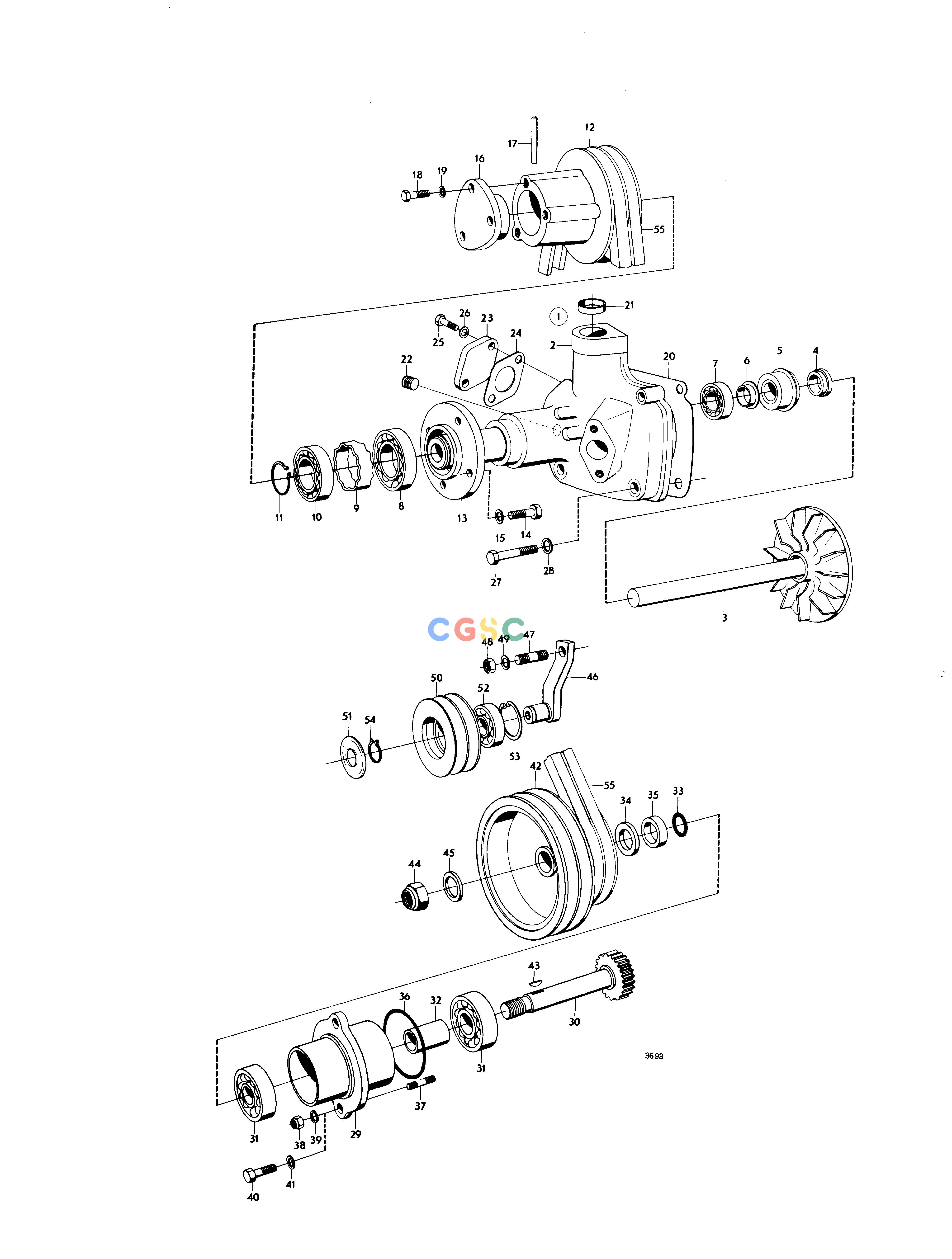

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BCooling SystemCirculation Pump and Drive Device with Installation Components: 875636EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
298 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
875636
|
[1] |
Water pump
|
Repl by 843417
|
| 2. |
|
|
|
|
| 3. |
421148
|
[1] |
Shaft
|
|
| 4. |
421306
|
[1] |
Wear ring
|
|
| 5. |
1545283
|
[1] |
Sealing ring
|
|
| 6. |
70913
|
[1] |
Deflector
|
|
| 7. |
181670
|
[1] |
Ball bearing
|
|
| 8. |
181538
|
[1] |
Ball bearing
|
|
| 9. |
823145
|
[1] |
Spacer sleeve
|
|
| 10. |
19258
|
[1] |
Ball bearing
|
|
| 11. |
914462
|
[1] |
Snap ring
|
|
| 12. |
823129
|
[1] |
V-belt pulley
|
|
| 13. |
823130
|
[1] |
Companion flange
|
|
| 14. |
955524
|
[3] |
Hexagon screw
|
|
| 15. |
941907
|
[3] |
Spring washer
|
|
| 16. |
823131
|
[1] |
Companion flange
|
|
| 17. |
951970
|
[1] |
Spring pin
|
|
| 18. |
955525
|
[3] |
Hexagon screw
|
|
| 19. |
941907
|
[3] |
Spring washer
|
|
| 20. |
421215
|
[1] |
Gasket
|
Included in pump assy.
|
| 21. |
420162
|
[1] |
Seal, seal
|
Included in pump assy.
|
| 22. |
952076
|
[1] |
Plug
|
|
| 23. |
824339
|
[1] |
Flange
|
MD70B, TMD70B.
|
| 24. |
420171
|
[1] |
Gasket
|
MD70B, TMD70B., Included in pump assy.
|
| 25. |
940135
|
[2] |
Hexagon screw
|
MD70B, TMD70B.
|
| 26. |
941907
|
[2] |
Spring washer
|
MD70B, TMD70B.
|
| 27. |
940161
|
[6] |
Hexagon screw
|
|
| 28. |
941907
|
[6] |
Spring washer
|
|
| 29. |
843661
|
[1] |
Housing
|
|
| 30. |
896604
|
[1] |
Gear
|
|
| 31. |
183731
|
[2] |
Ball bearing
|
|
| 32. |
896605
|
[1] |
Spacer sleeve
|
|
| 33. |
925059
|
[1] |
O-ring
|
|
| 34. |
896672
|
[1] |
Spacer sleeve
|
|
| 35. |
941899
|
[1] |
Sealing ring
|
|
| 36. |
925254
|
[1] |
O-ring
|
|
| 37. |
953259
|
[2] |
Stud
|
MD70B, TMD70B., TAMD70C,AQD70C.
|
| 38. |
955827
|
[2] |
Hexagon nut
|
MD70B, TMD70B., TAMD70C,AQD70C.
|
| 39. |
942336
|
[2] |
Spring washer
|
MD70B, TMD70B., TAMD70C,AQD70C.
|
| 40. |
940115
|
[2] |
Hexagon screw
|
TAMD70B, AQD70B, TMD70B.
|
| 41. |
942336
|
[2] |
Spring washer
|
TAMD70B, AQD70B, TMD70B.
|
| 42. |
823134
|
[1] |
Pulley
|
|
| 43. |
910115
|
[1] |
Woodruff key
|
|
| 44. |
|
|
|
|
| 45. |
955900
|
[1] |
Washer
|
|
| 46. |
465473
|
[1] |
Intermediate lever
|
121
|
| 47. |
953351
|
[1] |
Stud
|
121 L=70mm
|
| 48. |
955828
|
[1] |
Hexagon nut
|
|
| 49. |
941911
|
[1] |
Spring washer
|
|
| 50. |
822551
|
[1] |
V-belt pulley
|
|
| 51. |
420416
|
[1] |
Protecting plate
|
|
| 52. |
1544092
|
[1] |
Ball bearing
|
|
| 53. |
914533
|
[1] |
Snap ring
|
|
| 54. |
914462
|
[1] |
Snap ring
|
|
| 55. |
958346
|
[1] |
V-belt
|
|
| 55. |
875474
|
[1] |
Overhaul kit, repair kit circulation pump
|
|
| 55. |
|
|
|
|
