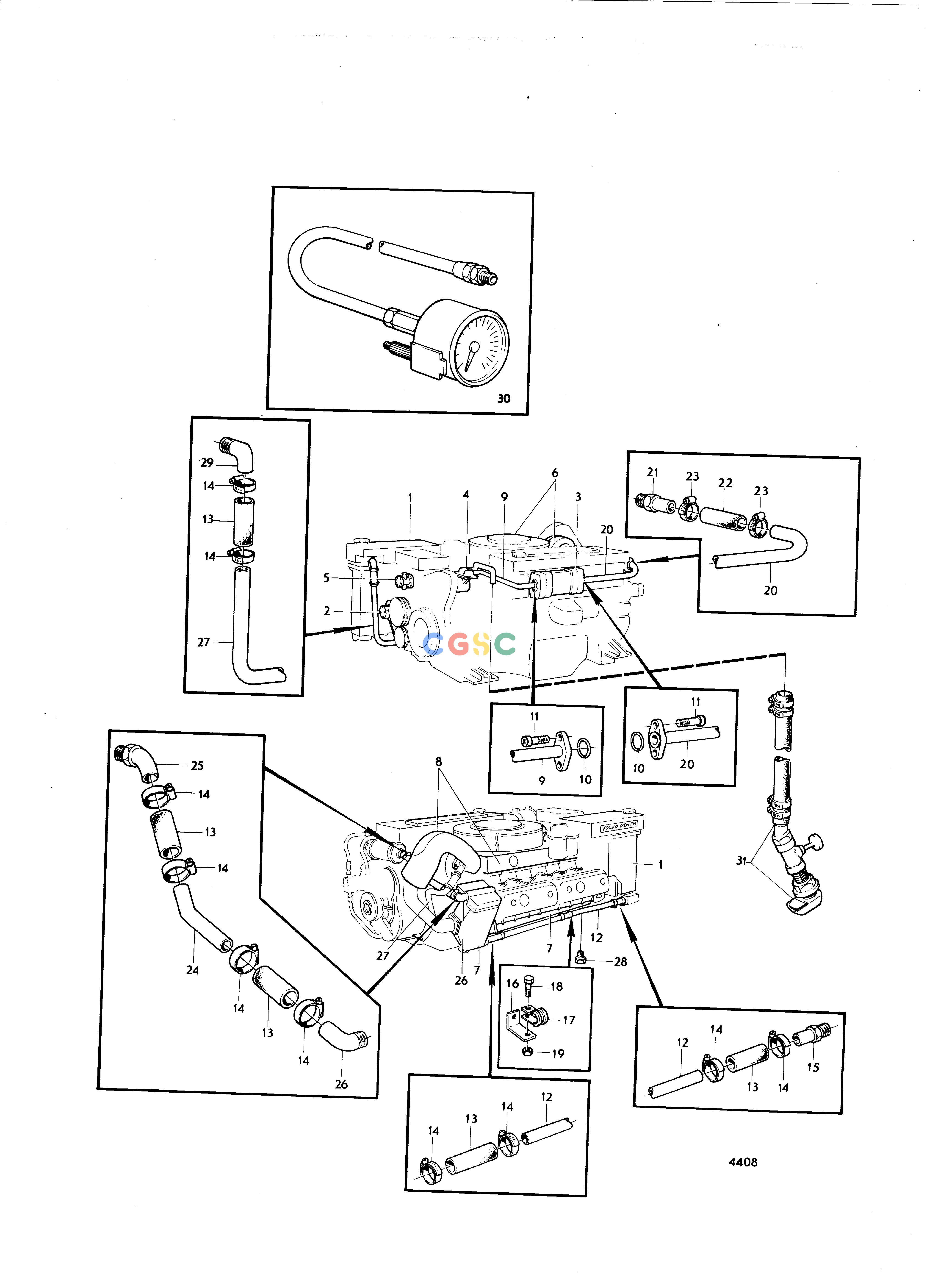

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BCooling SystemCooling System, Induction and Exhaust Manifold.: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
488 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7743240_065
|
|
heat exchanger and thermostat with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
7743240_074
|
|
circulation pump and drive device with installation comps
|
|
| 2. |
|
|
|
|
| 3. |
7743240_067
|
|
oil cooler and installation comps
|
|
| 3. |
|
|
|
|
| 4. |
7743240_070
|
|
sea water pump and installation comps
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
7743240_078
|
|
turbo and air filter with installation comps
|
|
| 6. |
|
|
|
|
| 7. |
7743240_085
|
|
induction manifold and aftercooler with installation comps
|
|
| 7. |
|
|
|
|
| 8. |
7743240_086
|
|
exhaust manifold and installation comps
|
|
| 8. |
|
|
|
|
| 9. |
836803
|
[1] |
Coolant pipe
|
|
| 10. |
836778
|
[2] |
Gasket
|
|
| 11. |
950060
|
[4] |
Cross recessed screw
|
|
| 12. |
836806
|
[1] |
Coolant pipe
|
|
| 13. |
13430
|
[1] |
Rubber hose
|
L=80mm
|
| 14. |
994561
|
[10] |
Hose clamp
|
|
| 15. |
801163
|
[1] |
Hose attachment
|
|
| 16. |
837143
|
[1] |
Anchorage
|
|
| 17. |
943717
|
[1] |
Clamp
|
|
| 18. |
950059
|
[1] |
Cross recessed screw
|
|
| 19. |
955826
|
[1] |
Hexagon nut
|
|
| 20. |
836858
|
[1] |
Coolant pipe
|
|
| 21. |
801163
|
[1] |
Hose attachment
|
|
| 22. |
830534
|
[1] |
Hose
|
|
| 23. |
994561
|
[2] |
Hose clamp
|
|
| 24. |
836771
|
[1] |
Coolant pipe
|
Reverse gear Twin Disc..
|
| 25. |
801308
|
[1] |
Hose coupling
|
|
| 26. |
801157
|
[1] |
Elbow nipple
|
|
| 27. |
837144
|
[1] |
Coolant pipe
|
|
| 28. |
|
|
|
|
| 29. |
801157
|
[1] |
Elbow nipple
|
|
| 30. |
819815
|
[1] |
Manometer kit
|
See group 9
|
| 31. |
|
|
|
See group 9
|
