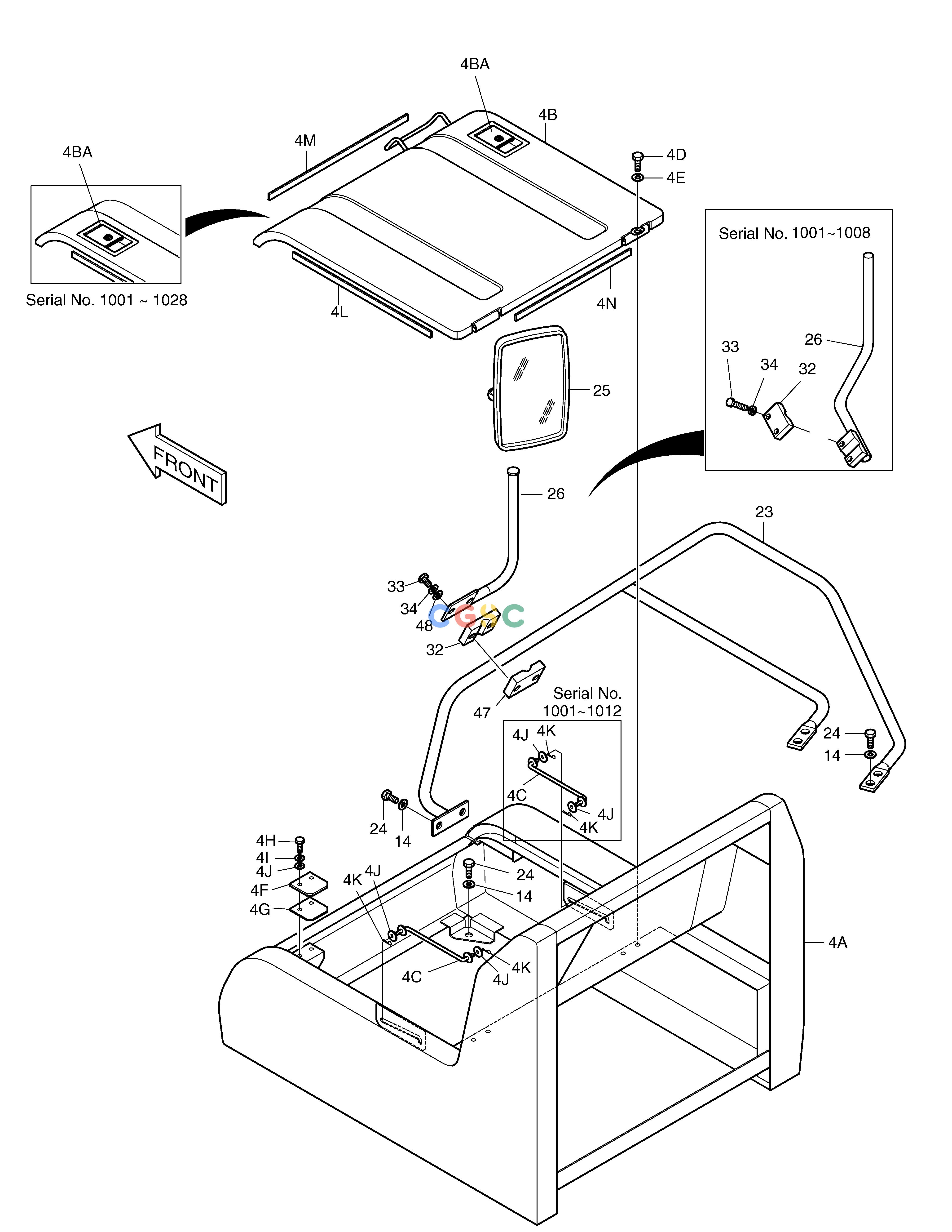

斗山零件查询COVER(4) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
797 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2627-1072A
|
[-] |
COVER ASS'Y
|
|
| 14. |
2114-1058D30
|
[10] |
. WASHER
|
|
| 23. |
2145-1246B
|
[1] |
STAY
|
2145-1302
|
| 23. |
2145-1302
|
[1] |
STAY
|
|
| 24. |
S0515253
|
[10] |
. BOLT
|
|
| 25. |
2903-9009
|
[1] |
MIRROR;MAIN
|
2903-9012
|
| 25. |
2903-9012
|
[1] |
MIRROR;MAIN
|
903-00052
|
| 25. |
903-00052
|
[1] |
MIRROR;MAIN
|
2903-9012A
|
| 25. |
2903-9012A
|
[1] |
MIRROR;MAIN
|
|
| 26. |
2145-1262B
|
[1] |
STAY
|
2145-1298B
|
| 26. |
2145-1298B
|
[1] |
STAY
|
|
| 32. |
2124-1638
|
[1] |
CLAMP
|
|
| 33. |
S0560853
|
[2] |
BOLT M12X1.75X55
|
|
| 33. |
S0561053
|
[2] |
BOLT
|
|
| 34. |
S5102703
|
[2] |
WASHER
|
|
| 4. |
2621-3570C
|
[1] |
BATTERY COVER ASS'Y
|
2621-3570E
|
| 4. |
2621-3570E
|
[1] |
BATTERY COVER ASS'Y
|
2621-3570G
|
| 4. |
2621-3570G
|
[1] |
BATTERY COVER ASS'Y
|
|
| 47. |
2124-1677
|
[1] |
CLAMP
|
|
| 48. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 4A. |
2621-3564C
|
[1] |
COVER
|
|
| 4A. |
2621-3564E
|
[1] |
COVER
|
2621-3564G
|
| 4A. |
2621-3564G
|
[1] |
COVER
|
|
| 4B. |
2621-3569B
|
[1] |
COVER
|
|
| 4B. |
2621-3569C
|
[1] |
COVER
|
|
| 4B. |
2621-3569G
|
[1] |
COVER
|
|
| 4BA. |
2125-9038
|
[1] |
LOCK
|
2125-9054
|
| 4BA. |
2125-9054
|
[1] |
LOCK
|
|
| 4C. |
2145-1243
|
[1] |
. STAY
|
|
| 4D. |
S0512053
|
[4] |
BOLT
|
|
| 4E. |
S5010613
|
[4] |
WASHER
|
|
| 4F. |
2621-3003A
|
[1] |
. PLATE
|
|
| 4G. |
2114-1727A
|
[1] |
. SHIM
|
|
| 4H. |
S0555753
|
[2] |
BOLT M8X1.25X25
|
|
| 4I. |
S5010513
|
[2] |
WASHER
|
|
| 4J. |
2114-1058D29
|
[2] |
WASHER
|
|
| 4K. |
2705-9002
|
[2] |
PIN
|
|
| 4L. |
NA00268
|
[2] |
BUSHING
|
|
| 4M. |
NA00268
|
[1] |
BUSHING
|
|
| 4N. |
NA00268
|
[1] |
BUSHING
|
|
