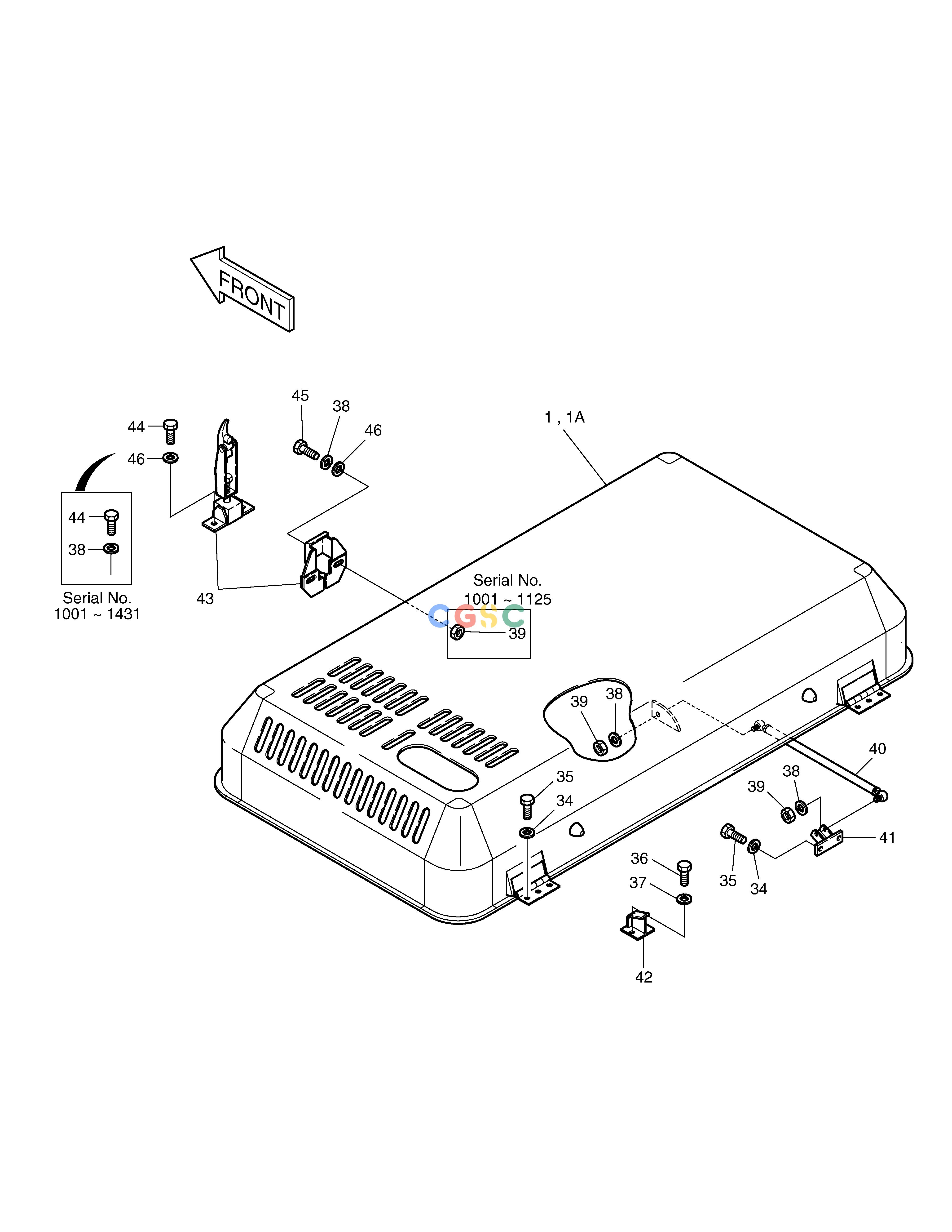

斗山零件查询COVER(5) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2627-1072A
|
[-] |
COVER ASS'Y
|
|
| 1. |
2627-1236C
|
[1] |
COVER;ENGINE
|
2627-1236E
|
| 1. |
2627-1236E
|
[1] |
COVER;ENGINE
|
2627-1236H
|
| 1. |
2627-1236H
|
[1] |
COVER;ENGINE
|
|
| 1A. |
1.162-00001
|
[1] |
RUBBER;CUSHION
|
|
| 34. |
S5102703
|
[8] |
WASHER
|
|
| 35. |
S0515053
|
[8] |
BOLT M12X1.75X25
|
|
| 36. |
S0511653
|
[4] |
BOLT
|
|
| 37. |
S5102603
|
[4] |
. WASHER
|
|
| 38. |
S5102503
|
[12] |
. WASHER
|
|
| 38. |
S5102503
|
[8] |
. WASHER
|
|
| 39. |
S4012533
|
[8] |
NUT
|
|
| 39. |
S4012533
|
[4] |
NUT
|
|
| 40. |
2440-9141
|
[2] |
SPRING;GAS
|
|
| 41. |
2197-2285
|
[1] |
BRACKET
|
|
| 42. |
2197-2168A
|
[2] |
BRACKET
|
2197-2168B
|
| 42. |
2197-2168B
|
[2] |
BRACKET
|
|
| 43. |
2125-9039
|
[2] |
CATCH
|
2125-9052
|
| 43. |
2125-9052
|
[2] |
CATCH
|
2125-9052A
|
| 43. |
2125-9052A
|
[2] |
CATCH
|
2125-9052B
|
| 43. |
2125-9052B
|
[2] |
CATCH
|
|
| 44. |
S0508653
|
[4] |
BOLT
|
|
| 45. |
S0508853
|
[4] |
. BOLT
|
|
| 46. |
S5010513
|
[4] |
WASHER
|
|
| 46. |
S5010513
|
[8] |
WASHER
|
|
