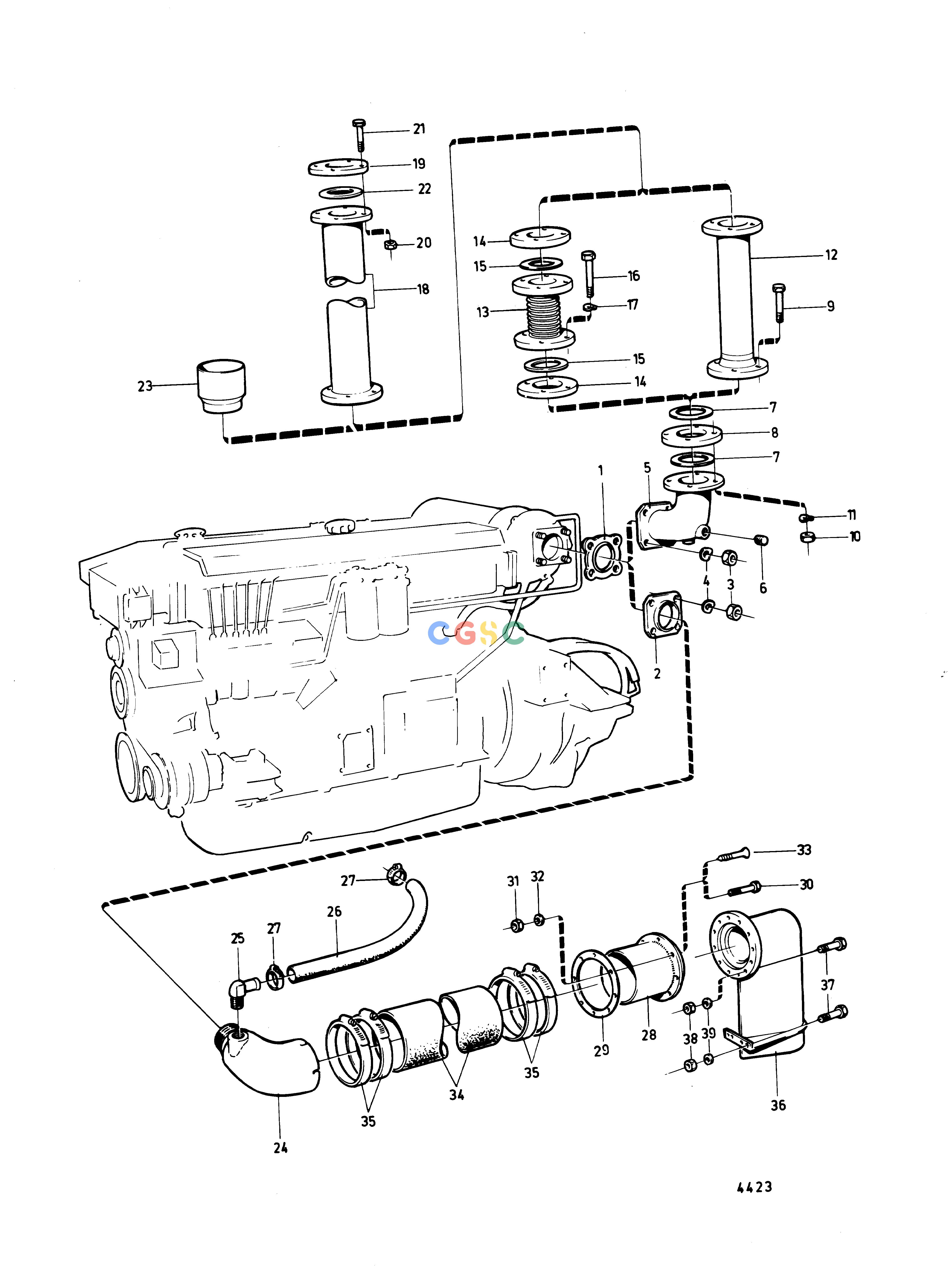

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BCooling SystemExhaust Bend, Hose and SilencerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
424631
|
[1] |
Gasket
|
|
| 2. |
823770
|
[1] |
Flange
|
|
| 3. |
943927
|
[4] |
Hexagon nut
|
|
| 4. |
941908
|
[4] |
Spring washer
|
|
| 5. |
836057
|
[1] |
Exhaust pipe elbow
|
|
| 5. |
822089
|
[1] |
Exhaust pipe elbow
|
TMD70B
|
| 6. |
192154
|
[2] |
Plug
|
|
| 7. |
807578
|
[2] |
Gasket
|
|
| 8. |
807625
|
[1] |
Flange
|
|
| 8. |
820905
|
[1] |
Flange
|
TMD70B
|
| 9. |
955592
|
[4] |
Hexagon screw
|
|
| 10. |
955829
|
[4] |
Hexagon nut
|
|
| 11. |
941912
|
[4] |
Spring washer
|
|
| 12. |
820900
|
[1] |
Exhaust hose
|
L=590mm
|
| 13. |
843087
|
[1] |
Compensator
|
L=85mm
|
| 13. |
843088
|
[1] |
Compensator
|
L=185mm
|
| 14. |
820905
|
[2] |
Flange
|
|
| 15. |
807578
|
[2] |
Gasket
|
|
| 16. |
955591
|
[8] |
Hexagon screw
|
Early type
|
| 16. |
955365
|
[8] |
Hexagon screw
|
Late type
|
| 17. |
941912
|
[8] |
Spring washer
|
|
| 18. |
807704
|
[1] |
Silencer
|
TMD70B
|
| 19. |
842004
|
[2] |
Weld flange
|
TMD70B
|
| 20. |
955829
|
[8] |
Hexagon nut
|
TMD70B
|
| 21. |
955591
|
[8] |
Hexagon screw
|
TMD70B
|
| 22. |
807578
|
[2] |
Gasket
|
TMD70B
|
| 23. |
837614
|
[1] |
Connector
|
|
| 24. |
836745
|
[1] |
Exhaust pipe elbow
|
|
| 25. |
943134
|
[1] |
Elbow nipple
|
|
| 26. |
13430
|
[1] |
Rubber hose
|
L=550mm
|
| 27. |
994561
|
[2] |
Hose clamp
|
|
| 28. |
836757
|
[1] |
Hull fitting
|
|
| 29. |
836758
|
[1] |
Gasket
|
|
| 30. |
941815
|
[8] |
Cross recessed screw
|
L=45mm
|
| 31. |
940190
|
[8] |
Hexagon nut
|
|
| 32. |
836768
|
[8] |
Spring washer
|
|
| 33. |
836769
|
[8] |
Wood screw
|
Alt L=38mm
|
| 34. |
828489
|
[1] |
Exhaust hose
|
|
| 35. |
943485
|
[4] |
Hose clamp
|
|
| 36. |
836823
|
[1] |
Silencer
|
|
| 37. |
959942
|
[16] |
Hexagon screw
|
|
| 38. |
940190
|
[16] |
Hexagon nut
|
|
| 39. |
940191
|
[16] |
Washer
|
|
