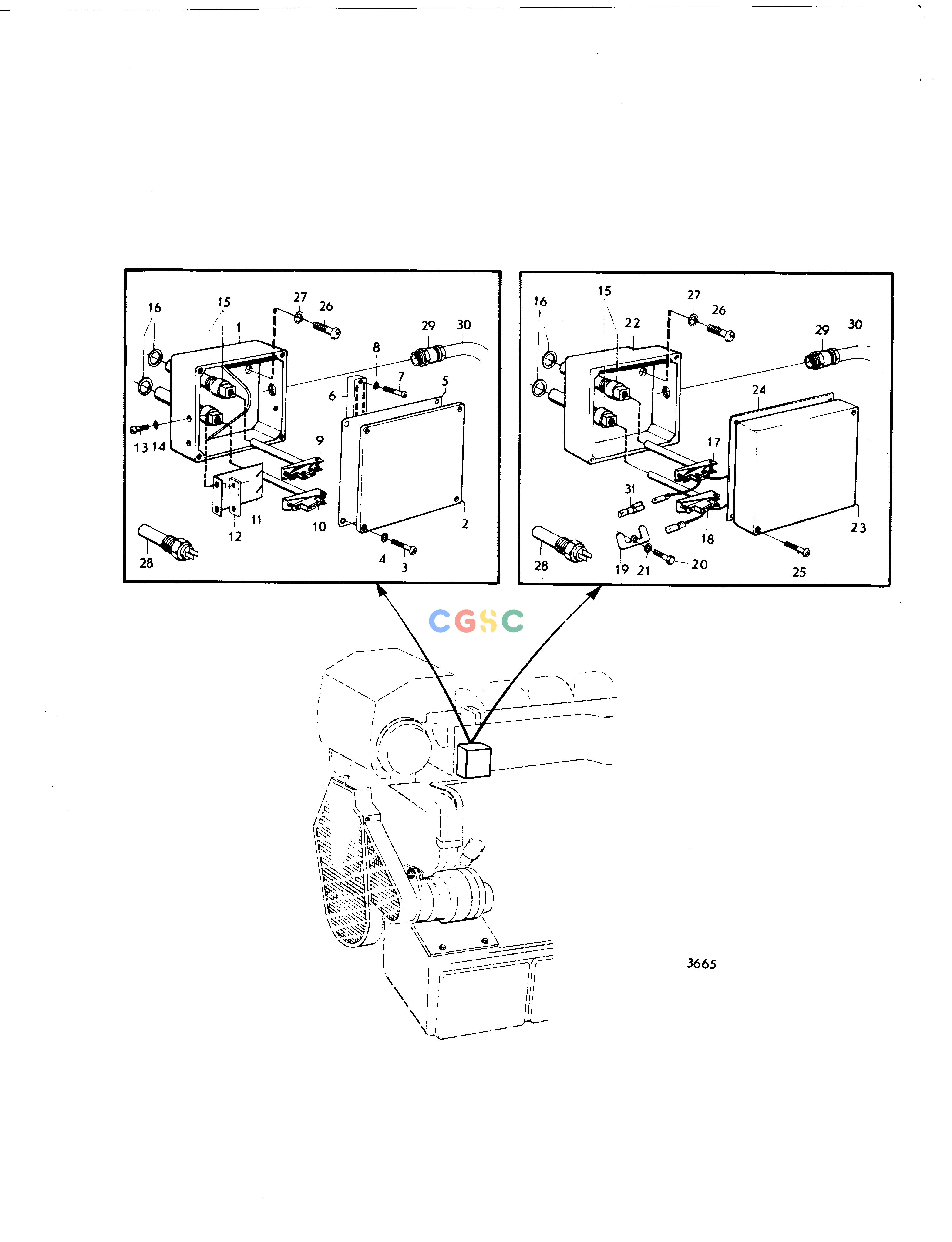

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BElectrical SystemThermoswitch and Protecting Box andinst.comp. for Classed EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
922 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
836722
|
[1] |
Housing
|
MO-XXXX/7699
|
| 2. |
836721
|
[1] |
Cover
|
MO-XXXX/7699
|
| 3. |
950021
|
[4] |
Cross recessed screw
|
MO-XXXX/7699.
|
| 4. |
955946
|
[4] |
Toothed washer
|
MO-XXXX/7699
|
| 5. |
837179
|
[1] |
Gasket
|
MO-XXXX/7699
|
| 6. |
881079
|
[1] |
Terminal block
|
MO-XXXX/7699
|
| 7. |
950011
|
[2] |
Cross recessed screw
|
MO-XXXX/7699
|
| 8. |
955945
|
[2] |
Toothed washer
|
MO-XXXX/7699.
|
| 9. |
837472
|
[1] |
Thermo monitor
|
MO-XXXX/7699., Breaking at 92°C.
|
| 10. |
837473
|
[1] |
Thermo monitor
|
MO-XXXX/7699., Closing at 96°C.
|
| 11. |
836719
|
[1] |
Clamp
|
MO-XXXX/7699
|
| 12. |
836720
|
[1] |
Washer
|
MO-XXXX/7699
|
| 13. |
950020
|
[2] |
Cross recessed screw
|
MO-XXXX/7699
|
| 14. |
941905
|
[2] |
Spring washer
|
MO-XXXX/7699.
|
| 15. |
836718
|
[2] |
Sleeve
|
|
| 16. |
957184
|
[2] |
Gasket
|
|
| 17. |
837472
|
[1] |
Thermo monitor
|
MO-XXXX/7700-., Breaking at 92°C.
|
| 18. |
837473
|
[1] |
Thermo monitor
|
MO-XXXX/7700-., Closing at 96°C.
|
| 19. |
837396
|
[1] |
Lock washer
|
MO-XXXX/7700-.
|
| 20. |
956076
|
[1] |
Cross recessed screw
|
MO-XXXX/7700-.
|
| 21. |
941905
|
[1] |
Spring washer
|
MO-XXXX/7700-.
|
| 22. |
837391
|
[1] |
Housing
|
MO-XXXX/7700-.
|
| 23. |
837392
|
[1] |
Cap
|
MO-XXXX/7700-.
|
| 24. |
837424
|
[1] |
Gasket
|
MO-XXXX/7700-.
|
| 25. |
956301
|
[2] |
Cross recessed screw
|
MO-XXXX/7700-.
|
| 26. |
956567
|
[2] |
Hex. socket screw
|
L=16mm
|
| 26. |
956568
|
[1] |
Hex. socket screw
|
L=19mm
|
| 27. |
955949
|
[2] |
Toothed washer
|
|
| 28. |
827150
|
[1] |
Sensor
|
See group 2B
|
| 29. |
881192
|
[1] |
Grommet
|
|
| 30. |
|
|
|
Acc. to classification.
|
| 31. |
7743240_126
|
|
cable terminal
|
|
