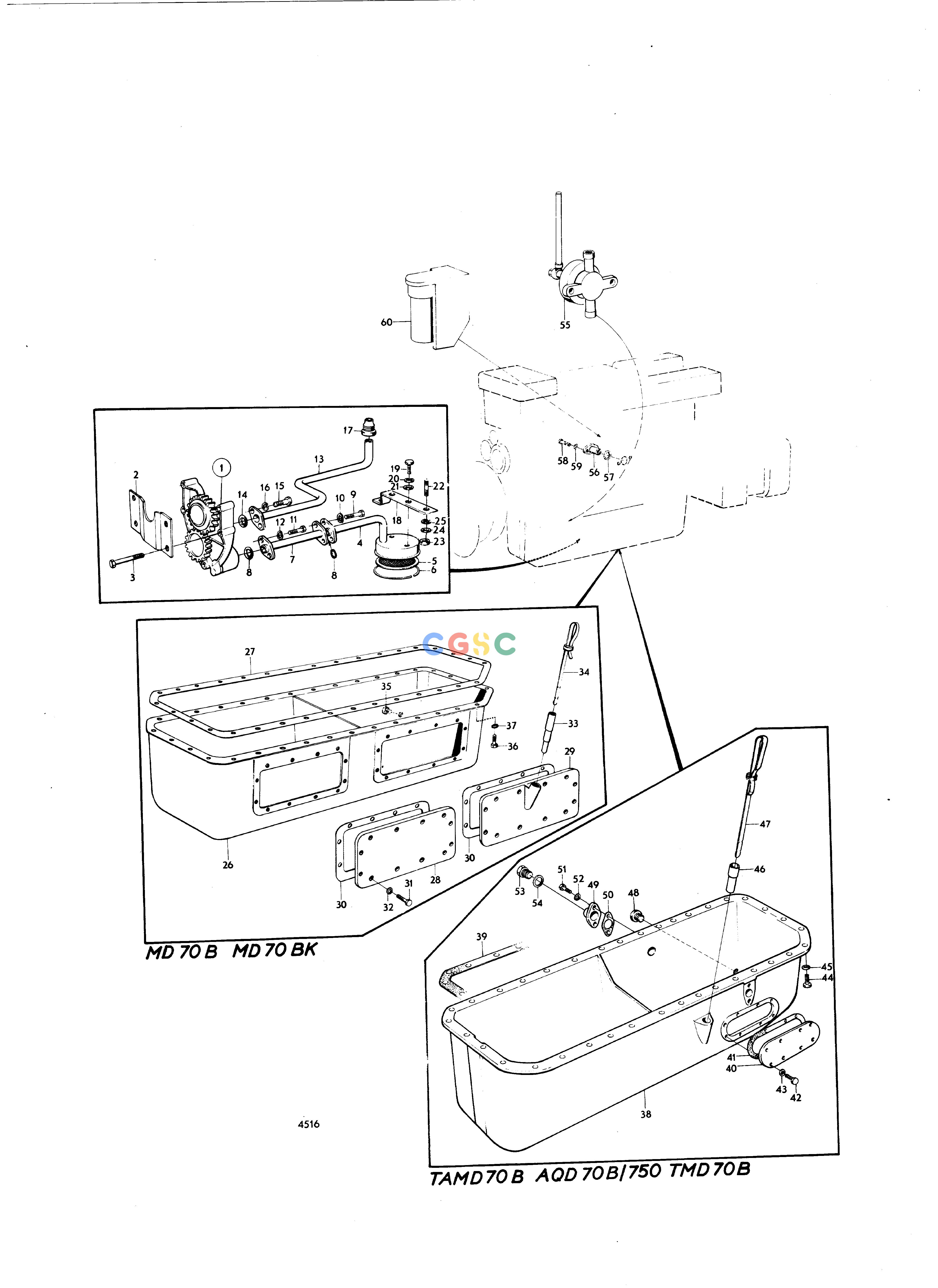

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BEngineLubricating System Std: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
227 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Replaced by 466387., MO-81653/XXXX
|
| 1. |
466387
|
[1] |
Oil pump
|
MO81654/XXXX-
|
| 2. |
421404
|
[1] |
Baffle
|
|
| 3. |
955538
|
[4] |
Hexagon screw
|
|
| 4. |
421051
|
[1] |
Oil pipe
|
|
| 5. |
414621
|
[1] |
Wire gauze
|
|
| 6. |
118125
|
[1] |
Snap ring
|
|
| 7. |
896693
|
[1] |
Intermediate pipe
|
|
| 8. |
925060
|
[2] |
O-ring
|
|
| 9. |
940135
|
[2] |
Hexagon screw
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
955530
|
[2] |
Hexagon screw
|
|
| 12. |
941907
|
[2] |
Spring washer
|
|
| 13. |
421049
|
[1] |
Oil return pipe
|
|
| 14. |
949656
|
[1] |
O-ring
|
|
| 15. |
955530
|
[2] |
Hexagon screw
|
|
| 16. |
941907
|
[2] |
Spring washer
|
|
| 17. |
466906
|
[1] |
Fitting
|
|
| 18. |
896773
|
[1] |
Bracket
|
|
| 19. |
955523
|
[2] |
Hexagon screw
|
|
| 20. |
941907
|
[2] |
Spring washer
|
|
| 21. |
955894
|
[2] |
Washer
|
|
| 22. |
953235
|
[2] |
Stud
|
|
| 23. |
955826
|
[2] |
Hexagon nut
|
|
| 24. |
941907
|
[2] |
Spring washer
|
|
| 25. |
955894
|
[2] |
Washer
|
|
| 26. |
896689
|
[1] |
Sump
|
|
| 27. |
424601
|
[1] |
Gasket
|
|
| 28. |
800877
|
[1] |
Hatch
|
|
| 29. |
802057
|
[1] |
Hatch
|
|
| 30. |
823185
|
[1] |
Gasket
|
|
| 31. |
956569
|
[24] |
Hex. socket screw
|
|
| 32. |
11992
|
[24] |
Gasket
|
|
| 33. |
801480
|
[1] |
Sleeve
|
|
| 34. |
821100
|
[1] |
Oil dipstick
|
|
| 35. |
951906
|
[1] |
Magnetic plug
|
|
| 36. |
956570
|
[36] |
Hex. socket screw
|
|
| 37. |
941907
|
[36] |
Spring washer
|
|
| 55. |
7743240_026
|
|
sump pump and installation comps
|
|
| 56. |
421123
|
[1] |
Reduction valve
|
|
| 57. |
949974
|
[1] |
O-ring
|
|
| 58. |
940100
|
[2] |
Hexagon screw
|
|
| 59. |
941906
|
[2] |
Spring washer
|
|
| 60. |
7743240_023
|
|
oil filter and installation comps
|
|
| 60. |
|
|
|
|
