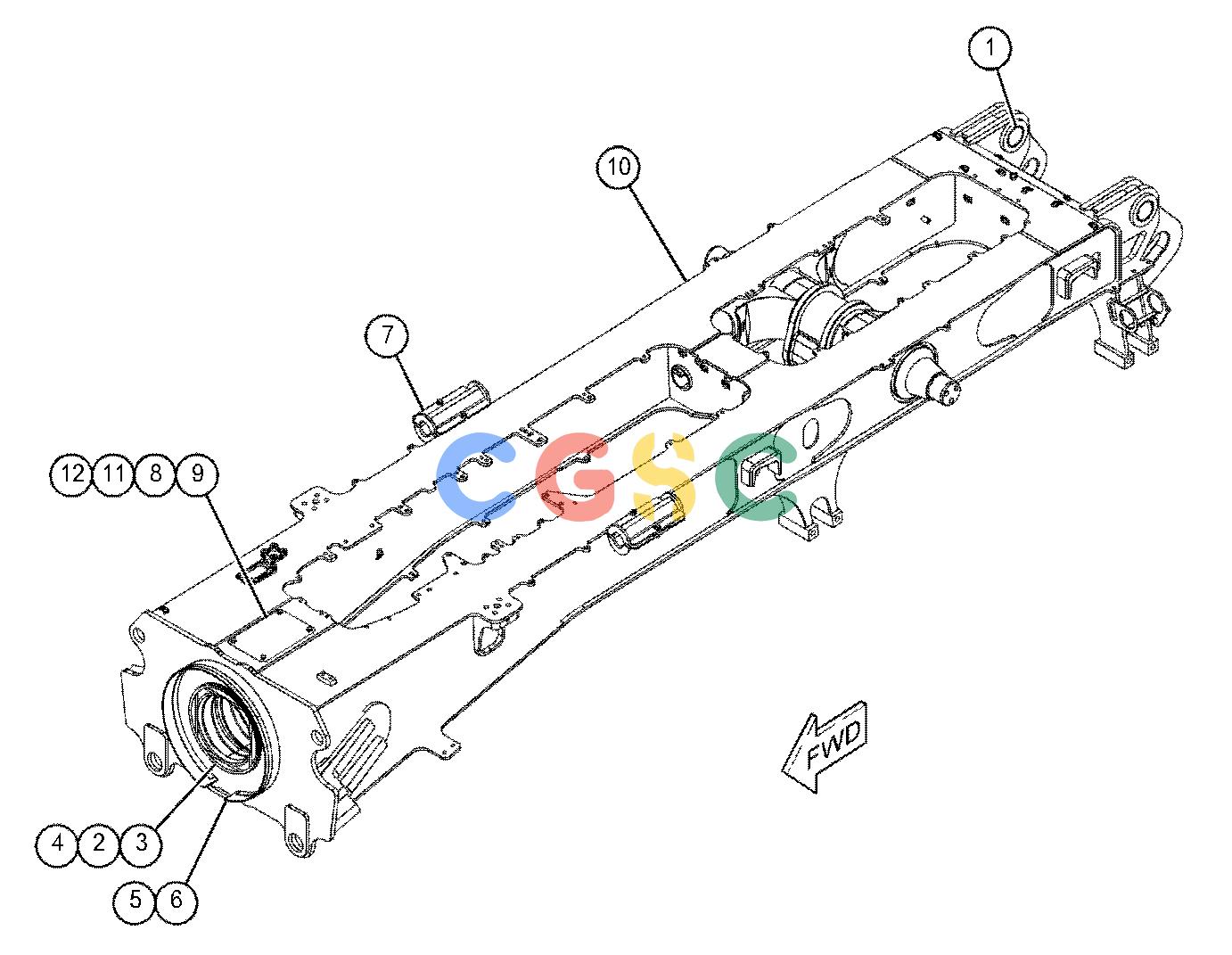

卡特零件查询（730） 503-4349: FRAME GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
826 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 142-0050 | [2] | BUSHING | |
| 2. | 159-5728 | [2] | BUSHING | |
| 3. | 171-4465 | [2] | SEAL | |
| 4. | 173-2479 | [2] | RING-RETAINING | |
| 5. | 189-2908 | [1] | CLAMP AS-BAND | |
| | 195-1106 | [1] | LOCK-SCREW | |
| | 195-1107D | | BAND-PERFORATED(2-M) | |
| 6. | 189-2909 | [1] | DEFLECTOR | |
| 7. | 364-2256Y | [1] | LINK GP-STEERING FRAME LOCK | |
| 8. | 380-8803M | [4] | NUT-INSERT(M10X1.5-THD) | |
| 9. | 380-8804 | [1] | PLATE | |
| 10. | 513-8584 | [1] | FRAME AS | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
