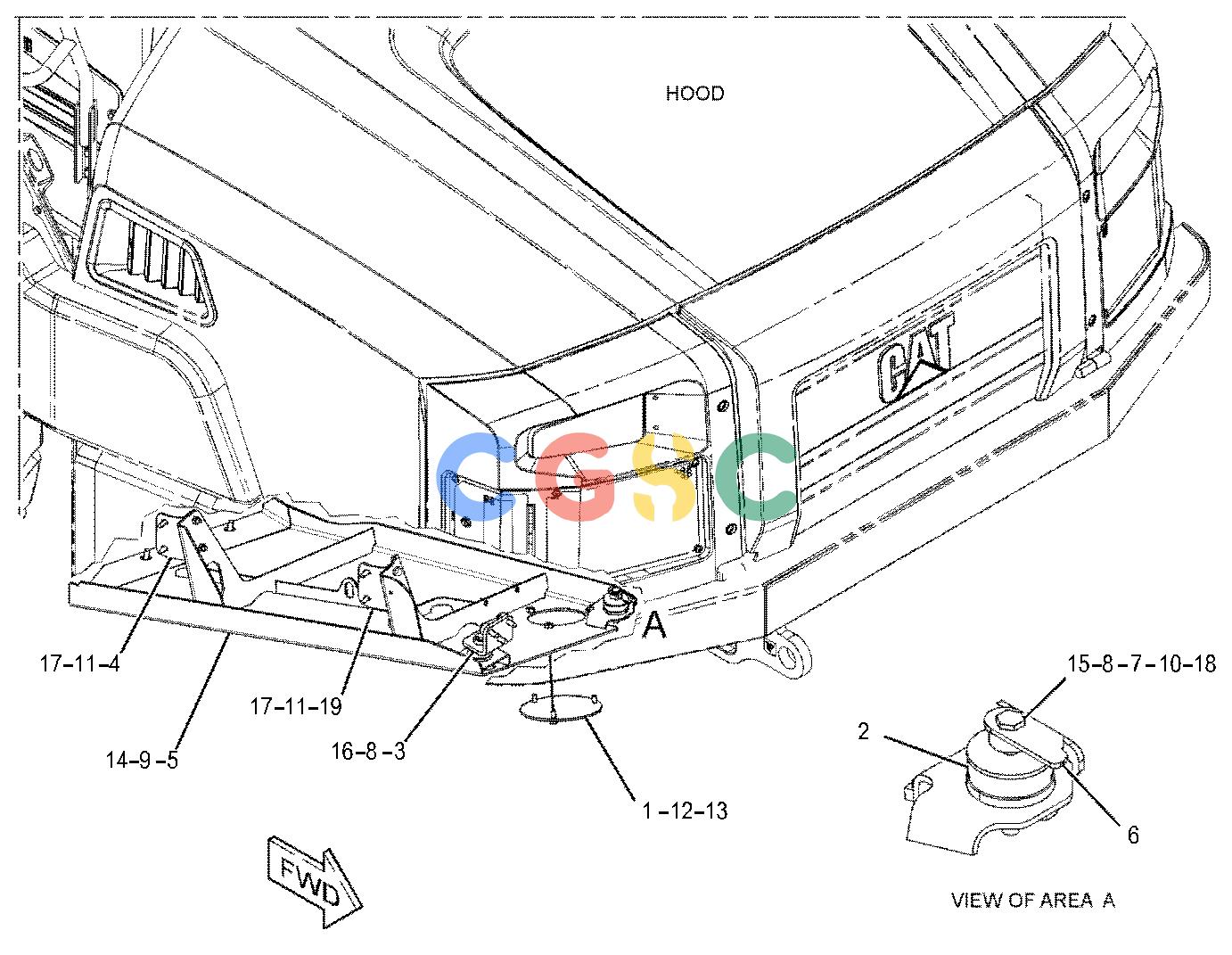

卡特零件查询（730） 504-4712: FRAME GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
813 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 142-0050 | [2] | BUSHING | |
| 2. | 159-5728 | [2] | BUSHING | |
| 3. | 171-4465 | [2] | SEAL | |
| 4. | 173-2479 | [2] | RING-RETAINING | |
| 5. | 189-2908 | [1] | CLAMP AS-BAND | |
| 6. | 189-2909 | [1] | DEFLECTOR | |
| 7. | 364-2256Y | [1] | LINK GP-STEERING FRAME LOCK | |
| 8. | 380-8803M | [4] | NUT-INSERT(M10X1.5-THD) | |
| 9. | 380-8804 | [1] | PLATE | |
| 10. | 504-4711 | [1] | FRAME AS-REAR | |
| | 7T-1099 | [6] | LINK | |
| | 178-7023M | [2] | BOSS(M10X1.5X30-MM) | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
