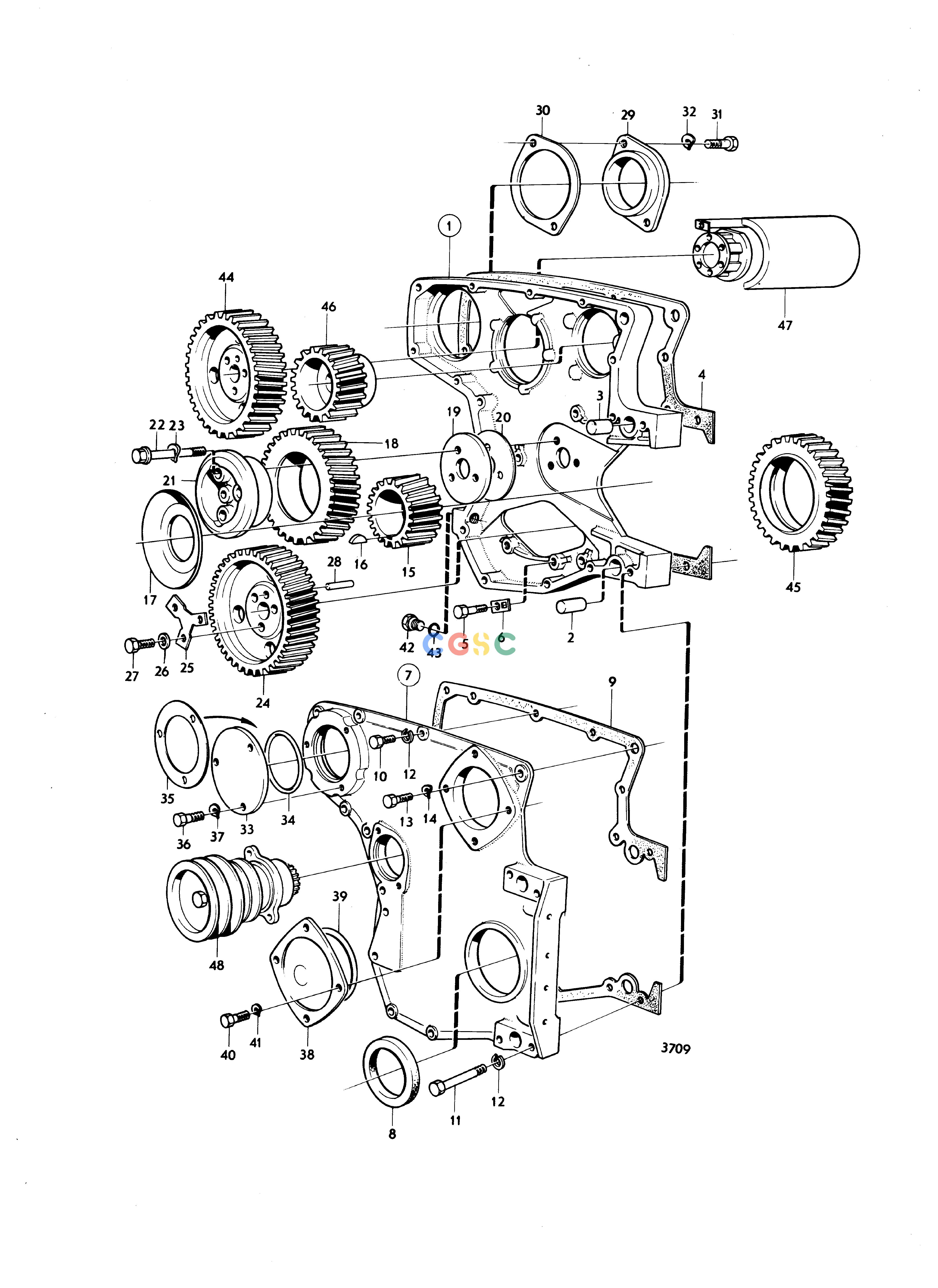

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BEngineTiming Gear Casing and Gear: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
MO76898/XXXX-
|
| 2. |
941511
|
[1] |
Pin
|
|
| 3. |
941510
|
[1] |
Pin
|
|
| 4. |
421057
|
[1] |
Gasket
|
|
| 5. |
955525
|
[5] |
Hexagon screw
|
|
| 6. |
941571
|
[5] |
Tab washer
|
|
| 7. |
|
|
|
Replaced by,for engine with bilge and hydraulic pump,1pc 837799,1pc 837921,1pc 837804,for engine wit
|
| 7. |
837799
|
[1] |
Cover
|
M076898/XXXX-
|
| 8. |
471055
|
[1] |
Sealing ring
|
|
| 9. |
471041
|
[1] |
Gasket
|
|
| 10. |
940186
|
[8] |
Hexagon screw
|
L=38mm
|
| 10. |
955526
|
[1] |
Hexagon screw
|
L=51mm
|
| 11. |
955532
|
[6] |
Hexagon screw
|
L=95mm
|
| 11. |
955530
|
[1] |
Hexagon screw
|
L=83mm
|
| 12. |
941907
|
[16] |
Spring washer
|
|
| 13. |
955547
|
[1] |
Hexagon screw
|
|
| 14. |
941909
|
[1] |
Spring washer
|
|
| 15. |
421080
|
[1] |
Crankshaft gear
|
|
| 16. |
422253
|
[1] |
Woodruff key
|
|
| 17. |
420172
|
[1] |
Oil deflector
|
|
| 18. |
|
|
|
Replaced by 1pc 467461 and 1pc 467463., M0-53371/XXXX
|
| 18. |
467461
|
[1] |
Idler gear
|
M053372/XXXX-
|
| 19. |
|
|
|
Replaced by 1pc 467529 and 1pc 467528., M0-75672/XXXX
|
| 19. |
467529
|
[1] |
Thrust washer
|
M075673/XXXX-
|
| 19. |
467528
|
[1] |
Bearing shield
|
MO75673/XXXX-
|
| 20. |
|
|
|
|
| 21. |
|
|
|
Replaced by 1pc 467461 and 1pc 467463., M0-53371/XXXX
|
| 21. |
467463
|
[1] |
Bearing spindle
|
M053372/XXXX-
|
| 22. |
422316
|
[3] |
Flange screw
|
|
| 23. |
942180
|
[3] |
Disc spring
|
|
| 24. |
421079
|
[1] |
Gear
|
|
| 25. |
467052
|
[1] |
Lock washer
|
|
| 26. |
467055
|
[3] |
Washer
|
|
| 27. |
940128
|
[3] |
Hexagon screw
|
|
| 28. |
950588
|
[1] |
Pin
|
|
| 29. |
420183
|
[1] |
Cover
|
|
| 30. |
421187
|
[1] |
Gasket
|
|
| 31. |
955542
|
[1] |
Hexagon screw
|
L=83mm
|
| 31. |
940115
|
[1] |
Hexagon screw
|
L=25mm
|
| 32. |
942336
|
[2] |
Spring washer
|
|
| 33. |
471054
|
[1] |
Cover
|
|
| 34. |
925095
|
[1] |
O-ring
|
M0-76897/XXXX
|
| 35. |
837804
|
[1] |
Gasket
|
M076898/XXXX-
|
| 36. |
940114
|
[3] |
Hexagon screw
|
|
| 37. |
942336
|
[3] |
Spring washer
|
|
| 38. |
|
|
|
|
| 39. |
960236
|
[1] |
O-ring
|
|
| 40. |
940135
|
[2] |
Hexagon screw
|
L=22mm
|
| 40. |
955527
|
[2] |
Hexagon screw
|
L=57mm
|
| 41. |
941907
|
[4] |
Spring washer
|
|
| 42. |
943681
|
[1] |
Plug
|
|
| 43. |
925059
|
[1] |
O-ring
|
|
| 44. |
421079
|
[1] |
Gear
|
See group 2C
|
| 45. |
|
|
|
Incl.in oil pump
|
| 46. |
|
|
|
See group 2B
|
| 47. |
|
|
|
|
| 48. |
|
|
|
|
