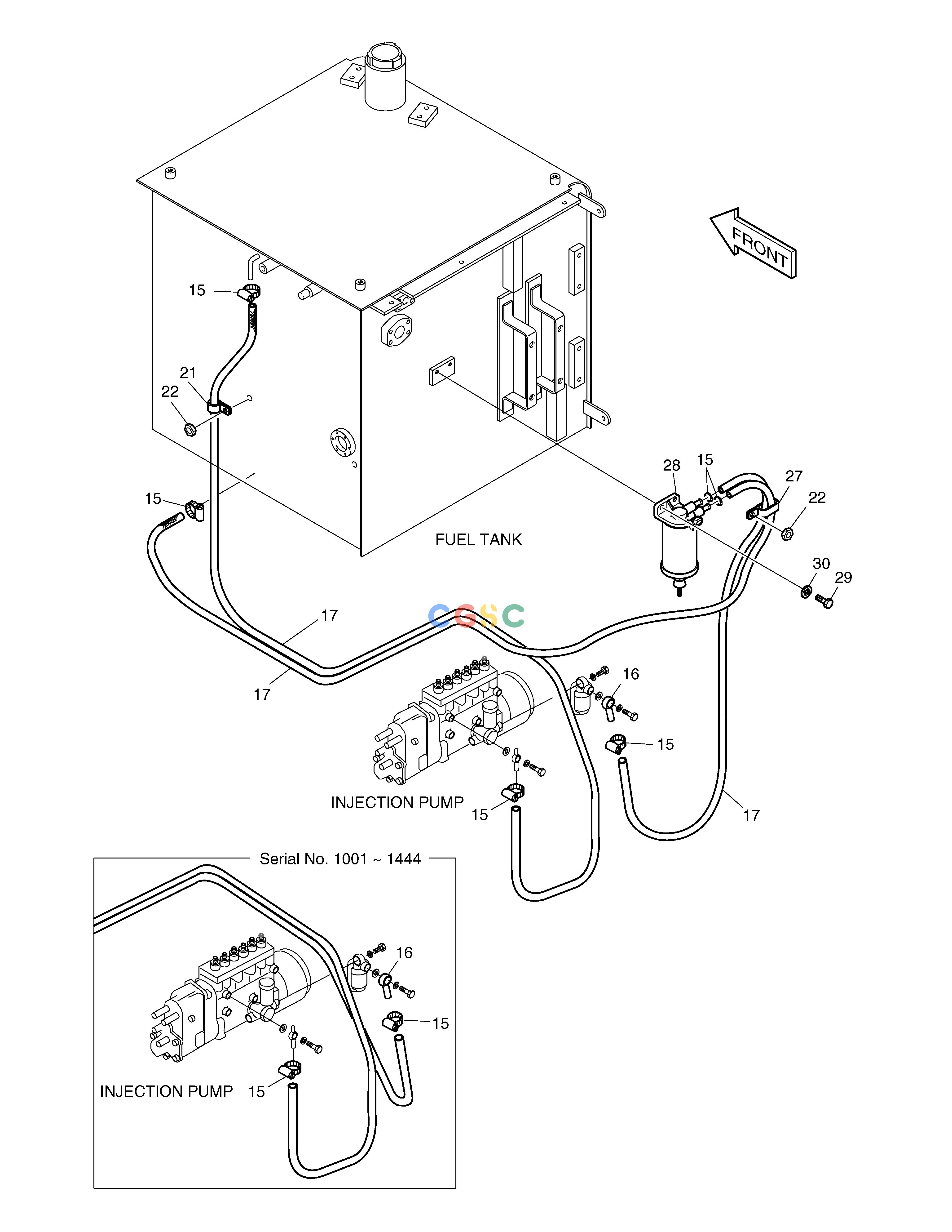

斗山零件查询FUEL PIPING SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2470-2103A
|
[-] |
FUEL TANK ASS'Y
|
|
| -. |
2470-2152
|
[-] |
FUEL TANK ASS'Y
|
|
| 15. |
S8450012
|
[4] |
CLAMP
|
|
| 15. |
S8450012
|
[6] |
CLAMP
|
|
| 16. |
2181-9015
|
[1] |
PIPE;FUEL
|
|
| 17. |
2185-1247D26
|
[2] |
HOSE 3500L
|
|
| 17. |
2185-1247D26
|
[3] |
HOSE 3500L
|
|
| 21. |
2124-1509D2
|
[1] |
CLIP
|
|
| 22. |
S4012533
|
[1] |
NUT
|
|
| 22. |
S4012533
|
[2] |
NUT
|
|
| 27. |
2124-1509D4
|
[1] |
CLIP D30/M8
|
|
| 28. |
471-00082
|
[1] |
SEPARATOR;WATER
|
|
| 29. |
S0508853
|
[2] |
. BOLT
|
|
| 30. |
S5010513
|
[2] |
WASHER
|
|
