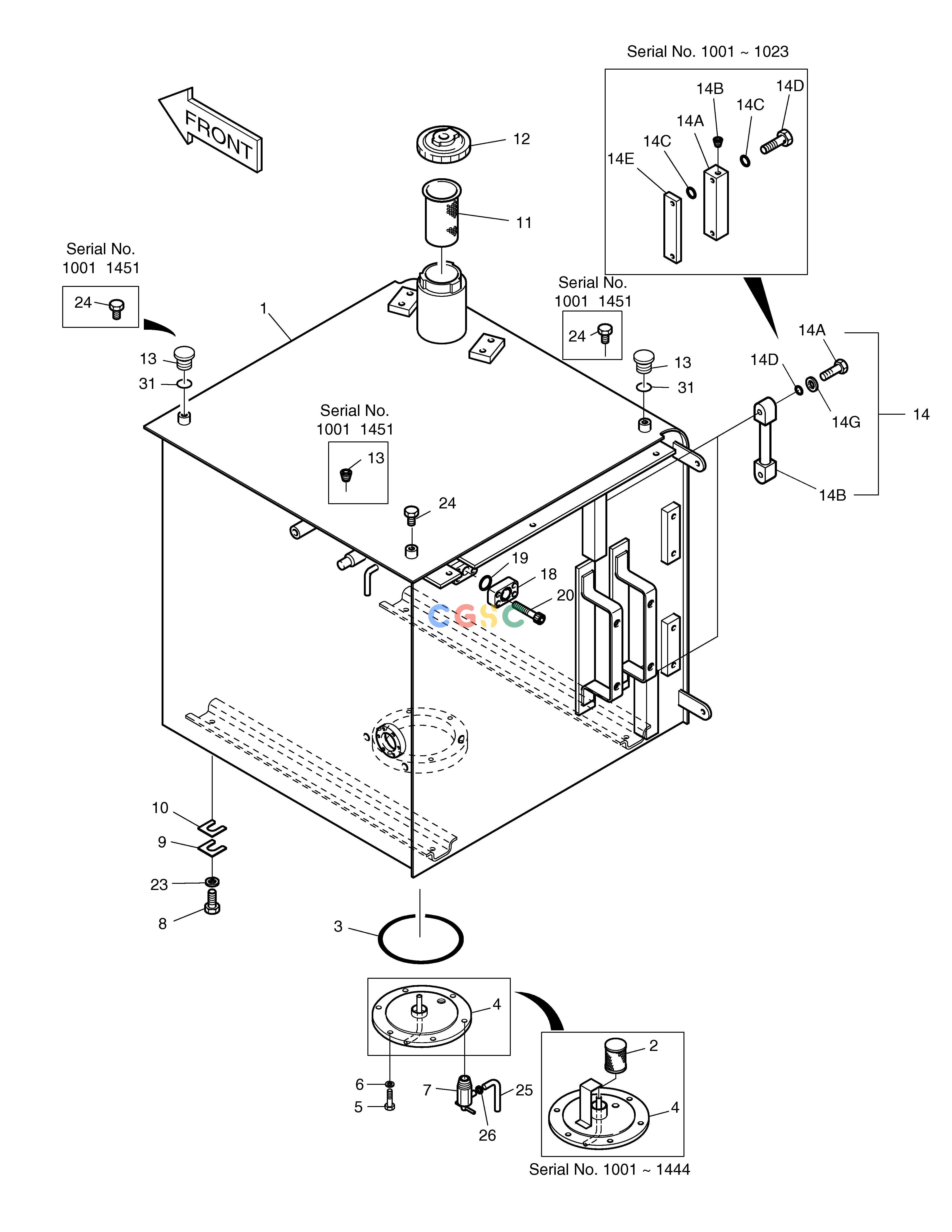

斗山零件查询FUEL TANK SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
148 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2470-2103A
|
[-] |
FUEL TANK ASS'Y
|
|
| -. |
2470-2152
|
[-] |
FUEL TANK ASS'Y
|
|
| 1. |
2470-2102B
|
[1] |
TANK;FUEL 520L
|
|
| 1. |
2470-2151A
|
[1] |
TANK;FUEL 520L
|
470-00023
|
| 1. |
470-00023
|
[1] |
TANK;FUEL 520L
|
470-00023B
|
| 1. |
470-00023B
|
[1] |
TANK;FUEL 520L
|
470-00023C
|
| 1. |
470-00023C
|
[1] |
TANK;FUEL 520L
|
470-00023E
|
| 1. |
470-00023E
|
[1] |
TANK;FUEL 520L
|
|
| 10. |
2114-1814
|
[2] |
SHIM,1.6T
|
|
| 11. |
2471-9046
|
[1] |
FILTER;FUEL
|
|
| 12. |
2188-9004
|
[1] |
CAP
|
2188-9008
|
| 12. |
2188-9008
|
[1] |
CAP
|
|
| 13. |
2181-1116D2
|
[1] |
PLUG
|
|
| 13. |
2181-1890D2
|
[2] |
PLUG
|
|
| 14. |
2119-1061
|
[2] |
GAUGE;LEVEL
|
2119-1066
|
| 14. |
2119-1066
|
[2] |
GAUGE;LEVEL
|
|
| 14A. |
2412-1046
|
[1] |
PLATE
|
|
| 14A. |
2120-1266
|
[2] |
. BOLT
|
|
| 14B. |
2181-1219
|
[1] |
PLUG
|
|
| 14B. |
2441-1025
|
[2] |
. BLOCK
|
|
| 14C. |
S8000110
|
[4] |
O-RING
|
|
| 14D. |
2120-1063
|
[2] |
BOLT
|
|
| 14D. |
S8002701
|
[4] |
. O-RING
|
|
| 14E. |
2166-1001
|
[1] |
TAPE
|
|
| 14G. |
S5010613
|
[2] |
WASHER
|
|
| 18. |
2181-2712
|
[1] |
FLANGE;COVER
|
|
| 19. |
2180-1026D2
|
[1] |
O-RING
|
|
| 2. |
2471-1004B
|
[1] |
FILTER
|
|
| 20. |
S2212261
|
[4] |
SOCKET-HEAD BOLT
|
S2212266
|
| 20. |
S2212266
|
[4] |
BOLT
|
|
| 23. |
2114-1816
|
[4] |
WASHER;HARD
|
|
| 24. |
S0514653
|
[2] |
BOLT M12X1.75X16
|
|
| 24. |
S0514653
|
[1] |
BOLT M12X1.75X16
|
|
| 25. |
2184-9089
|
[1] |
HOSE;VINYL
|
|
| 26. |
S8450006
|
[1] |
CLAMP
|
|
| 3. |
S8011650
|
[1] |
O-RING
|
|
| 31. |
S8000111
|
[2] |
O-RING
|
|
| 4. |
2473-1033B
|
[1] |
COVER
|
|
| 4. |
473-00031
|
[1] |
COVER
|
|
| 5. |
S0512053
|
[6] |
BOLT
|
|
| 6. |
S5102603
|
[6] |
. WASHER
|
|
| 7. |
2186-9001
|
[1] |
COCK
|
|
| 8. |
S0521451
|
[4] |
BOLT M16X2.0X40
|
|
| 9. |
2114-1813
|
[2] |
SHIM,0.8T
|
|
