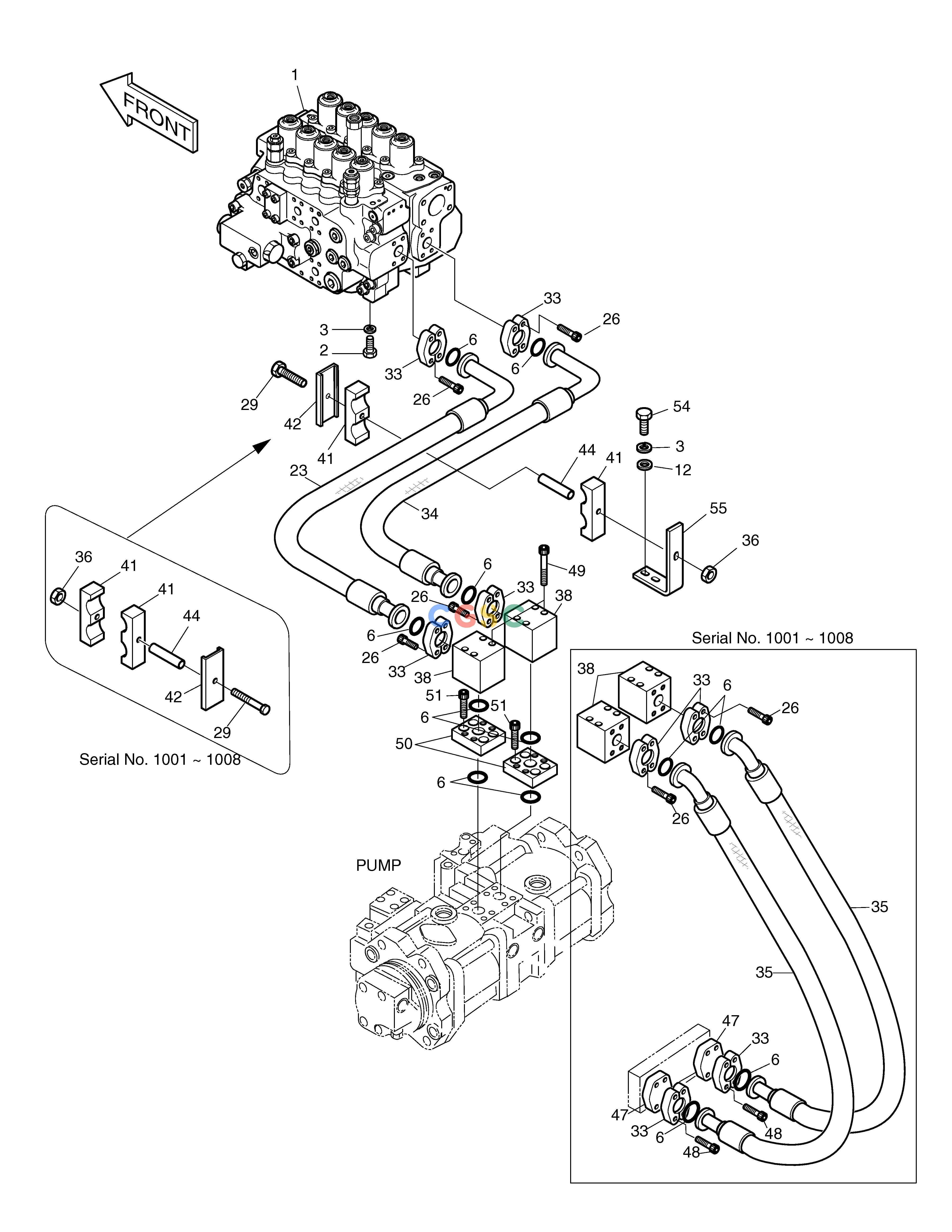

斗山零件查询MAIN PIPING(1)-PUMP SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1997
|
[-] |
MAIN PIPING
|
|
| 1. |
2426-1230
|
[1] |
CONTROL VALVE
|
|
| 1. |
2426-1230A
|
[1] |
CONTROL VALVE
|
|
| 1. |
426-00068
|
[1] |
CONTROL VALVE
|
|
| 12. |
2114-1058D30
|
[2] |
. WASHER
|
|
| 2. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 23. |
2184-1100D56
|
[1] |
HOSE PF1-1500L
|
|
| 26. |
S2212261
|
[24] |
SOCKET-HEAD BOLT
|
|
| 26. |
S2212261
|
[16] |
SOCKET-HEAD BOLT
|
S2212266
|
| 26. |
S2212266
|
[16] |
BOLT
|
|
| 29. |
S0566453
|
[1] |
BOLT M16X2.0X110
|
|
| 3. |
S5102703
|
[4] |
WASHER
|
|
| 3. |
S5102703
|
[6] |
WASHER
|
|
| 33. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 33. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 34. |
2184-1100D143
|
[1] |
HOSE
|
|
| 35. |
2184-1098D55
|
[2] |
HOSE
|
|
| 36. |
S4012933
|
[1] |
NUT
|
|
| 38. |
2423-1458
|
[2] |
BLOCK
|
|
| 38. |
2423-1555
|
[2] |
BLOCK
|
|
| 41. |
2124-1548
|
[2] |
CLAMP;HOSE
|
|
| 42. |
2191-3705B
|
[1] |
PLATE
|
2191-3705C
|
| 42. |
2191-3705C
|
[1] |
PLATE
|
|
| 44. |
2114-1737
|
[1] |
SPACER
|
|
| 47. |
2181-2532D2
|
[2] |
FLANGE;DUMMY
|
|
| 48. |
S2212561
|
[8] |
BOLT;SOCKET M10X1.5X45
|
|
| 49. |
S2216673
|
[8] |
BOLT;SOCKET M12X1.75X100
|
|
| 50. |
2423-1457
|
[2] |
BLOCK
|
|
| 51. |
S2215261
|
[8] |
WASHER,HARD(M11)
|
S2215266
|
| 51. |
S2215266
|
[8] |
BOLT
|
|
| 54. |
S0515453
|
[2] |
BOLT
|
|
| 55. |
2891-1697
|
[1] |
PLATE
|
|
| 6. |
2180-1026D19
|
[12] |
O-RING
|
|
| 6. |
2180-1026D19
|
[8] |
O-RING
|
|
