斗山零件查询MAIN PIPING(2)-BOOM SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1997
|
[-] |

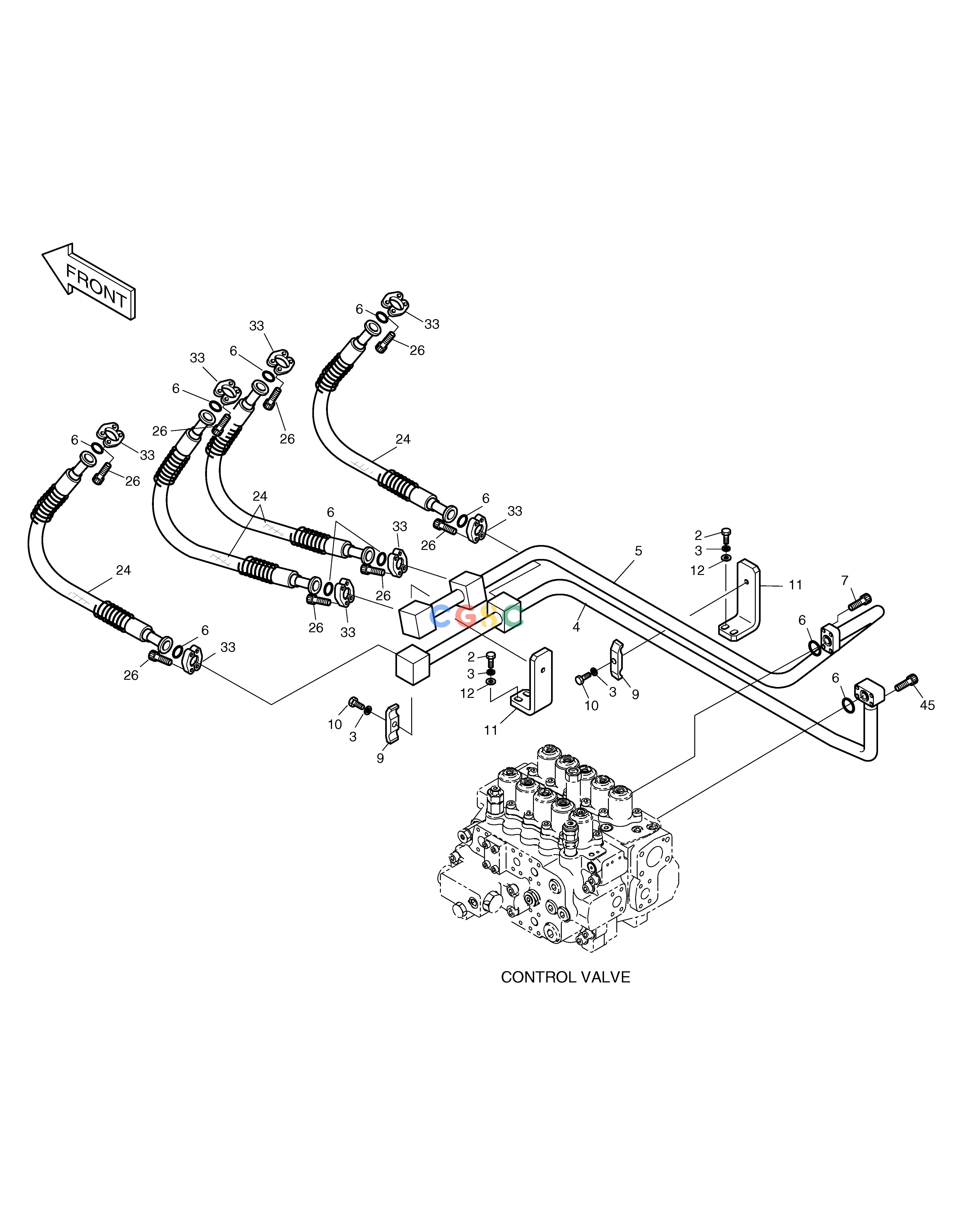

MAIN PIPING
|
|
| 10. |
S0561053
|
[2] |
BOLT
|
|
| 11. |
2891-1493A
|
[2] |
PLATE
|
|
| 12. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 2. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 24. |
2184-1081D124
|
[4] |
HOSE PF1-1180L
|
|
| 26. |
S2212261
|
[32] |
SOCKET-HEAD BOLT
|
S2212266
|
| 26. |
S2212266
|
[32] |
BOLT
|
|
| 3. |
S5102703
|
[6] |
WASHER
|
|
| 33. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 4. |
2140-1449A
|
[1] |
PIPE;BOOM UP
|
|
| 45. |
S2212761
|
[4] |
BOLT;SOCKET
|
S2212766
|
| 45. |
S2212766
|
[4] |
BOLT;SOCKET M10X1.5X55
|
|
| 5. |
2140-1450A
|
[1] |
PIPE;BOOM DOWN
|
2140-1450B
|
| 5. |
2140-1450B
|
[1] |
PIPE;BOOM DOWN
|
|
| 6. |
2180-1026D19
|
[10] |
O-RING
|
|
| 7. |
S2212361
|
[4] |
BOLT;SOCKET M10X1.5X35
|
S2212366
|
| 7. |
S2212366
|
[4] |
BOLT
|
|
| 9. |
2124-1025D5
|
[2] |
CLAMP;PIPE
|
|
