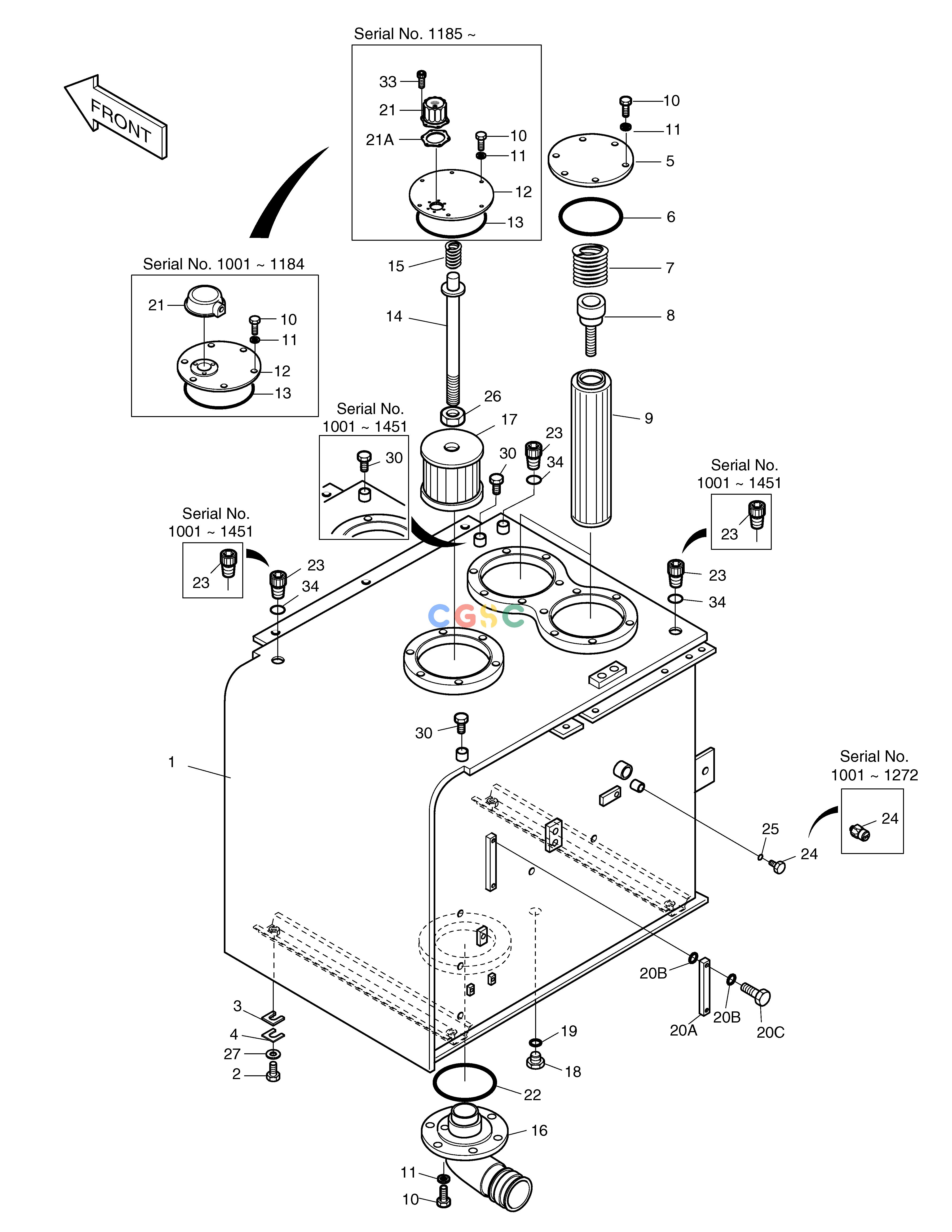

斗山零件查询OIL TANK SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2470-2101A
|
[-] |
OIL TANK ASS'Y
|
|
| 1. |
2470-2100E
|
[1] |
TANK;OIL 235L
|
2470-2100G
|
| 1. |
2470-2100G
|
[1] |
TANK;OIL 235L
|
2470-2100H
|
| 1. |
2470-2100H
|
[1] |
TANK;OIL 235L
|
2470-2100J
|
| 1. |
2470-2100J
|
[1] |
TANK;OIL 235L
|
2470-2100K
|
| 1. |
2470-2100K
|
[1] |
TANK;OIL 235L
|
|
| 10. |
S0512053
|
[24] |
BOLT
|
|
| 11. |
S5102603
|
[24] |
. WASHER
|
|
| 12. |
2473-1087A
|
[1] |
COVER
|
|
| 12. |
2473-1087B
|
[1] |
COVER;FLANGE
|
|
| 13. |
S8012200
|
[1] |
O-RING
|
|
| 14. |
2136-1433
|
[1] |
ROD
|
|
| 15. |
2129-1008
|
[1] |
SPRING,COMPRESS
|
|
| 16. |
2140-1455
|
[1] |
PIPE;FUEL
|
|
| 17. |
2471-9401A
|
[1] |
FILTER;SUCTION
|
|
| 18. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 19. |
S8000181
|
[1] |
O-RING
|
|
| 2. |
S0521451
|
[4] |
BOLT M16X2.0X40
|
|
| 20. |
2119-1007
|
[1] |
GAUGE;LEVEL
|
|
| 20A. |
2412-1008
|
[1] |
PLATE
|
|
| 20B. |
S8000110
|
[4] |
O-RING
|
|
| 20C. |
2120-1063
|
[2] |
BOLT
|
|
| 21. |
2422-9025
|
[1] |
BREATHER;AIR
|
|
| 21. |
422-00027A
|
[1] |
BREATHER;AIR
|
|
| 21A. |
180-00200
|
[1] |
PACKING
|
|
| 22. |
S8011650
|
[1] |
O-RING
|
|
| 23. |
2181-1116D2
|
[2] |
PLUG
|
|
| 23. |
2181-1116D2
|
[3] |
PLUG
|
|
| 24. |
2549-1135D2
|
[1] |
SWITCH;PRESSURE
|
|
| 24. |
2181-2667
|
[1] |
PLUG
|
|
| 25. |
S8180221
|
[1] |
RING;SEAL
|
|
| 26. |
S4012633
|
[1] |
NUT
|
|
| 27. |
2114-1816
|
[4] |
WASHER;HARD
|
|
| 3. |
2114-1813
|
[2] |
SHIM,0.8T
|
|
| 30. |
S0514653
|
[2] |
BOLT M12X1.75X16
|
|
| 33. |
S2202761
|
[6] |
BOLT;SOCKET M5X0.8X8
|
2120-2166D41
|
| 33. |
2120-2166D41
|
[6] |
BOLT
|
|
| 34. |
S8000111
|
[3] |
O-RING
|
|
| 4. |
2114-1814
|
[2] |
SHIM,1.6T
|
|
| 5. |
2473-1085
|
[2] |
COVER
|
2473-1085A
|
| 5. |
2473-1085A
|
[2] |
COVER
|
|
| 6. |
S8012000
|
[2] |
O-RING
|
|
| 7. |
2129-1393
|
[2] |
SPRING
|
|
| 8. |
2426-1175
|
[2] |
VALVE;BY-PASS
|
|
| 9. |
2471-9051
|
[2] |
ELEMENT;FILTER
|
2471-9051A
|
| 9. |
2471-9051A
|
[2] |
ELEMENT;FILTER
|
2471-9051B
|
| 9. |
2471-9051B
|
[2] |
ELEMENT;FILTER
|
|
