神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (02-002) - HYD LINES, BOOM 6.5M (21FT 4IN) (BREAKER, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
630 次

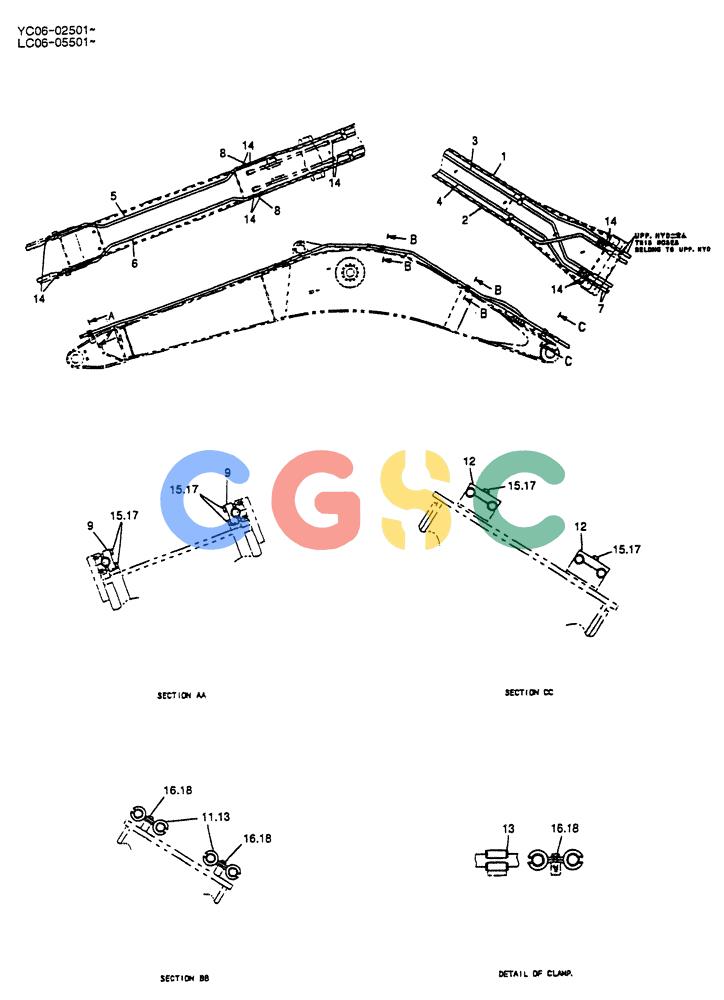

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC42H00013F2 | [1] | HYD LINES, BOOM 6. 5M | |
| 1. | LC42H01056P1 | [1] | RIGID TUBE | KOB |
| 2. | LC42H01057P1 | [1] | RIGID TUBE | KOB |
| 3. | LC42H01058P1 | [1] | RIGID TUBE | KOB |
| 4. | LC42H01059P1 | [1] | RIGID TUBE | KOB |
| 5. | LC42H01060P2 | [1] | TUBE | KOB |
| 6. | LC42H01061P2 | [1] | TUBE | KOB |
| 7. | ZX20H16145 | [2] | HOSE | KOB1450mm Long (57-5/64 in) |
| 8. | HG23T16016G1 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 9. | 2432T5924 | [2] | CLAMP | KOBSingle Block -- 80x50x25mm |
| 11. | LC42H01103P1 | [8] | CLAMP | KOB |
| 12. | LC42H01021P1 | [2] | CLAMP | KOB |
| 13. | LC42H01020P1 | [8] | BUSHING,34mm ID x 53mm OD x 68mm L | KOB |
| 14. | ZD12A02100 | [12] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 15. | ZS18C12055 | [8] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 16. | ZS18C10030 | [8] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 17. | ZW16H12000 | [8] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 18. | ZW16H10000 | [8] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
