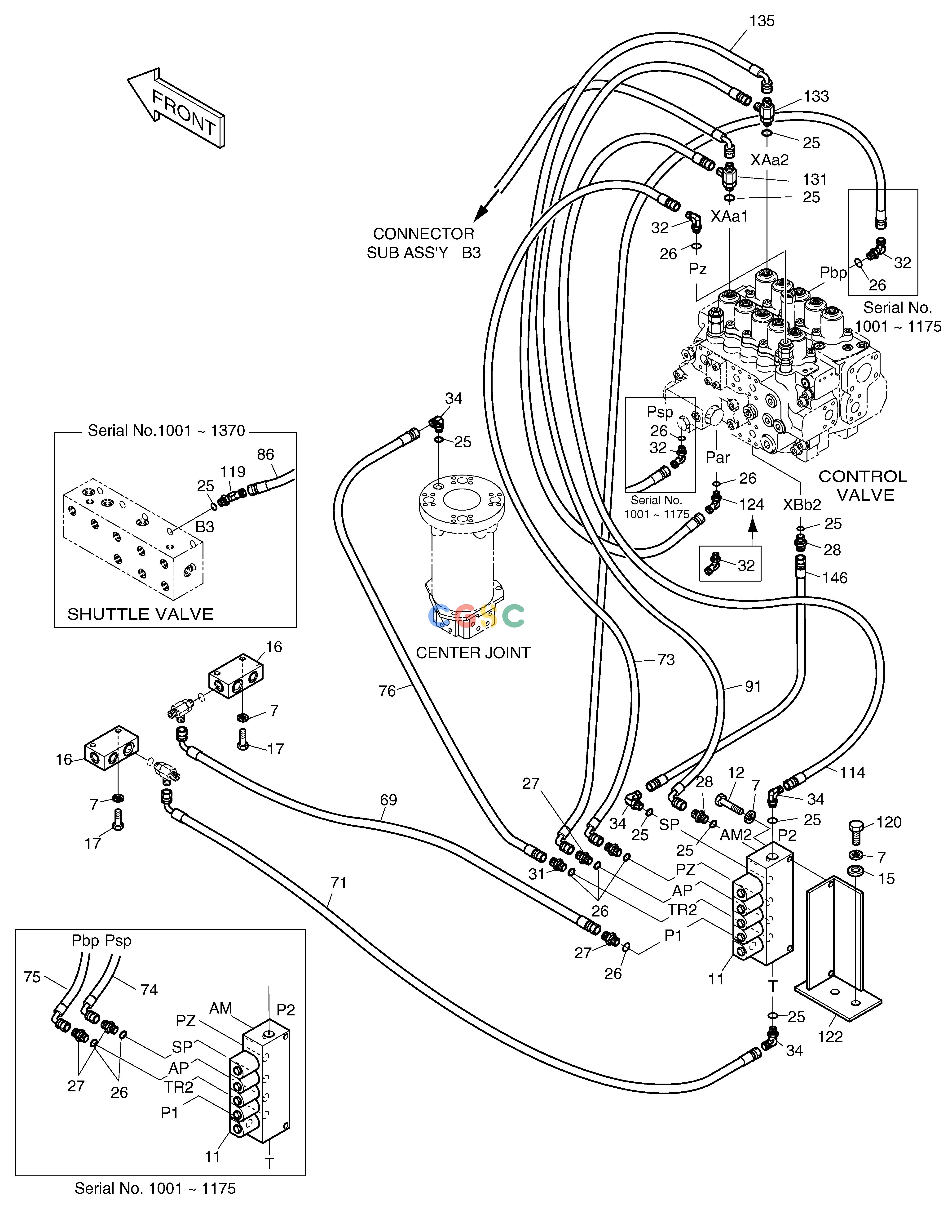

斗山零件查询PILOT PIPING(3) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
323 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1920A
|
[-] |
PILOT PIPING
|
|
| 11. |
2426-9040A
|
[1] |
VALVE;SOLENOID
|
426-00082
|
| 11. |
426-00082
|
[1] |
VALVE;SOLENOID
|
|
| 114. |
2184-1045D212
|
[1] |
HOSE PF3/8-1000L
|
|
| 119. |
2181-2419D2
|
[1] |
ELBOW
|
|
| 12. |
S0558953
|
[2] |
BOLT
|
|
| 120. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 122. |
2197-2166
|
[1] |
BRACKET
|
|
| 124. |
2181-1702D56
|
[1] |
ELBOW
|
|
| 131. |
2181-1951D16
|
[1] |
TEE
|
|
| 133. |
2181-1951D11
|
[1] |
TEE
|
|
| 135. |
2184-1046D83
|
[1] |
HOSE PF1/4-830L
|
|
| 135. |
2184-1046D191
|
[1] |
HOSE PF1/4-870L
|
|
| 146. |
2184-1046D123
|
[1] |
HOSE PF3/8-1500L
|
2184-1046D237
|
| 146. |
2184-1046D237
|
[1] |
HOSE PF3/8-1100L
|
|
| 15. |
2114-1058D10
|
[2] |
WASHER
|
|
| 16. |
2423-1470
|
[2] |
BLOCK
|
|
| 17. |
S0558653
|
[4] |
BOLT M10X1.5X55
|
|
| 25. |
S8000141
|
[7] |
O-RING
|
|
| 25. |
S8000141
|
[8] |
O-RING
|
|
| 25. |
S8000141
|
[7] |
O-RING
|
|
| 26. |
S8000111
|
[6] |
O-RING
|
|
| 26. |
S8000111
|
[4] |
O-RING
|
|
| 27. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 27. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 31. |
2181-1126D89
|
[1] |
ADAPTER PFO1/4-PF3/8
|
|
| 32. |
2181-1702D4
|
[4] |
ELBOW
|
|
| 32. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 32. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 34. |
2181-1702D5
|
[3] |
ELBOW
|
|
| 34. |
2181-1702D5
|
[4] |
ELBOW
|
|
| 69. |
2184-1046D117
|
[1] |
HOSE PF1/4-1700L
|
|
| 7. |
S5102603
|
[8] |
. WASHER
|
|
| 71. |
2184-1046D203
|
[1] |
HOSE PF3/8-1700L
|
|
| 73. |
2184-1046D143
|
[1] |
HOSE PF1/4-1150L
|
2184-1046D76
|
| 73. |
2184-1046D76
|
[1] |
HOSE PF1/4-1200L
|
|
| 74. |
2184-1046D51
|
[1] |
HOSE PF1/4-980L
|
|
| 75. |
2184-1046D155
|
[1] |
HOSE PF1/4-1500L
|
|
| 76. |
2184-1045D133
|
[1] |
HOSE PF3/8-1500L
|
|
| 76. |
2184-1060D77
|
[1] |
HOSE PF3/8-1500L
|
|
| 86. |
2184-1046D236
|
[1] |
HOSE PF3/8-570L
|
|
| 91. |
2184-1046D212
|
[1] |
HOSE PF3/8-1200L
|
|
