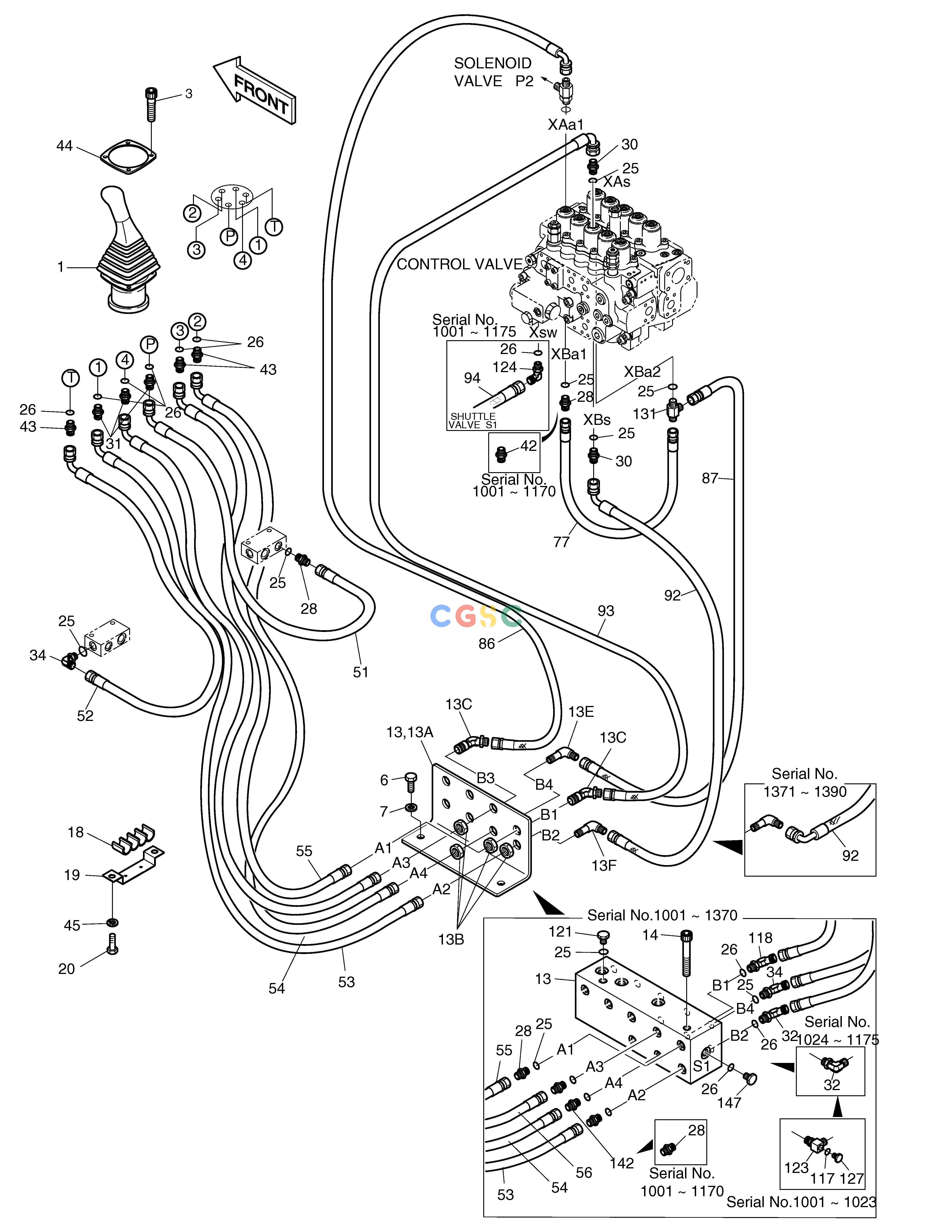

斗山零件查询PILOT PIPING(4) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1920A
|
[-] |
PILOT PIPING
|
|
| 1. |
2420-9516
|
[1] |
REMOTE CONTROL V/V(LH)
|
420-00237
|
| 1. |
420-00237
|
[1] |
REMOTE CONTROL VALVE(L.H.)
|
|
| 117. |
S8180221
|
[1] |
RING;SEAL
|
|
| 118. |
2181-2419D1
|
[1] |
ELBOW
|
|
| 121. |
2181-1950D2
|
[1] |
PLUG
|
|
| 123. |
2181-2666
|
[1] |
TEE
|
|
| 124. |
2181-1702D56
|
[1] |
ELBOW
|
|
| 127. |
2181-2667
|
[1] |
PLUG
|
|
| 13. |
2420-9530
|
[1] |
VALVE;SHUTTLE
|
|
| 13. |
181-00500
|
[1] |
CONNECTOR SUB ASS'Y
|
|
| 131. |
2181-1951D16
|
[1] |
TEE
|
|
| 13A. |
621-00937
|
[1] |
PLATE
|
|
| 13B. |
121-00010D1
|
[4] |
NUT
|
|
| 13C. |
DS2421001
|
[2] |
ELBOW
|
|
| 13E. |
DS2457001
|
[1] |
ELBOW 2PF3/8
|
|
| 13F. |
DS2456001
|
[1] |
ELBOW
|
|
| 14. |
S2213661
|
[2] |
BOLT;SOCKET M10X1.5X100
|
|
| 142. |
181-00144D10
|
[1] |
ADAPTER;ORIFICE
|
|
| 147. |
2181-1950D1
|
[1] |
PLUG
|
|
| 18. |
2124-1594A
|
[2] |
CLAMP;PLASTIC
|
|
| 19. |
2124-1595A
|
[2] |
CLAMP;STEEL
|
|
| 20. |
S0508553
|
[4] |
BOLT
|
|
| 25. |
S8000141
|
[12] |
O-RING
|
|
| 25. |
S8000141
|
[6] |
O-RING
|
|
| 26. |
S8000111
|
[10] |
O-RING
|
|
| 26. |
S8000111
|
[9] |
O-RING
|
|
| 26. |
S8000111
|
[7] |
O-RING
|
|
| 28. |
2181-1126D7
|
[5] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[3] |
ADAPTER
|
|
| 3. |
S2205061
|
[4] |
BOLT;SOCKET M6X1.0X25
|
|
| 30. |
2181-1126D36
|
[2] |
ADAPTER
|
|
| 31. |
2181-1126D89
|
[3] |
ADAPTER PFO1/4-PF3/8
|
|
| 32. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 32. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 32. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 32. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 34. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 34. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 42. |
2426-9034
|
[1] |
VALVE;SHOCKLESS
|
|
| 43. |
2181-1126D120
|
[3] |
ADAPTER PFO1/4-PF3/8
|
|
| 44. |
2621-2752
|
[1] |
PLATE
|
|
| 45. |
S5102503
|
[4] |
. WASHER
|
|
| 51. |
2184-1267D9
|
[1] |
HOSE PF3/8-1950L
|
|
| 52. |
2184-1267D10
|
[1] |
HOSE PF3/8-2050L
|
|
| 53. |
2184-1267D7
|
[1] |
HOSE PF3/8-3000L
|
|
| 54. |
2184-1267D7
|
[1] |
HOSE PF3/8-3000L
|
|
| 55. |
2184-1267D7
|
[1] |
HOSE PF3/8-3000L
|
|
| 56. |
2184-1267D7
|
[1] |
HOSE PF3/8-3000L
|
|
| 6. |
S0512053
|
[2] |
BOLT
|
|
| 7. |
S5102603
|
[2] |
. WASHER
|
|
| 77. |
2184-1045D145
|
[1] |
HOSE PF3/8-400L
|
|
| 77. |
2184-1026D74
|
[1] |
HOSE PF3/8-400L
|
|
| 86. |
2184-1046D236
|
[1] |
HOSE PF3/8-570L
|
|
| 87. |
2184-1045D219
|
[1] |
HOSE PF3/8-870L
|
|
| 92. |
2184-1046D83
|
[1] |
HOSE PF1/4-830L
|
|
| 92. |
2184-1061D217
|
[1] |
HOSE PF3/8-900L
|
2184-1046D273
|
| 92. |
2184-1046D273
|
[1] |
HOSE PF3/8-810L
|
|
| 93. |
2184-1046D144
|
[1] |
HOSE PF1/4-630L
|
|
| 93. |
2184-1046D99
|
[1] |
HOSE PF3/8-700L
|
2184-1046D276
|
| 93. |
2184-1046D276
|
[1] |
HOSE PF3/8-630L
|
|
| 94. |
2184-1046D68
|
[1] |
HOSE PF1/4-600L
|
|
