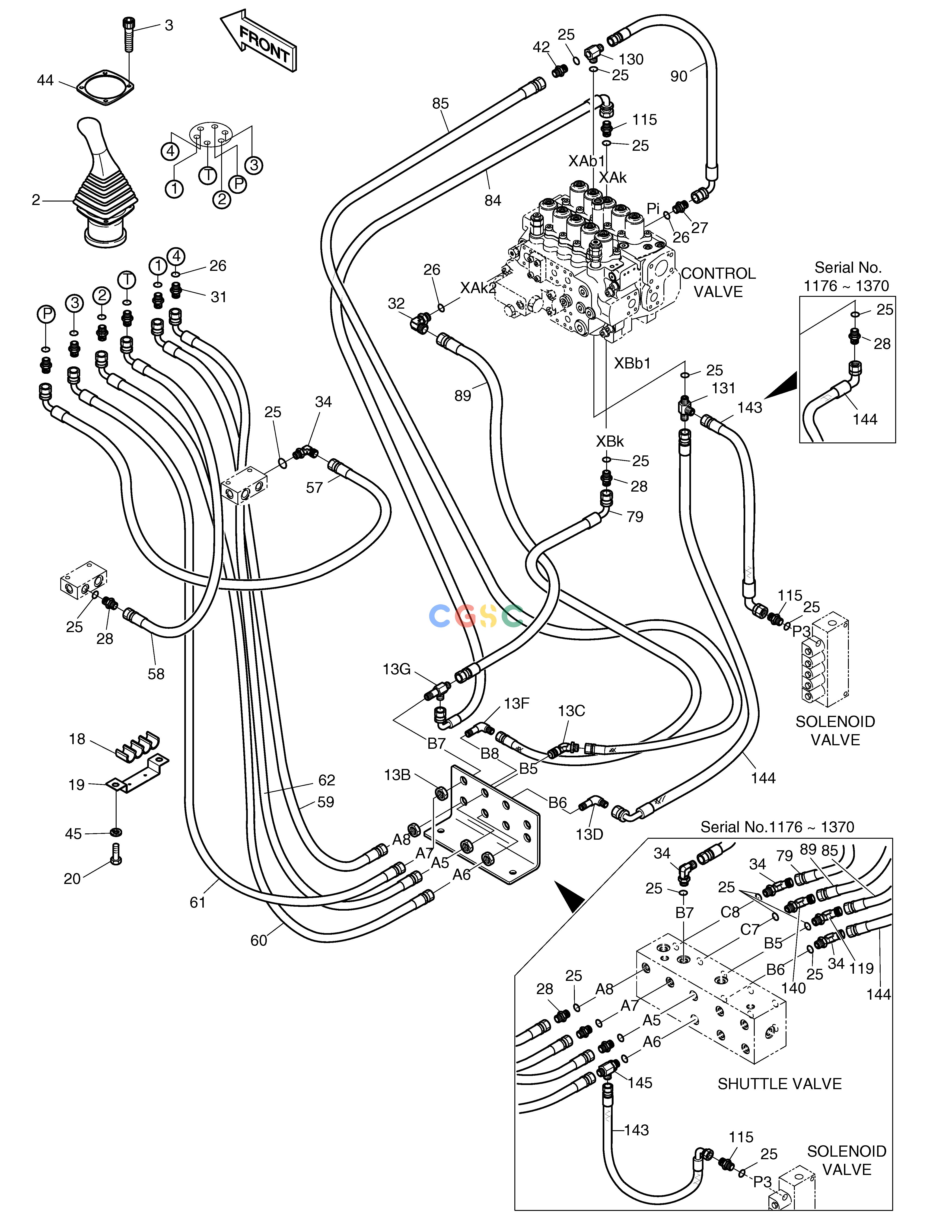

斗山零件查询PILOT PIPING(5-1) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1920A
|
[-] |
PILOT PIPING
|
|
| 115. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 119. |
2181-2419D2
|
[1] |
ELBOW
|
|
| 130. |
2181-2684
|
[1] |
TEE PFO3/8-PF3/8-PF1/4
|
|
| 131. |
2181-1951D16
|
[1] |
TEE
|
|
| 13B. |
121-00010D1
|
[4] |
NUT
|
|
| 13C. |
DS2421001
|
[1] |
ELBOW
|
|
| 13D. |
DS2457002
|
[1] |
ELBOW
|
|
| 13F. |
DS2456001
|
[1] |
ELBOW
|
|
| 13G. |
DS2411001
|
[1] |
TEE
|
|
| 140. |
2181-2419D6
|
[1] |
ELBOW PFO3/8-1/4
|
|
| 143. |
2184-1046D124
|
[1] |
HOSE PF3/8-550L
|
|
| 143. |
2184-1046D294
|
[1] |
HOSE PF3/8-1300L
|
|
| 144. |
2184-1046D213
|
[1] |
HOSE PF3/8-1050L
|
|
| 145. |
181-00360D1
|
[1] |
TEE;ORIFICE PFO3/8-2PF3/8
|
|
| 18. |
2124-1594A
|
[1] |
CLAMP;PLASTIC
|
|
| 19. |
2124-1595A
|
[1] |
CLAMP;STEEL
|
|
| 2. |
2420-9517
|
[1] |
REMOTE CONTROL V/V(RH)
|
420-00238
|
| 2. |
420-00238
|
[1] |
REMOTE CONTROL VALVE(R.H.)
|
|
| 20. |
S0508553
|
[2] |
BOLT
|
|
| 25. |
S8000141
|
[17] |
O-RING
|
|
| 25. |
S8000141
|
[8] |
O-RING
|
|
| 26. |
S8000111
|
[8] |
O-RING
|
|
| 27. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[6] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 3. |
S2205061
|
[4] |
BOLT;SOCKET M6X1.0X25
|
|
| 31. |
2181-1126D89
|
[6] |
ADAPTER PFO1/4-PF3/8
|
|
| 32. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 34. |
2181-1702D5
|
[4] |
ELBOW
|
|
| 34. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 42. |
181-00144D4
|
[1] |
ADAPTER;ORIFICE
|
|
| 44. |
2621-2752
|
[1] |
PLATE
|
|
| 45. |
S5102503
|
[2] |
. WASHER
|
|
| 57. |
2184-1060D151
|
[1] |
HOSE PF3/8-1950L
|
|
| 58. |
2184-1060D151
|
[1] |
HOSE PF3/8-1950L
|
|
| 59. |
2184-1060D149
|
[1] |
HOSE PF3/8-2800L
|
|
| 60. |
2184-1060D149
|
[1] |
HOSE PF3/8-2800L
|
|
| 61. |
2184-1060D149
|
[1] |
HOSE PF3/8-2800L
|
|
| 62. |
2184-1060D149
|
[1] |
HOSE PF3/8-2800L
|
|
| 79. |
2184-1046D237
|
[1] |
HOSE PF3/8-1100L
|
|
| 84. |
2184-1046D240
|
[1] |
HOSE PF3/8-950L
|
2184-1045D252
|
| 84. |
2184-1045D252
|
[1] |
HOSE PF3/8-690L
|
|
| 85. |
2184-1045D197
|
[1] |
HOSE PF3/8-650L
|
2184-1045D252
|
| 85. |
2184-1045D252
|
[1] |
HOSE PF3/8-690L
|
|
| 89. |
2184-1045D158
|
[1] |
HOSE PF1/4-650L
|
2184-1046D81
|
| 89. |
2184-1046D81
|
[1] |
HOSE PF1/4-650L
|
|
| 90. |
2184-1046D81
|
[1] |
HOSE PF1/4-650L
|
|
