斗山零件查询PILOT PIPING(6) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

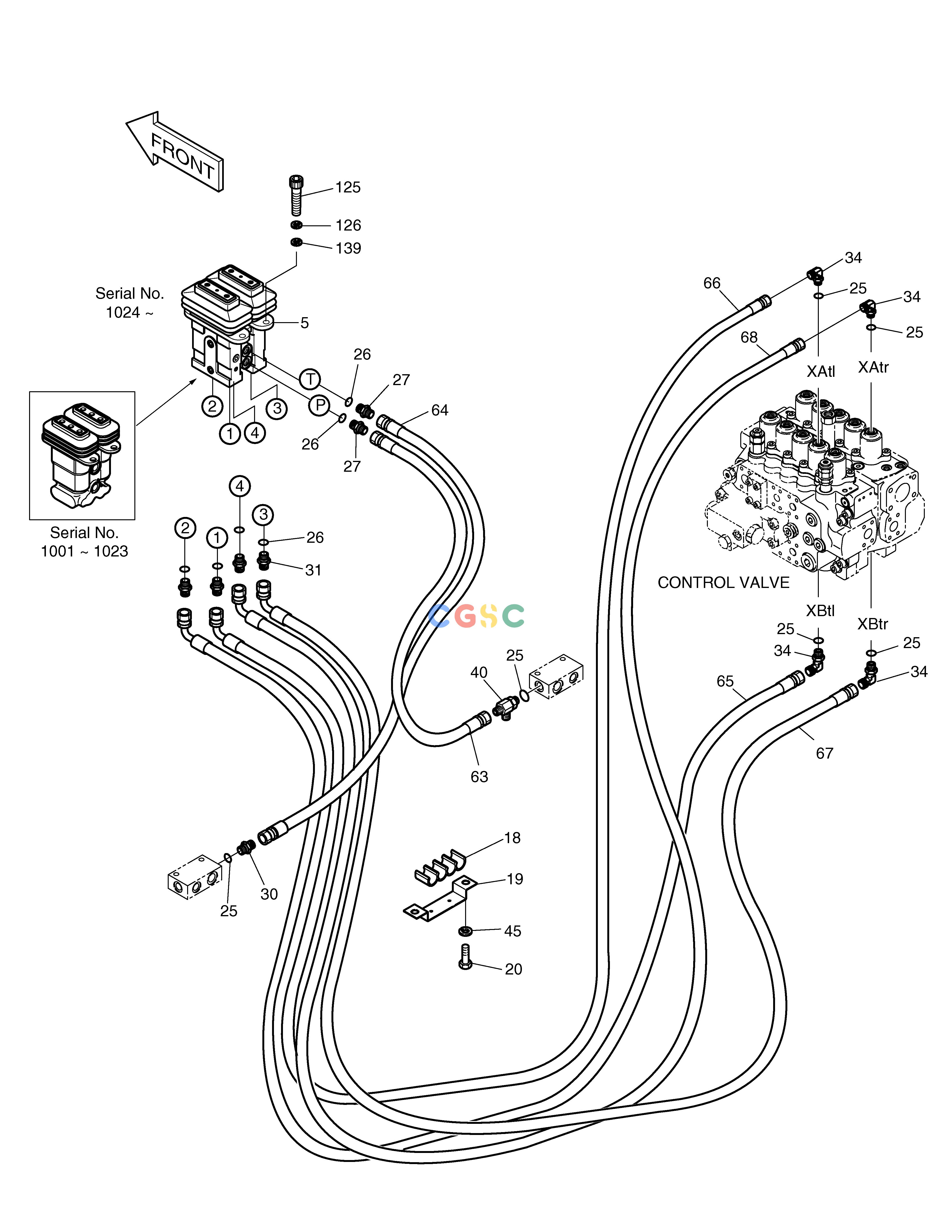

2400-1920A
|
[-] |
PILOT PIPING
|
|
| 125. |
S2212261
|
[4] |
SOCKET-HEAD BOLT
|
S2212266
|
| 125. |
S2212266
|
[4] |
BOLT
|
|
| 125. |
S2212061
|
[4] |
BOLT;SOCKET M10X1.5X25
|
|
| 126. |
S5110601
|
[4] |
WASHER;SPRING M10
|
S5110603
|
| 126. |
S5110603
|
[4] |
WASHER
|
|
| 139. |
S5010613
|
[4] |
WASHER
|
|
| 18. |
2124-1594A
|
[1] |
CLAMP;PLASTIC
|
|
| 19. |
2124-1595A
|
[1] |
CLAMP;STEEL
|
|
| 20. |
S0508553
|
[2] |
BOLT
|
|
| 25. |
S8000141
|
[6] |
O-RING
|
|
| 26. |
S8000111
|
[6] |
O-RING
|
|
| 27. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 30. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 31. |
2181-1126D89
|
[4] |
ADAPTER PFO1/4-PF3/8
|
|
| 34. |
2181-1702D5
|
[4] |
ELBOW
|
|
| 40. |
2181-1951D7
|
[1] |
TEE
|
|
| 45. |
S5102503
|
[2] |
. WASHER
|
|
| 5. |
2420-9501A
|
[1] |
PEDAL VALVE
|
|
| 5. |
2420-9617A
|
[1] |
VALVE;PEDAL
|
|
| 5. |
420-00030
|
[1] |
PEDAL VALVE
|
|
| 63. |
2184-1045D98
|
[1] |
HOSE PF1/4-380L
|
|
| 63. |
2184-1045D174
|
[1] |
HOSE PF1/4-330L
|
|
| 64. |
2184-1045D98
|
[1] |
HOSE PF1/4-380L
|
|
| 65. |
2184-1046D228
|
[1] |
HOSE PF3/8-3250L
|
|
| 66. |
2184-1046D243
|
[1] |
HOSE PF3/8-3600L
|
|
| 67. |
2184-1046D229
|
[1] |
HOSE PF3/8-3400L
|
|
| 68. |
2184-1046D244
|
[1] |
HOSE PF3/8-3800L
|
|
