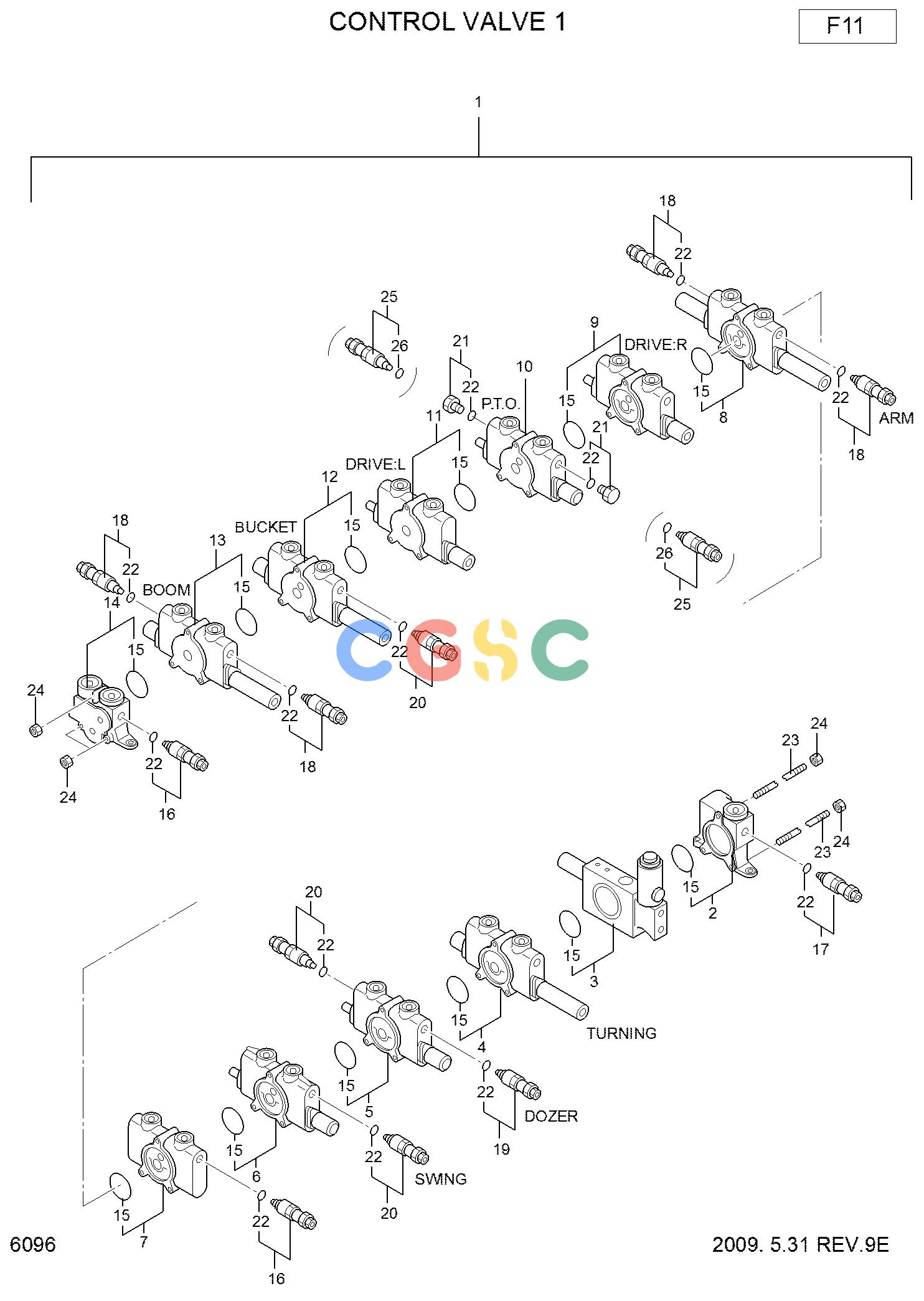

现代零件查询R22-7 CONTROL VALVE 1EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
672 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03541
|
[1] |
CONTROL VALVE ASSY
|
|
| 1. |
XJDH-04563
|
[1] |
CONTROL VALVE
|
|
| 2. |
XJDH-03542
|
[1] |
INLET SECTION ASSY
|
|
| 3. |
XJDH-03543
|
[1] |
SPACER SECTION ASSY
|
|
| 4. |
XJDH-03544
|
[1] |
BLOCK ASSY
|
|
| 5. |
XJDH-03545
|
[1] |
BLOCK ASSY
|
|
| 6. |
XJDH-03546
|
[1] |
BLOCK ASSY
|
|
| 7. |
XJDH-03547
|
[1] |
SPACER SECTION ASSY
|
|
| 8. |
XJDH-03548
|
[1] |
BLOCK ASSY
|
|
| 9. |
XJDH-03549
|
[1] |
BLOCK ASSY
|
|
| 10. |
XJDH-03550
|
[1] |
BLOCK ASSY
|
|
| 11. |
XJDH-03551
|
[1] |
BLOCK ASSY
|
|
| 12. |
XJDH-03552
|
[1] |
BLOCK ASSY
|
|
| 13. |
XJDH-03553
|
[1] |
BLOCK ASSY
|
|
| 14. |
XJDH-03554
|
[1] |
INLET SETION ASSY
|
|
| 15. |
XJDH-03555
|
[12] |
O-RING
|
|
| 16. |
XJDH-03556
|
[2] |
RELIEF VALVE ASSY
|
|
| 17. |
XJDH-03557
|
[1] |
RELIEF VALVE ASSY
|
|
| 18. |
XJDH-03558
|
[4] |
RELIEF VALVE ASSY
|
|
| 19. |
XJDH-03559
|
[1] |
RELIEF VALVE ASSY
|
|
| 20. |
XJDH-03560
|
[3] |
ANTI-VOID VALVE ASSY
|
|
| 21. |
XJDH-03561
|
[2] |
PLUG
|
|
| 22. |
XJDH-03247
|
[13] |
O-RING
|
|
| 23. |
XJDH-03562
|
[3] |
ROD-TIE
|
|
| 24. |
XJDH-00186
|
[6] |
NUT
|
|
| 25. |
XJDH-03563
|
[2] |
RELIEF VALVE ASSY
|
|
| 26. |
XJDH-03247
|
[2] |
O-RING
|
|
