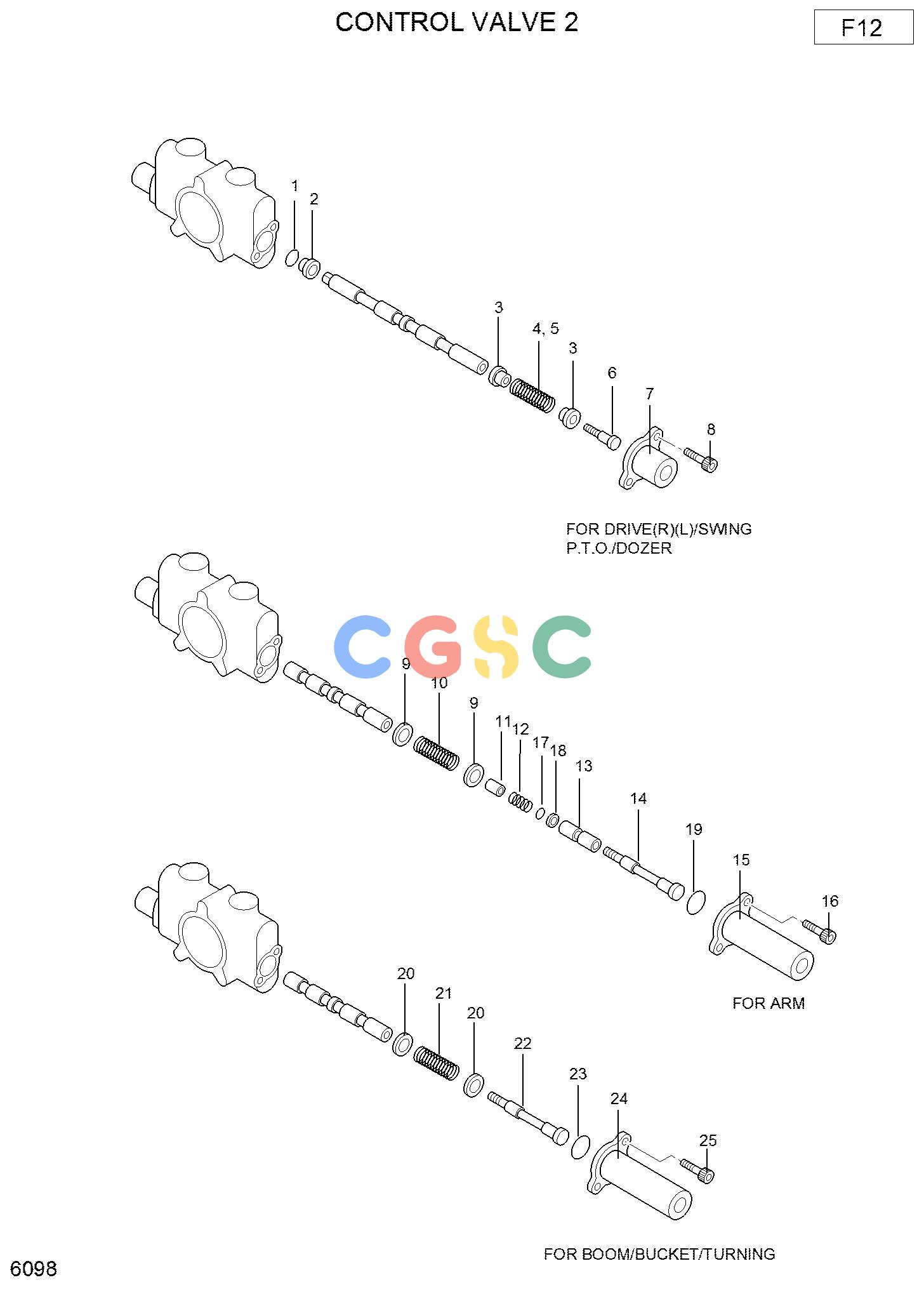

现代零件查询R22-7 CONTROL VALVE 2EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03564
|
[2] |
O-RING
|
|
| 2. |
XJDH-03565
|
[2] |
RING-WIPER
|
|
| 3. |
XJDH-03566
|
[2] |
SEAT-SPRING
|
|
| 4. |
XJDH-03567
|
[1] |
SPRING
|
|
| 5. |
XJDH-03568
|
[1] |
SPRING
|
|
| 6. |
XJDH-03569
|
[1] |
SCREW-CAP
|
|
| 7. |
XJDH-03570
|
[1] |
CAP
|
|
| 8. |
XJDH-02876
|
[2] |
BOLT-SOCKET HEAD
|
|
| 9. |
XJDH-03255
|
[2] |
SEAT-SPRING
|
|
| 10. |
XJDH-03571
|
[1] |
SPRING
|
|
| 11. |
XJDH-03572
|
[1] |
POPPET
|
|
| 12. |
XJDH-03269
|
[1] |
SPRING
|
|
| 13. |
XJDH-03573
|
[1] |
SPACER
|
|
| 14. |
XJDH-03574
|
[1] |
END-SPOOL
|
|
| 15. |
XJDH-03575
|
[1] |
CAP
|
|
| 16. |
XJDH-03252
|
[4] |
BOLT-SOCKET HEAD
|
|
| 17. |
XJDH-03576
|
[1] |
O-RING
|
|
| 18. |
XJDH-03577
|
[1] |
RING-WIPER
|
|
| 19. |
XJDH-03256
|
[2] |
O-RING
|
|
| 20. |
XJDH-03255
|
[2] |
SEAT-SPRING
|
|
| 21. |
XJDH-03571
|
[1] |
SPRING
|
|
| 22. |
XJDH-03578
|
[1] |
END-SPOOL
|
|
| 23. |
XJDH-03256
|
[2] |
O-RING
|
|
| 24. |
XJDH-03575
|
[1] |
CAP
|
|
| 25. |
XJDH-03252
|
[4] |
BOLT-SOCKET HEAD
|
|
