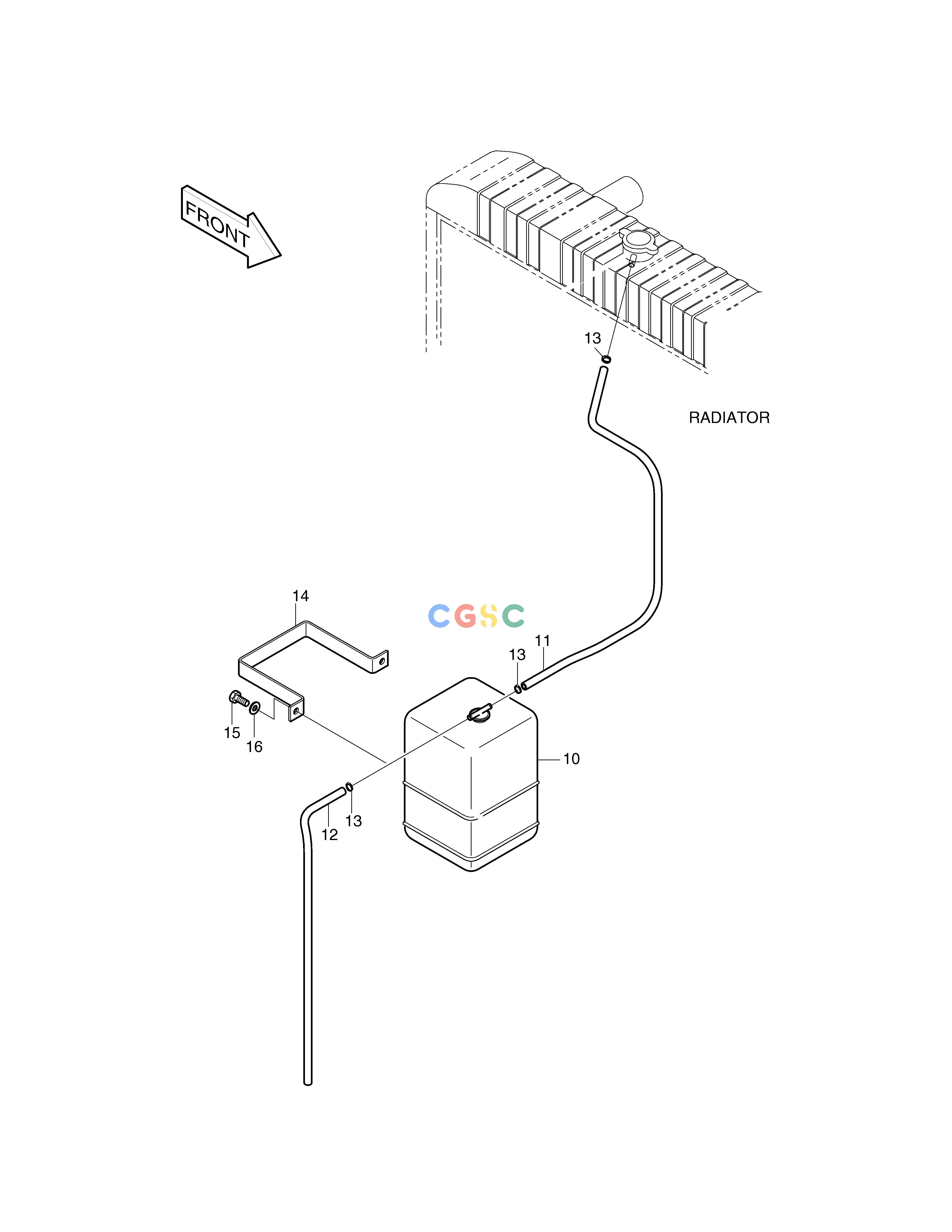

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 2201-1087A | [-] | ENGINE ASS'Y | |
| 10. | 2470-9013 | [1] | TANK;RESERVE | 2470-9017 |
| 10. | 2470-9017 | [1] | TANK;RESERVE | |
| 11. | 2185-1676 | [1] | HOSE;WATER 1300L | 2185-1774 |
| 11. | 2185-1774 | [1] | HOSE | |
| 12. | 2184-1053 | [1] | HOSE;VINYL φ7 | |
| 13. | S8450006 | [3] | CLAMP | |
| 14. | 2124-1504 | [1] | CLAMP | 2124-1690 |
| 14. | 2124-1690 | [1] | CLAMP | |
| 15. | S0512053 | [2] | BOLT | |
| 16. | S5010613 | [2] | WASHER |
