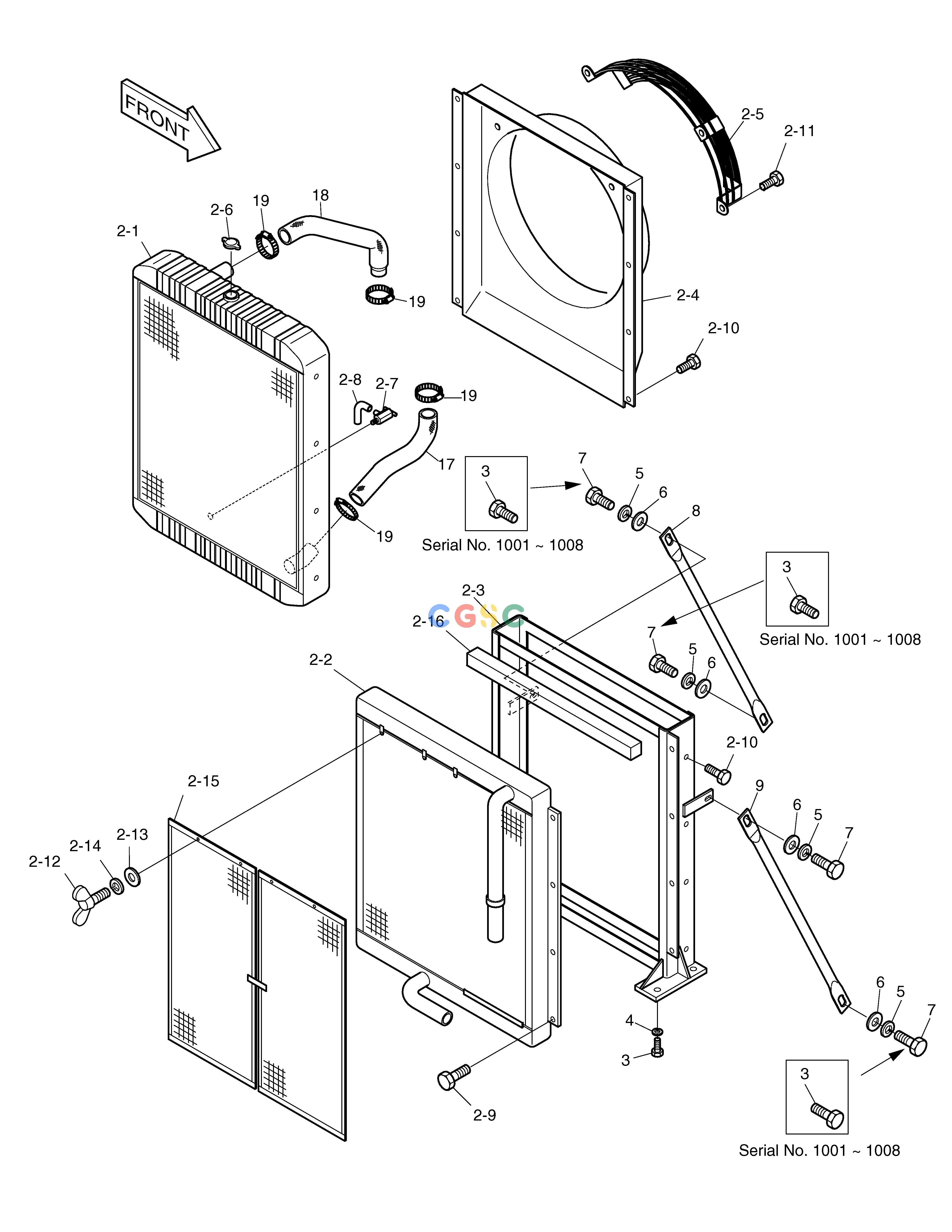

斗山零件查询RADIATOR SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2201-1087A
|
[-] |
ENGINE ASS'Y
|
|
| 17. |
2185-1707
|
[1] |
HOSE;WATER
|
|
| 18. |
2185-1740
|
[1] |
HOSE;WATER
|
|
| 19. |
S8450066
|
[4] |
CLAMP;HOSE
|
|
| 2. |
2202-9069B
|
[1] |
RADIATOR ASS'Y
|
2202-9069C
|
| 2. |
2202-9069C
|
[1] |
RADIATOR ASS'Y
|
2202-9069E
|
| 2. |
2202-9069E
|
[1] |
RADIATOR ASS'Y
|
2202-9069G
|
| 2. |
2202-9069G
|
[1] |
RADIATOR ASS'Y
|
2202-9069H
|
| 2. |
2202-9069H
|
[1] |
RADIATOR ASS'Y
|
2202-9069J
|
| 2. |
2202-9069J
|
[1] |
RADIATOR ASS'Y
|
|
| 2-1. |
13C91000
|
[1] |
RADIATOR
|
|
| 2-10. |
P1110B
|
[16] |
BOLT M10X1.25X25
|
|
| 2-11. |
P1108
|
[4] |
BOLT M8X1.25X20
|
|
| 2-12. |
P1106
|
[4] |
BOLT;WING M6X1.0X15
|
|
| 2-13. |
P1306
|
[4] |
WASHER;PLAIN
|
|
| 2-14. |
P1406
|
[4] |
WASHER;SPRING
|
|
| 2-15. |
13C96000
|
[1] |
WIRE;NET
|
|
| 2-16. |
P22
|
[2] |
SPONGE
|
|
| 2-2. |
13C92000
|
[1] |
OIL COOLER
|
|
| 2-3. |
13C93000
|
[1] |
FRAME
|
|
| 2-4. |
13C94000
|
[1] |
SHROUD
|
|
| 2-5. |
13C95000
|
[1] |
GUARD;FAN
|
|
| 2-5. |
13C95000A
|
[1] |
GUARD;FAN
|
|
| 2-6. |
P06A
|
[1] |
CAP ASS'Y
|
|
| 2-7. |
P04
|
[1] |
DRAIN COCK ASS'Y
|
|
| 2-8. |
P03
|
[1] |
HOSE;DRAIN
|
|
| 2-9. |
P1110
|
[10] |
BOLT M10X1.25X25
|
|
| 3. |
S0565151
|
[7] |
BOLT M16X2.0X45
|
|
| 3. |
S0565151
|
[4] |
BOLT M16X2.0X45
|
|
| 3. |
S0565166
|
[4] |
BOLT M16X2.0X45
|
|
| 4. |
2114-1816
|
[4] |
WASHER;HARD
|
2114-1816A
|
| 4. |
2114-1816A
|
[4] |
WASHER
|
|
| 5. |
S5102901
|
[4] |
. WASHER;SPRING
|
|
| 5. |
S5102903
|
[4] |
WASHER
|
|
| 6. |
S5010913
|
[4] |
WASHER
|
|
| 7. |
S0565051
|
[1] |
BOLT M16X2.0X40
|
|
| 7. |
S0565051
|
[4] |
BOLT M16X2.0X40
|
|
| 7. |
S0521466
|
[4] |
BOLT
|
|
| 8. |
2145-1267A
|
[1] |
STAY
|
|
| 9. |
2145-1268A
|
[1] |
STAY
|
2145-1268B
|
| 9. |
2145-1268B
|
[1] |
STAY
|
|
