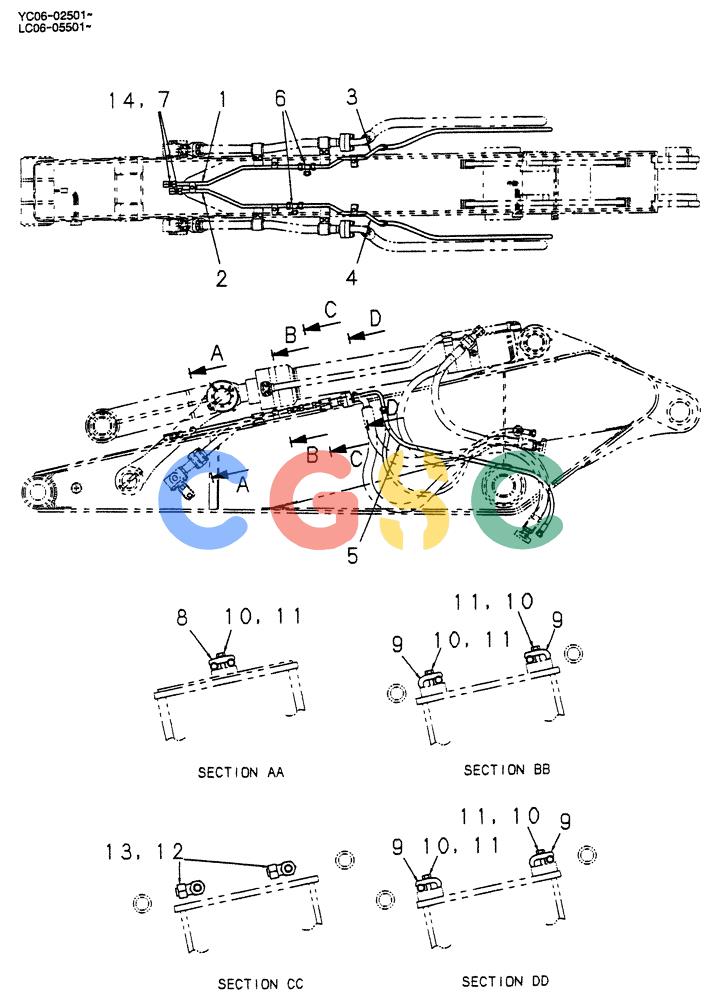

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (02-014) - HYD LINES, ARM 2.6M (8FT 6IN) (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
392 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC43H00027F1 | [1] | HYD LINES, ARM 2.6M | |
| 1. | LC43H01070P1 | [1] | TUBE | |
| 2. | LC43H01071P1 | [1] | TUBE | |
| 3. | LC43H01072P1 | [1] | TUBE | |
| 4. | LC43H01073P1 | [1] | TUBE | |
| 5. | 2444R950D20 | [2] | HOSE | KOB |
| 6. | ZA53B18000 | [2] | TEE | KOB |
| 7. | YN43H01268P1 | [2] | HYD CONNECTOR | KOB |
| 8. | ZC36X18011 | [1] | CLAMP | KOB |
| 9. | ZC26X18011 | [4] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 10. | ZS18C10040 | [5] | SCREW,Hex, M10 x 40mm | KOBM10x1.50x40mm |
| 11. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 12. | ZA93N18000 | [2] | NUT | KOB |
| 13. | ZA83P18000 | [2] | PLUG | KOB |
| 14. | 2420T4384 | [2] | PLUG | KOB |
