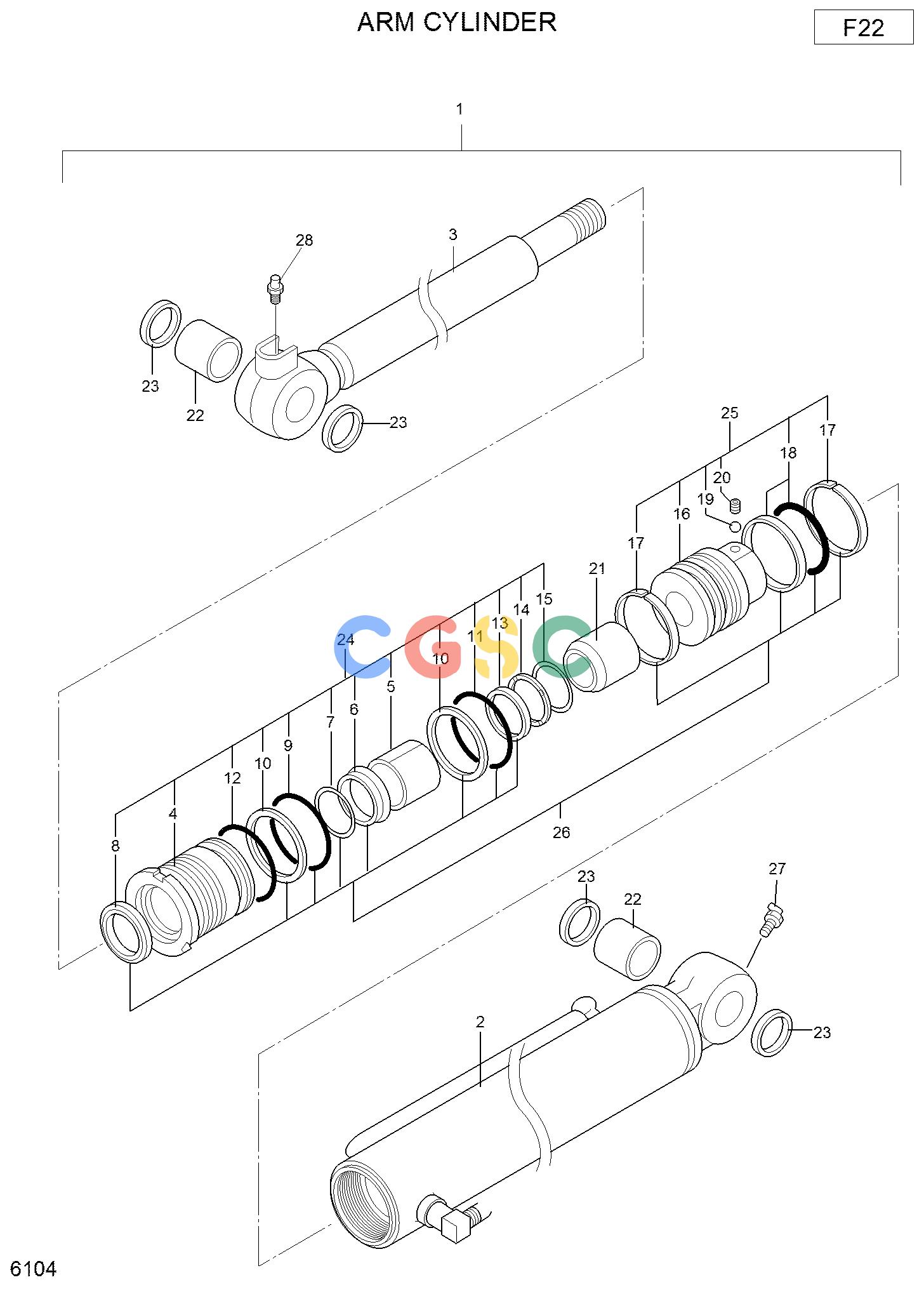

现代零件查询R22-7 ARM CYLINDEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03597
|
[1] |
ARM CYLINDER
|
|
| 2. |
XJDH-03598
|
[1] |
CYL TUBE ASSY
|
|
| 3. |
XJDH-03599
|
[1] |
PISTON ROD ASSY
|
|
| 4. |
XJDH-03600
|
[1] |
HEAD-CYLINDER
|
|
| 5. |
XJDH-03114
|
[1] |
BUSHING
|
|
| 6. |
XJDH-03115
|
[1] |
U-RING
|
|
| 7. |
XJDH-03116
|
[1] |
RING-BACK UP
|
|
| 8. |
XJDH-03117
|
[1] |
RING-WIPER
|
|
| 9. |
XJDH-03121
|
[1] |
O-RING
|
|
| 10. |
XJDH-03584
|
[2] |
RING-BACKUP
|
|
| 11. |
XJDH-03601
|
[1] |
O-RING
|
|
| 12. |
XJDH-03585
|
[1] |
O-RING
|
|
| 13. |
XJDH-03122
|
[1] |
RING-CUSHION
|
|
| 14. |
XJDH-03123
|
[1] |
SPACER
|
|
| 15. |
XJDH-03124
|
[1] |
STOPPER
|
|
| 16. |
XJDH-03602
|
[1] |
PISTON
|
|
| 17. |
XJDH-03590
|
[2] |
RING-SLIDE
|
|
| 18. |
XJDH-03591
|
[1] |
SEAL RING ASSY
|
|
| 19. |
XJDH-03128
|
[1] |
BALL-STEEL
|
|
| 20. |
XJDH-03129
|
[1] |
SCREW-SET
|
|
| 21. |
XJDH-03603
|
[1] |
BEARING-CUSHION
|
|
| 22. |
XJDH-02201
|
[2] |
BUSHING
|
|
| 23. |
XJDH-03604
|
[4] |
SEAL-DUST
|
|
| 24. |
XJDH-03605
|
[1] |
CYL HEAD ASSY
|
|
| 25. |
XJDH-03606
|
[1] |
PISTON ASSY
|
|
| 26. |
XJDH-03607
|
[1] |
PACKING
|
|
| 27. |
XJDH-00377
|
[1] |
NIPPLE-GREASE 90
|
|
| 28. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
