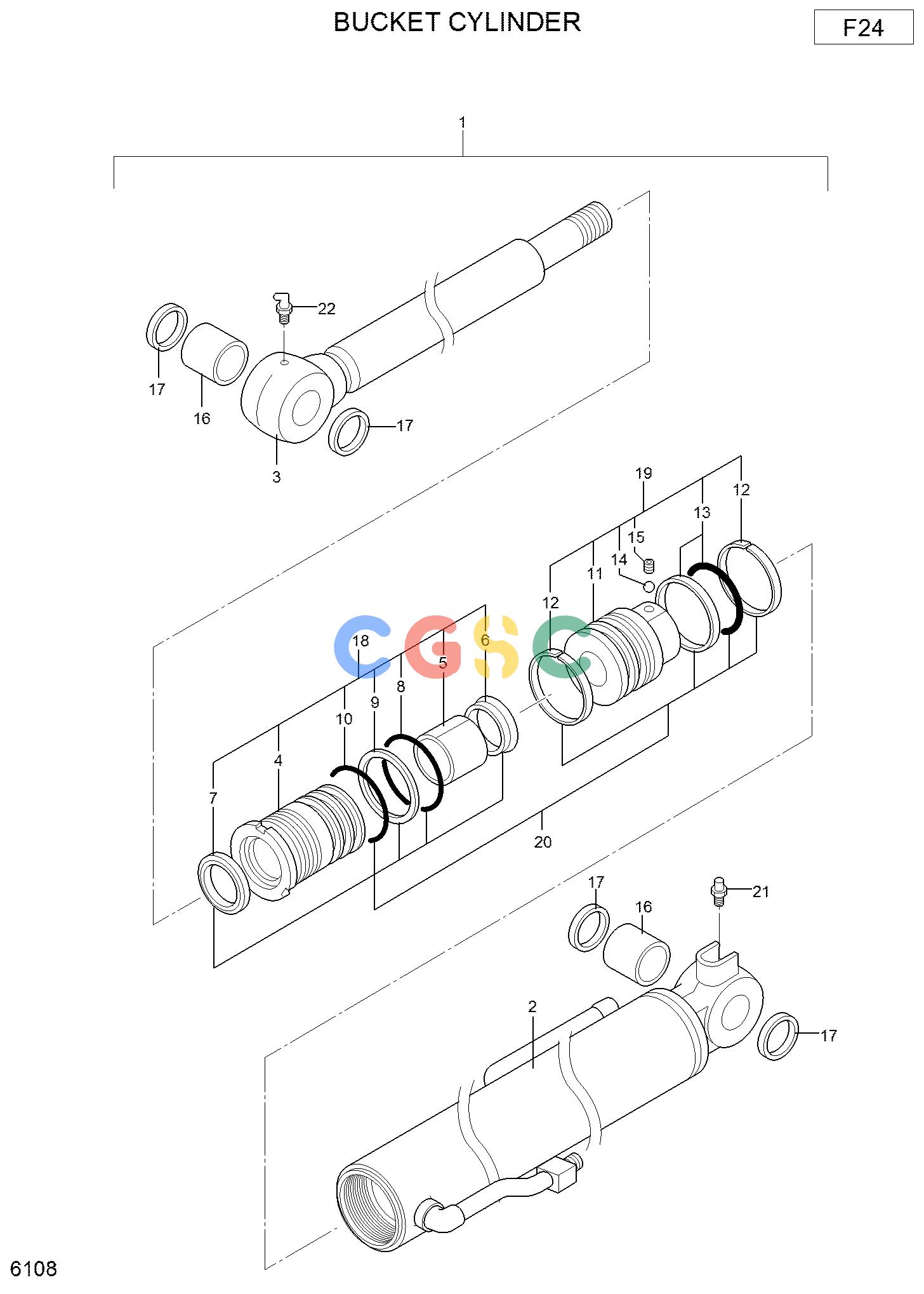

现代零件查询R22-7 BUCKET CYLINDEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
135 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03608
|
[1] |
BUCKET CYLINDER
|
|
| 2. |
XJDH-03609
|
[1] |
CYL TUBE ASSY
|
|
| 3. |
XJDH-03610
|
[1] |
PISTON ROD ASSY
|
|
| 4. |
XJDH-03611
|
[1] |
HEAD-CYLINDER
|
|
| 5. |
XJDH-03612
|
[1] |
BUSHING
|
|
| 6. |
XJDH-03115
|
[1] |
U-RING
|
|
| 7. |
XJDH-03613
|
[1] |
RING-WIPER
|
|
| 8. |
XJDH-03118
|
[1] |
O-RING
|
|
| 9. |
XJDH-03119
|
[1] |
RING-BACK UP
|
|
| 10. |
XJDH-03121
|
[1] |
O-RING
|
|
| 11. |
XJDH-03614
|
[1] |
PISTON
|
|
| 12. |
XJDH-03153
|
[2] |
RING-SLIDE
|
|
| 13. |
XJDH-03127
|
[1] |
RING ASSY-SEAL
|
|
| 14. |
XJDH-03128
|
[1] |
BALL-STEEL
|
|
| 15. |
XJDH-03129
|
[1] |
SCREW-SET
|
|
| 16. |
XJDH-02201
|
[2] |
BUSHING
|
|
| 17. |
XJDH-03132
|
[4] |
SEAL-DUST
|
|
| 18. |
XJDH-03615
|
[1] |
CYL HEAD ASSY
|
|
| 19. |
XJDH-03631
|
[1] |
PISTON ASSY
|
|
| 20. |
XJDH-03632
|
[1] |
PACKING
|
|
| 21. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
| 22. |
XJDH-00377
|
[1] |
NIPPLE-GREASE 90
|
|
