沃尔沃零件查询TAMD122A; TMD122A; TAMD122P-A; TAMD122P-B; TAMD122P-C; TMD122A/C; TAMD122AFElectrical SystemSupervising Equipment. ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
551 次

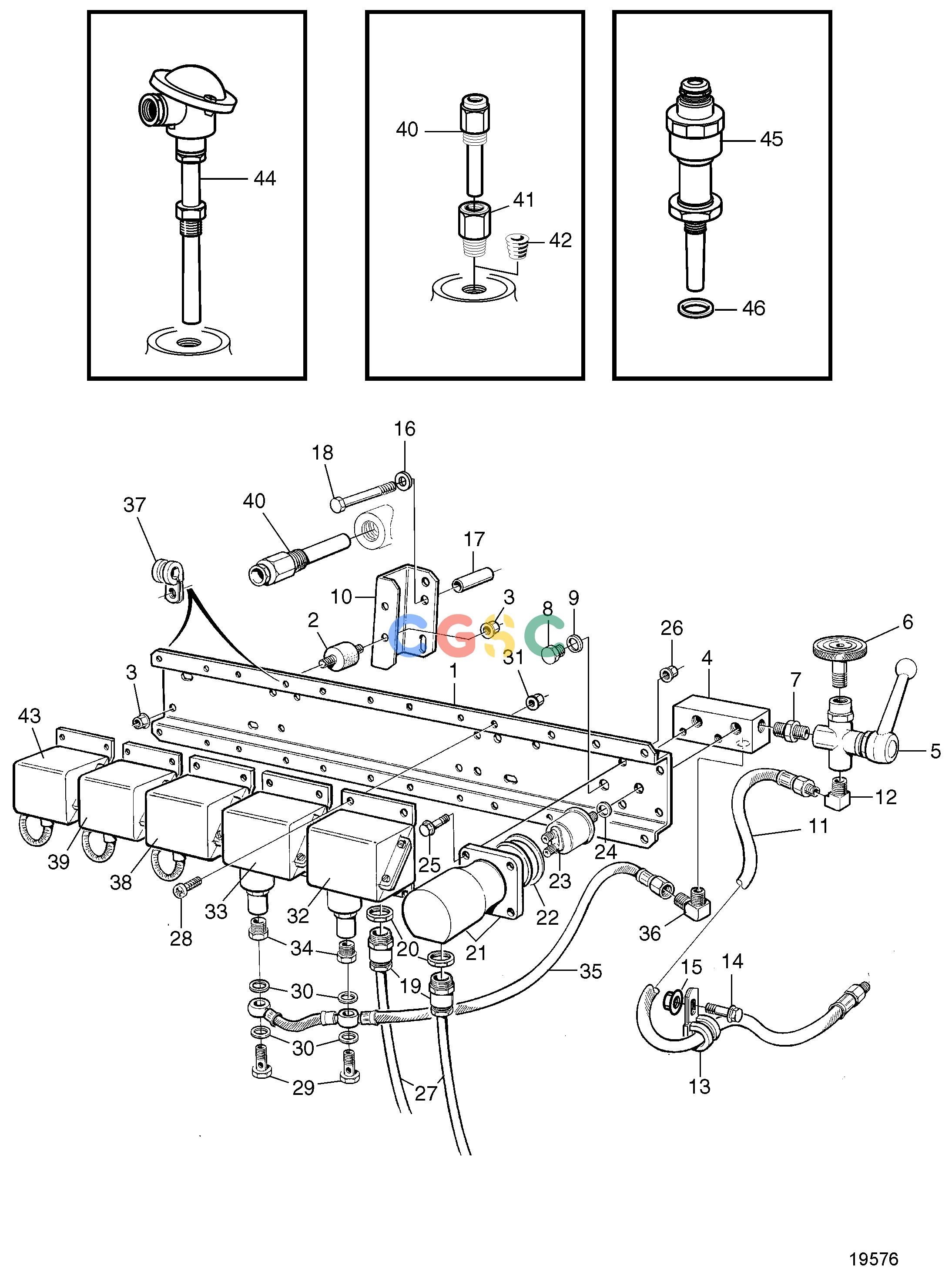

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
863415
|
[4] |
Rubber cushion
|
|
| 3. |
948645
|
[8] |
Flange lock nut
|
|
| 4. |
866704
|
[1] |
Bracket
|
|
| 5. |
3826337
|
[1] |
Valve
|
|
| 6. |
3826310
|
[1] |
Flange
|
|
| 7. |
191095
|
[1] |
Nipple
|
|
| 8. |
479979
|
[1] |
Plug
|
|
| 9. |
18665
|
[1] |
Gasket
|
|
| 10. |
3826000
|
[2] |
Bracket
|
|
| 11. |
3826006
|
[1] |
Hose
|
|
| 12. |
957106
|
[1] |
Elbow nipple
|
|
| 13. |
952627
|
[1] |
Clamp
|
|
| 14. |
946544
|
[1] |
Flange screw
|
|
| 15. |
949278
|
[2] |
Flange lock nut
|
|
| 16. |
955899
|
[4] |
Washer
|
|
| 17. |
845884
|
[4] |
Spacer sleeve
|
|
| 18. |
970964
|
[4] |
Hexagon screw
|
|
| 19. |
881191
|
[6] |
Grommet
|
|
| 20. |
880244
|
[1] |
Nut
|
|
| 21. |
849670
|
[1] |
Protecting casing
|
|
| 22. |
843584
|
[1] |
Gasket
|
|
| 23. |
|
|
|
See group 30
|
| 24. |
|
|
|
See group 30
|
| 25. |
945444
|
[4] |
Flange screw
|
|
| 26. |
963106
|
[4] |
Lock nut
|
|
| 27. |
874854
|
[1] |
Power cable
|
Non reinforced ship cable approved by classification societies., 2x1,5mm²
|
| 28. |
956093
|
[20] |
Cross recessed screw
|
|
| 29. |
48634
|
[2] |
Hollow screw
|
|
| 30. |
907132
|
[4] |
Gasket
|
|
| 31. |
949278
|
[20] |
Flange lock nut
|
|
| 32. |
873713
|
[1] |
Pressure monitor, engine oil alarm
|
2,0 bar
|
| 33. |
873713
|
[1] |
Pressure monitor, engine oil auto stop
|
1,5 bar
|
| 34. |
3826034
|
[2] |
Nipple
|
|
| 35. |
3826001
|
[1] |
Hose
|
|
| 36. |
957106
|
[1] |
Elbow nipple
|
|
| 37. |
952627
|
[2] |
Clamp
|
|
| 38. |
873714
|
[1] |
Thermo monitor, coolant alarm
|
92°C
|
| 38. |
874178
|
[1] |
Thermometer, exhaust
|
|
| 39. |
873714
|
[1] |
Thermo monitor, coolant auto stop
|
98°C
|
| 40. |
873715
|
[3] |
Sleeve
|
|
| 41. |
981426
|
[1] |
Reduction nipple
|
|
| 42. |
|
|
|
|
| 43. |
873714
|
[1] |
Thermo monitor
|
|
| 44. |
3829871
|
[1] |
Temperature sensor
|
|
| 45. |
874179
|
[1] |
Temperature sensor
|
|
| 46. |
947626
|
[1] |
Gasket
|
|
