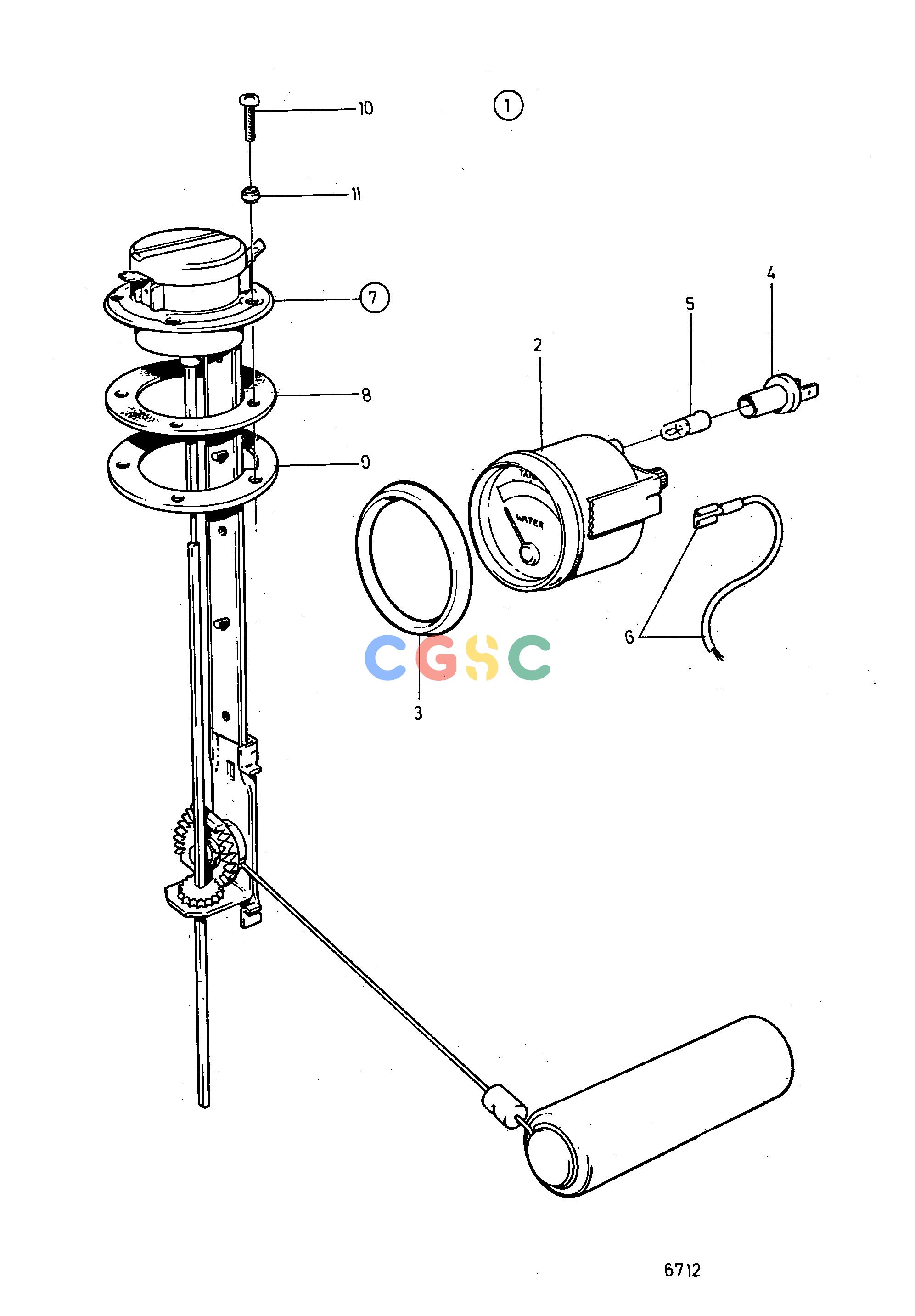

沃尔沃零件查询TAMD122A; TMD122A; TAMD122P-A; TAMD122P-B; TAMD122P-C; TMD122A/C; TAMD122AFElectrical SystemTank Meter Kit for Fuel and Fresh Water, 12V: FRESH WATEREPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
231 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
24V
|
| 2. |
863943
|
[1] |
Level gauge
|
|
| 3. |
858643
|
[1] |
Front ring
|
|
| 4. |
808175
|
[1] |
Bulb socket
|
|
| 5. |
182059
|
[1] |
Bulb
|
|
| 6. |
7746700_197
|
|
electrical materials
|
|
| 7. |
834389
|
[1] |
Tank sensor
|
|
| 8. |
89865
|
[1] |
Gasket
|
|
| 9. |
834480
|
[1] |
Flange
|
|
| 10. |
956078
|
[4] |
Cross recessed screw
|
|
| 10. |
956081
|
[1] |
Cross recessed screw
|
|
| 11. |
834481
|
[5] |
Gasket
|
|
