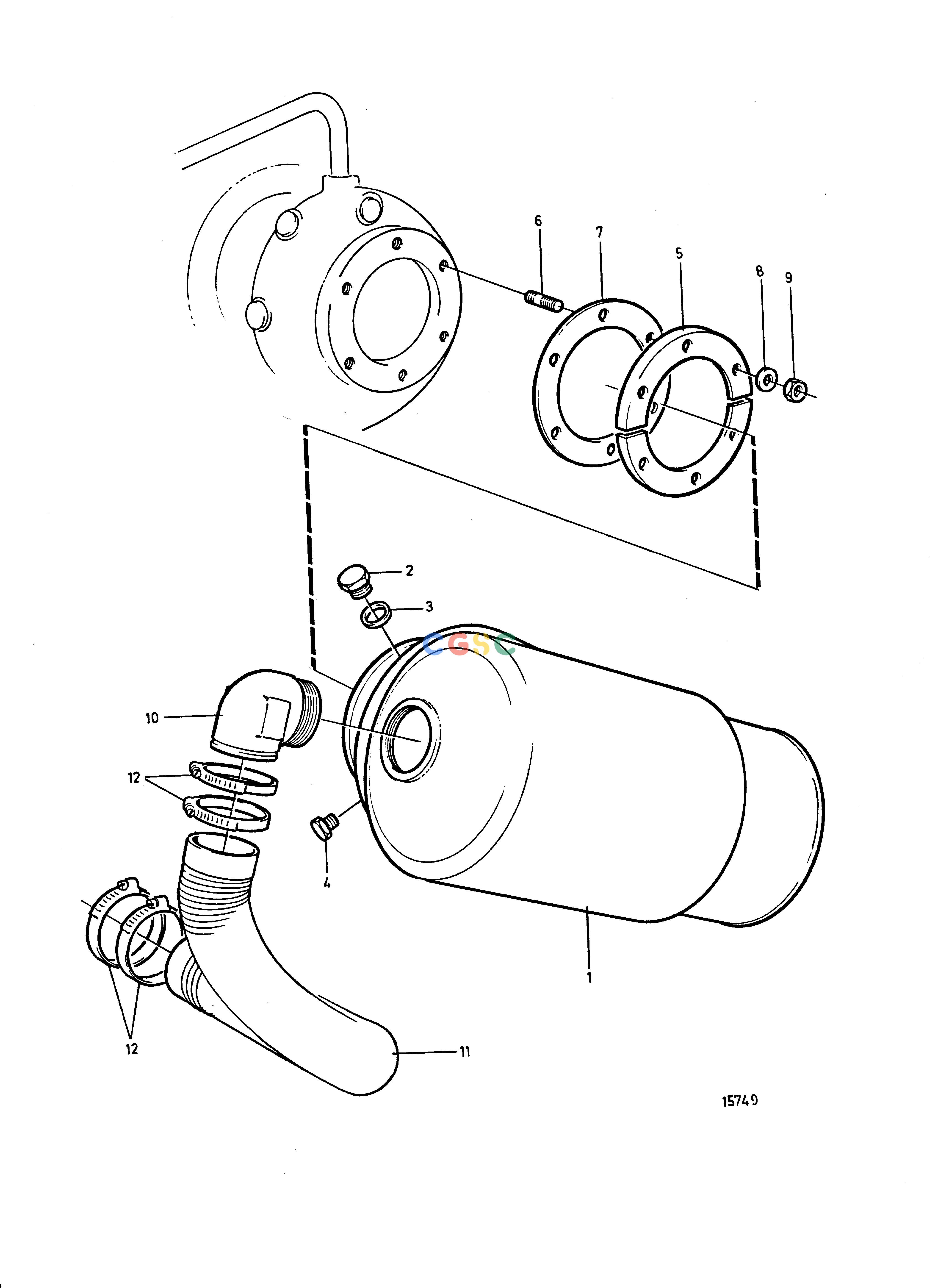

沃尔沃零件查询TAMD122A; TMD122A; TAMD122P-A; TAMD122P-B; TAMD122P-C; TMD122A/C; TAMD122AFIntake and Exhaust SystemWet Exhaust Line 7'' (175mm)EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863349
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
914392
|
[1] |
Plug
|
|
| 3. |
947626
|
[1] |
Gasket
|
|
| 4. |
479979
|
[1] |
Plug
|
(191026)
|
| 5. |
863442
|
[2] |
Flange
|
|
| 6. |
479972
|
[6] |
Stud
|
(924079)
|
| 7. |
863353
|
[1] |
Gasket
|
|
| 8. |
941908
|
[6] |
Spring washer
|
|
| 9. |
943927
|
[6] |
Hexagon nut
|
|
| 10. |
813644
|
[1] |
Hose attachment
|
|
| 11. |
343849
|
[1] |
Radiator hose
|
|
| 12. |
961672
|
[4] |
Hose clamp
|
|
