沃尔沃零件查询TAMD122A; TMD122A; TAMD122P-A; TAMD122P-B; TAMD122P-C; TMD122A/C; TAMD122AFTransmissionsConnecting Components for Twin Disc MG5091SC, Twin Disc MG5091DC: MG5091DCEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
891 次

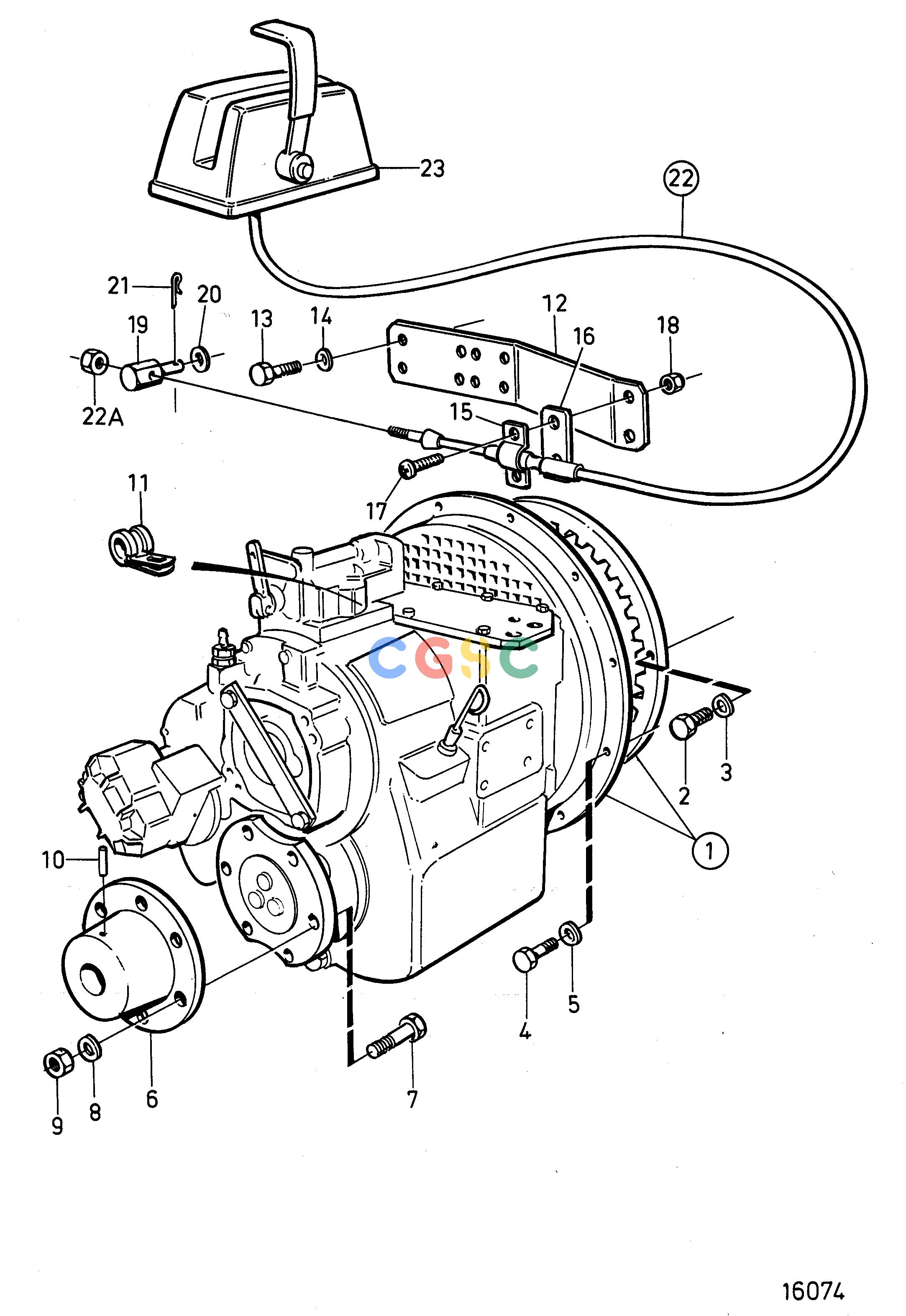

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 4.50:1
|
| 2. |
955560
|
[8] |
Hexagon screw
|
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
940134
|
[12] |
Hexagon screw
|
|
| 5. |
941909
|
[12] |
Spring washer
|
|
| 6. |
837093
|
[1] |
Clutch flange
|
|
| 7. |
955774
|
[8] |
Hexagon screw
|
|
| 8. |
941917
|
[8] |
Spring washer
|
|
| 9. |
950381
|
[8] |
Lock nut
|
|
| 10. |
907661
|
[2] |
Taper pin
|
|
| 11. |
949746
|
[1] |
Clamp
|
For cable, oil pressure sensor.
|
| 12. |
863123
|
[1] |
Bracket
|
|
| 13. |
955524
|
[2] |
Hexagon screw
|
|
| 14. |
941907
|
[2] |
Spring washer
|
|
| 15. |
21471054
|
[1] |
Bracket
|
For control cable type 333.
|
| 15. |
6853782
|
[1] |
Cable clamp
|
For control cable type 443.
|
| 16. |
819068
|
[1] |
Washer
|
|
| 17. |
956079
|
[2] |
Cross recessed screw
|
|
| 18. |
963104
|
[2] |
Lock nut
|
|
| 19. |
853217
|
[1] |
Cube
|
|
| 20. |
940191
|
[1] |
Washer
|
|
| 21. |
907824
|
[1] |
Split pin
|
|
| 22. |
|
|
|
See group 27
|
| 22A. |
|
|
|
|
| 23. |
|
|
|
See group 27
|
