斗山零件查询SWING DEVICE SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
734 次

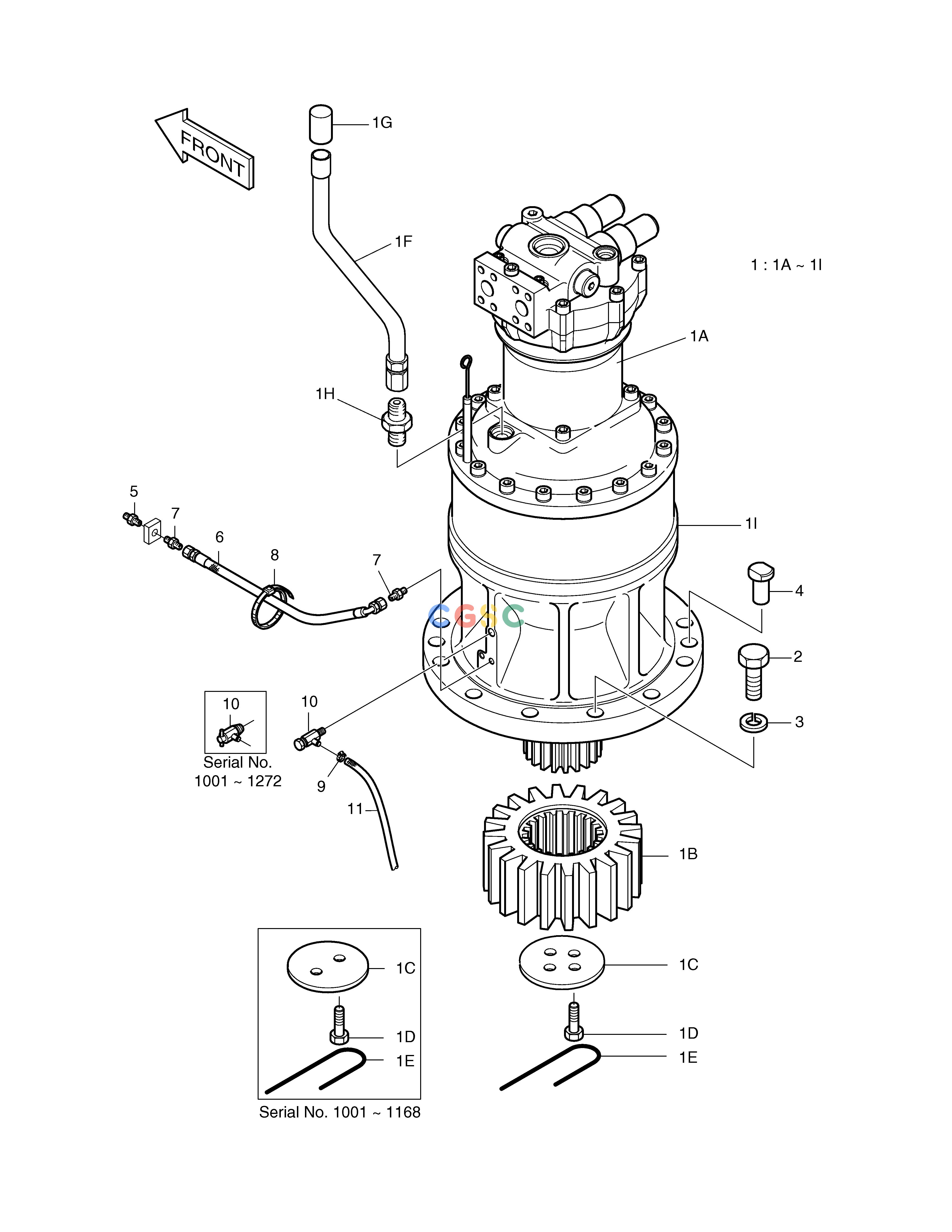

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-1245A
|
[-] |
SWING DEVICE ASS'Y
|
|
| 1. |
2401-1266A
|
[1] |
SWING DEVICE SUB ASS'Y
|
2401-1266B
|
| 1. |
2401-1266B
|
[1] |
SWING DEVICE SUB ASS'Y
|
2401-1266C
|
| 1. |
2401-1266C
|
[1] |
SWING DEVICE SUB ASS'Y
|
2401-1266E
|
| 1. |
2401-1266E
|
[1] |
SWING DEVICE SUB ASS'Y
|
2401-1266G
|
| 1. |
2401-1266G
|
[1] |
SWING DEVICE SUB ASS'Y
|
2401-1266H
|
| 1. |
2401-1266H
|
[1] |
SWING DEVICE SUB ASS'Y
|
|
| 10. |
2186-9001
|
[1] |
COCK
|
|
| 10. |
2186-9003
|
[1] |
VALVE
|
186-00013
|
| 10. |
186-00013
|
[1] |
. COCK
|
|
| 11. |
2184-9086
|
[1] |
HOSE;VINYL
|
|
| 11. |
184-00016
|
[1] |
HOSE
|
|
| 1A. |
2401-9291
|
[1] |
MOTOR;SWING
|
2401-9309A
|
| 1A. |
2401-9309A
|
[1] |
MOTOR;SWING
|
|
| 1B. |
2404-1065
|
[1] |
GEAR;PINION
|
|
| 1C. |
2403-1046
|
[1] |
COVER
|
|
| 1C. |
2403-1046A
|
[1] |
COVER
|
|
| 1D. |
2120-1340A
|
[2] |
BOLT M16X2.0X35
|
|
| 1D. |
2120-1363
|
[4] |
BOLT
|
|
| 1E. |
2126-9001
|
[1] |
WIRE
|
|
| 1E. |
2126-9001
|
[2] |
WIRE
|
|
| 1F. |
2182-1706A
|
[1] |
PIPE
|
|
| 1G. |
2119-1063A
|
[1] |
CAP
|
|
| 1H. |
2181-1110D10
|
[1] |
ADAPTER
|
|
| 1I. |
2401-9279
|
[1] |
GEAR;REDUCTION
|
2401-9279A
|
| 1I. |
2401-9279A
|
[1] |
GEAR;REDUCTION
|
404-00094
|
| 1I. |
404-00094
|
[1] |
GEAR;REDUCTION
|
|
| 2. |
S0774761
|
[12] |
BOLT M24X2.0X70
|
S0774766
|
| 2. |
S0774766
|
[12] |
BOLT M24X2.0X70
|
|
| 3. |
2114-1831
|
[12] |
WASHER;HARDEN
|
2114-1831A
|
| 3. |
2114-1831A
|
[12] |
. WASHER
|
|
| 4. |
2123-1717A
|
[2] |
PIN;KNOCK
|
2123-1717B
|
| 4. |
2123-1717B
|
[2] |
PIN;KNOCK
|
|
| 5. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
| 6. |
2184-1046D114
|
[1] |
HOSE PF1/4-1350L
|
|
| 7. |
2181-4112
|
[2] |
ADAPTER
|
|
| 8. |
2124-1084D3
|
[2] |
CLIP;BAND
|
|
| 9. |
S8450006
|
[1] |
CLAMP
|
|
| 9. |
S8450012
|
[1] |
CLAMP
|
|
