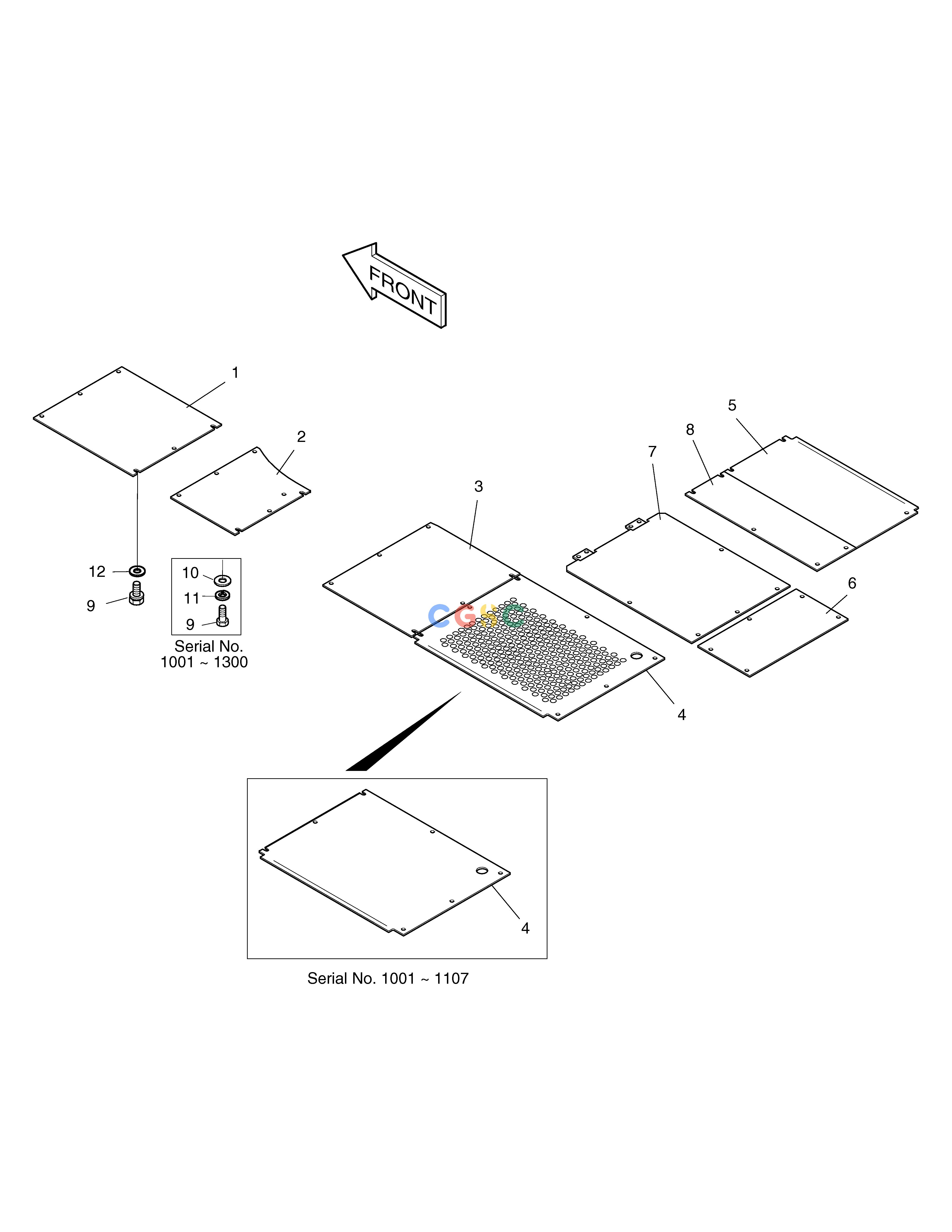

斗山零件查询UNDER COVER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2627-1059A
|
[-] |
UNDER COVER ASS'Y
|
|
| 1. |
2627-1052
|
[1] |
COVER
|
|
| 10. |
2114-1058D10
|
[48] |
WASHER
|
|
| 11. |
S5102603
|
[48] |
. WASHER
|
|
| 12. |
2114-1058D10
|
[48] |
WASHER
|
|
| 2. |
2627-1053
|
[1] |
COVER
|
|
| 3. |
2627-1054
|
[1] |
COVER
|
|
| 4. |
2627-1055A
|
[1] |
COVER
|
621-00305A
|
| 4. |
621-00305A
|
[1] |
COVER
|
|
| 5. |
2627-1056A
|
[1] |
COVER
|
|
| 6. |
2627-1057A
|
[1] |
COVER
|
|
| 7. |
2627-1058
|
[1] |
COVER
|
|
| 8. |
2627-1233
|
[1] |
COVER
|
|
| 9. |
S0511853
|
[48] |
BOLT
|
|
| 9. |
2120-2196D2
|
[48] |
BOLT;SET M10X1.5X25
|
|
| 9. |
2120-2196D13
|
[48] |
BOLT;SET M10X1.5X25
|
|
