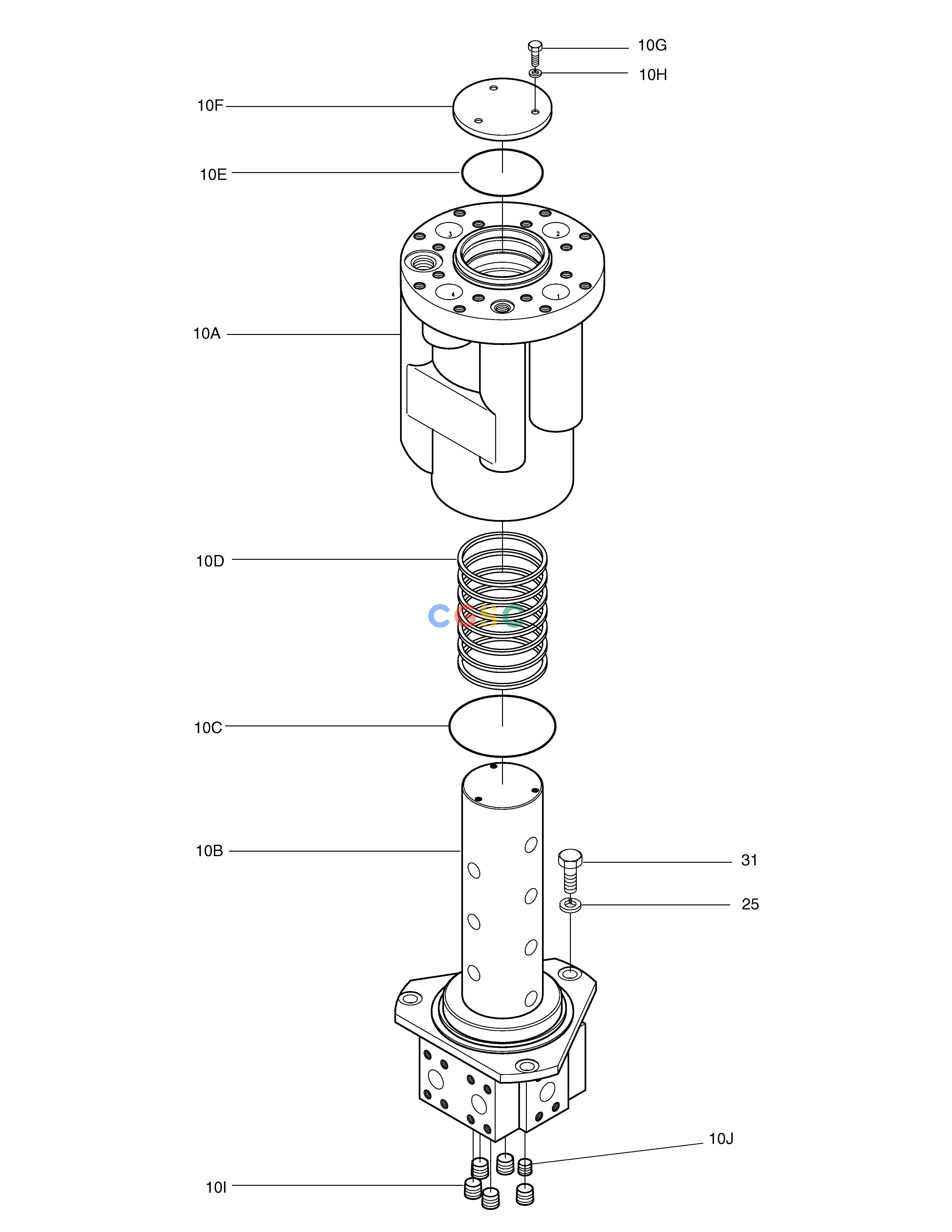

斗山零件查询CENTER JOINT SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
977 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2480-9405BKT
|
[1] |
SEAL KIT;CENTER JOINT
|
|
| -. |
2604-1378B
|
[-] |
TRACK ASS'Y
|
|
| -. |
2604-1378A
|
[-] |
TRACK ASS'Y
|
|
| 10. |
2480-9405B
|
[1] |
JOINT;CENTER
|
|
| 10A. |
03C271-2
|
[1] |
BODY
|
|
| 10B. |
03C272-4
|
[1] |
SPINDLE
|
|
| 10C. |
E6301581
|
[1] |
O-RING
|
|
| 10D. |
E5430420
|
[6] |
SEAL;SLIPPER
|
|
| 10E. |
E6490049
|
[1] |
O-RING
|
|
| 10F. |
03C273-1
|
[1] |
COVER
|
|
| 10G. |
E0020335
|
[3] |
BOLT;HEX M8X1.25X16
|
|
| 10H. |
E3110092
|
[3] |
WASHER;SPRING
|
|
| 10I. |
E1500050
|
[5] |
PLUG;HEX SOCKET
|
|
| 10J. |
E1500030
|
[1] |
PLUG
|
|
| 25. |
S5102901
|
[3] |
. WASHER;SPRING
|
|
| 31. |
S0521251
|
[3] |
BOLT M16X2.0X30
|
|
| 31. |
S0521261
|
[3] |
BOLT M16X2.0X30
|
|
