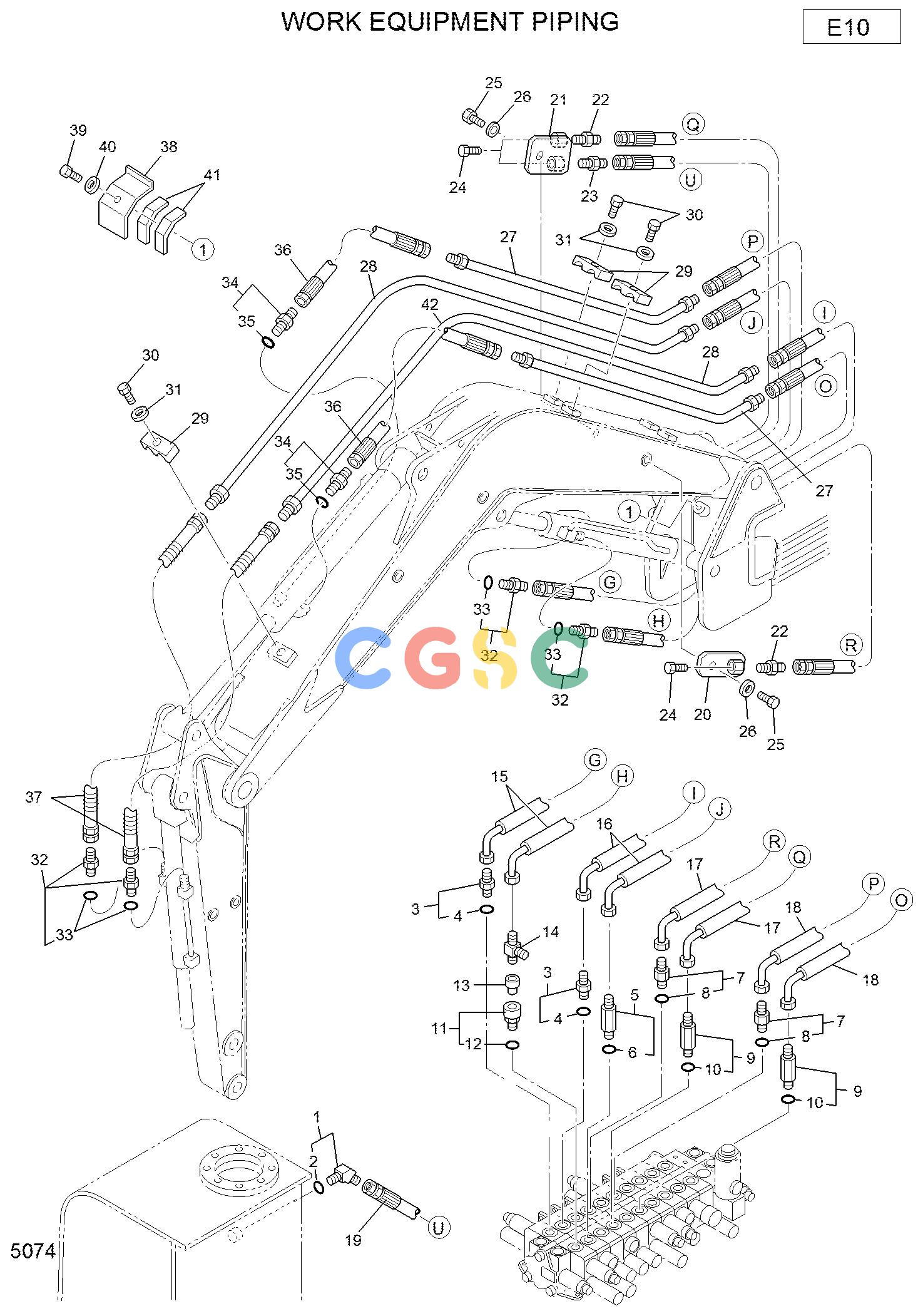

现代零件查询R22-7 WORK EQUIPMENT PIPINGEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-00466
|
[1] |
ELBOW-MALE 45,O-RING
|
|
| 2. |
XJDH-00334
|
[1] |
O-RING
|
|
| 3. |
XJDH-00449
|
[2] |
NIPPLE-HOSE
|
|
| 4. |
XJDH-00331
|
[1] |
O-RING
|
|
| 5. |
XJDH-00448
|
[1] |
NIPPLE-HOSE
|
|
| 6. |
XJDH-00331
|
[1] |
O-RING
|
|
| 7. |
XJDH-00452
|
[2] |
CONNECTOR-MALE
|
|
| 8. |
XJDH-00331
|
[1] |
O-RING
|
|
| 9. |
XJDH-00451
|
[2] |
CONNECTOR-MALE LONG
|
|
| 10. |
XJDH-00331
|
[1] |
O-RING
|
|
| 11. |
XJDH-03422
|
[1] |
BUSHING
|
|
| 12. |
XJDH-00331
|
[1] |
O-RING
|
|
| 13. |
XJDH-03423
|
[1] |
BUSHING
|
|
| 14. |
XJDH-00436
|
[1] |
TEE
|
|
| 15. |
XJDH-03424
|
[2] |
HOSE
|
|
| 16. |
XJDH-03425
|
[2] |
HOSE
|
|
| 17. |
XJDH-03426
|
[2] |
HOSE
|
|
| 18. |
XJDH-03427
|
[2] |
HOSE
|
|
| 19. |
XJDH-03428
|
[1] |
HOSE
|
|
| 20. |
XJDH-03429
|
[1] |
MANIFOLD ASSY(L)
|
|
| 21. |
XJDH-03430
|
[1] |
MANIFOLD ASSY(R)
|
|
| 22. |
XJDH-00421
|
[2] |
NIPPLE-HOSE
|
|
| 23. |
XJDH-00422
|
[1] |
CONNECTOR
|
|
| 24. |
XJDH-00385
|
[3] |
PLUG
|
|
| 25. |
XJDH-00035
|
[2] |
BOLT
|
|
| 26. |
XJDH-00276
|
[2] |
WASHER
|
|
| 27. |
XJDH-03431
|
[2] |
PIPE-ARM
|
|
| 28. |
XJDH-03432
|
[1] |
PIPE-BUCKET
|
|
| 29. |
XJDH-00845
|
[5] |
CLAMP-PIPE
|
|
| 30. |
XJDH-02882
|
[5] |
BOLT
|
|
| 31. |
XJDH-00278
|
[5] |
WASHER
|
|
| 32. |
XJDH-00445
|
[4] |
CONNECTOR-MALE
|
|
| 33. |
XJDH-00328
|
[1] |
O-RING
|
|
| 34. |
XJDH-00452
|
[2] |
CONNECTOR-MALE
|
|
| 35. |
XJDH-00331
|
[1] |
O-RING
|
|
| 36. |
XJDH-03433
|
[2] |
HOSE
|
|
| 37. |
XJDH-03434
|
[2] |
HOSE
|
|
| 38. |
XJDH-03435
|
[1] |
COVER-HOSE
|
|
| 39. |
XJDH-00144
|
[2] |
BOLT
|
|
| 40. |
XJDH-00278
|
[2] |
WASHER
|
|
| 41. |
XJDH-03436
|
[2] |
PLATE-RUBBER
|
|
| 42. |
XJDH-03437
|
[1] |
PIPE-BUCKET
|
|
